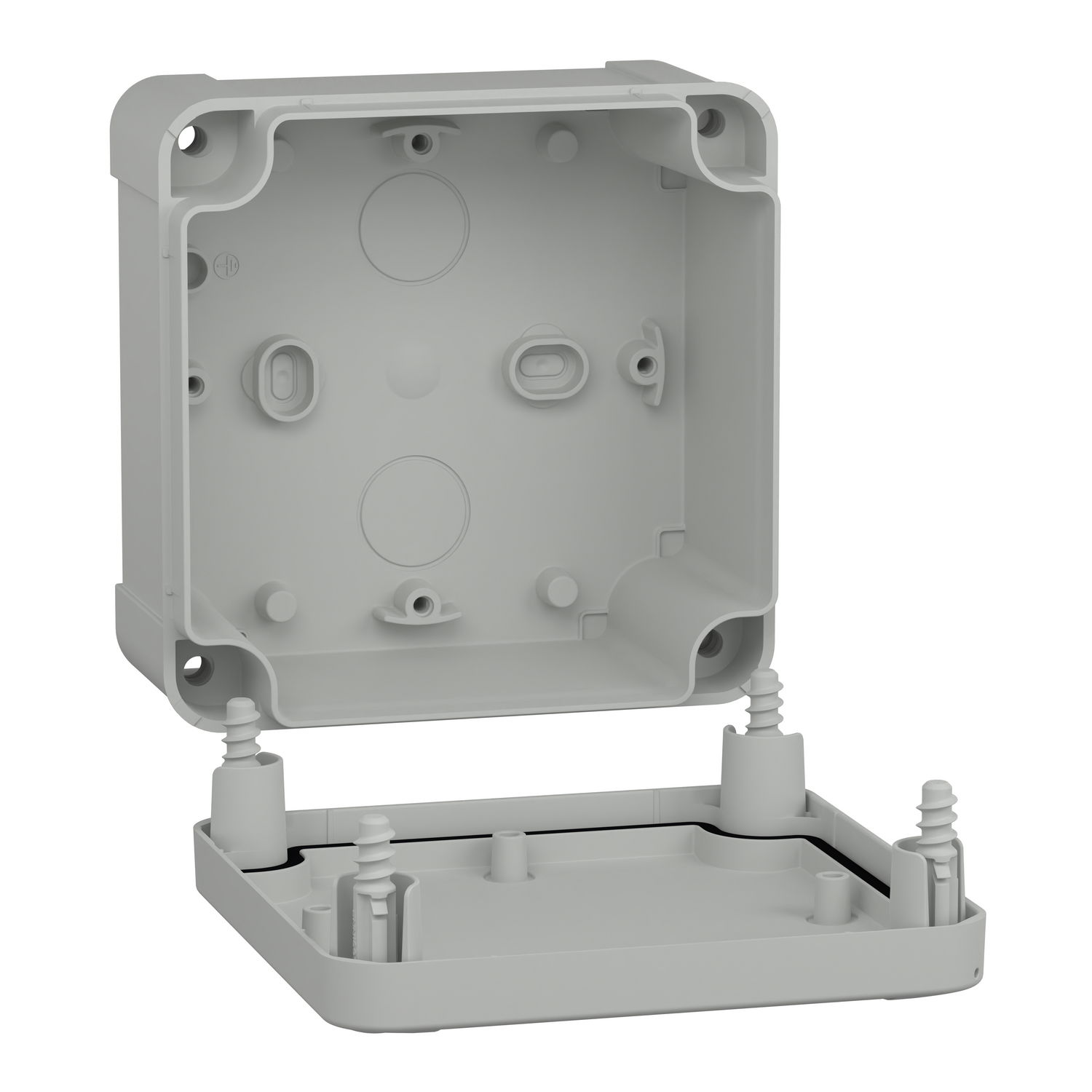

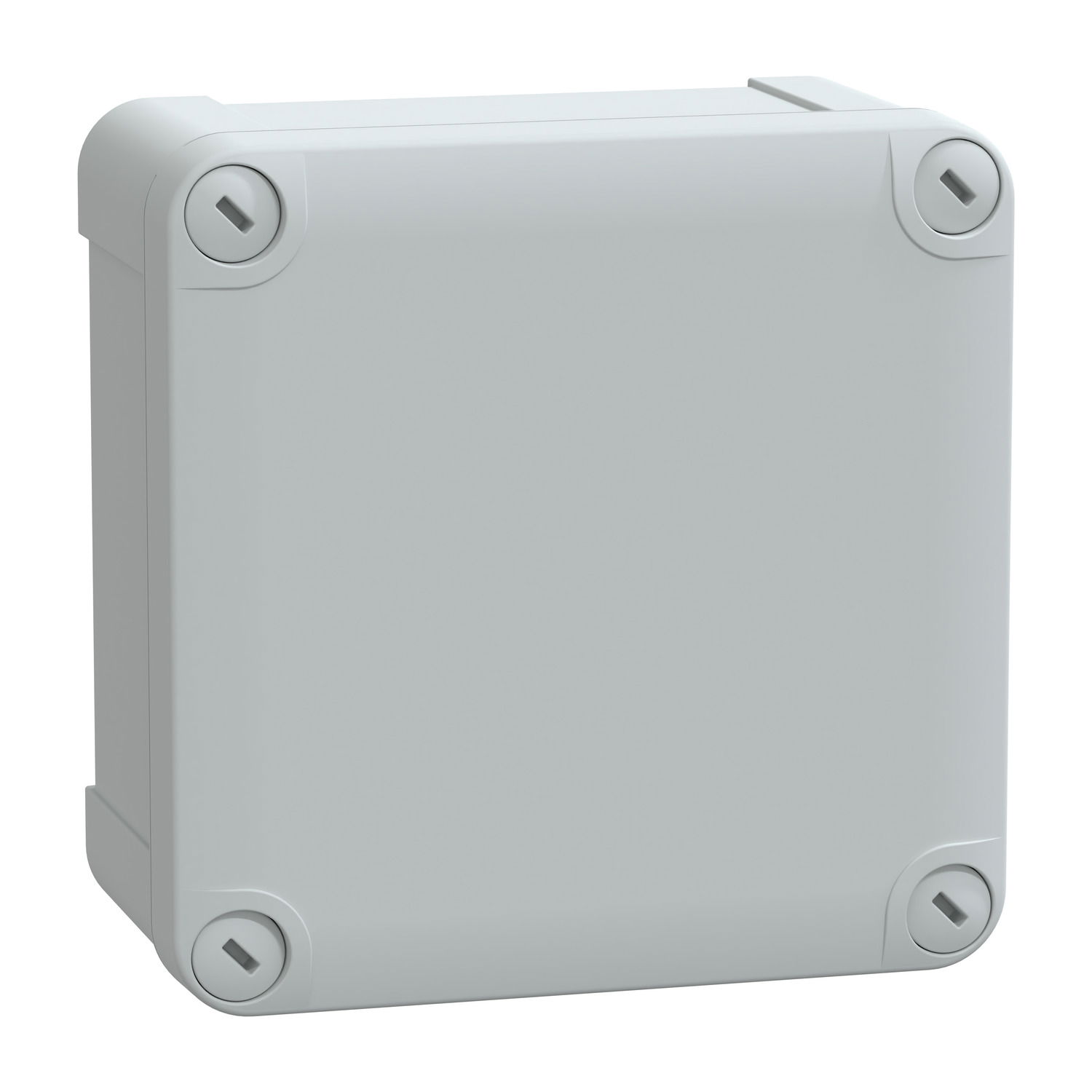

PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10
Thalassa TBP industrial PC box with opaque PC cover H10. Int is 105 x 105 x 55 mm. Ext is 116 x 116 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Product identifiers
SKU: NSYTBP11116
EAN: 3606480165610
GTIN: 3606480165610
MPN: NSYTBP11116
Loyalty points:
4
Price range: £ 9.43 - £ 10.58 Excl. VAT
Categories
Features
|
Depth
|
62 mm
|
|
Width
|
116 mm
|
|
Colour
|
Grey
|
|
Height
|
116 mm
|
|
With lock
|
FALSE
|
|
RAL-number
|
7035
|
|
Cover model
|
Closed
|
|
Inner depth
|
55 mm
|
|
Type of door
|
None
|
|
Built-in depth
|
-
|
|
Number of rows
|
-
|
|
Impact strength
|
IK08
|
|
Mounting method
|
Surface mounted
|
|
Housing material
|
Plastic
|
|
Type of covering
|
Cover
|
|
Circuit integrity
|
None
|
|
Number of modules
|
-
|
|
Extension possible
|
FALSE
|
|
Surface protection
|
Untreated
|
|
With mounting plate
|
FALSE
|
|
Nominal current (In)
|
-
|
|
Transparent cover/door
|
FALSE
|
|
Number of conduit inlets
|
-
|
|
Suitable for outdoor use
|
TRUE
|
|
Degree of protection (IP)
|
IP66
|
|
Degree of protection (NEMA)
|
4X
|
|
Cover with overpressure release
|
-
|
|
Material plate thickness cabinet
|
-
|
|
Suitable for lightning protection
|
-
|
|
Material plate thickness door/cover
|
-
|
|
Width in number of modular spacings
|
-
|
|
Number of openings for flange plates
|
-
|
|
Protection class according to IEC 61140
|
II
|
