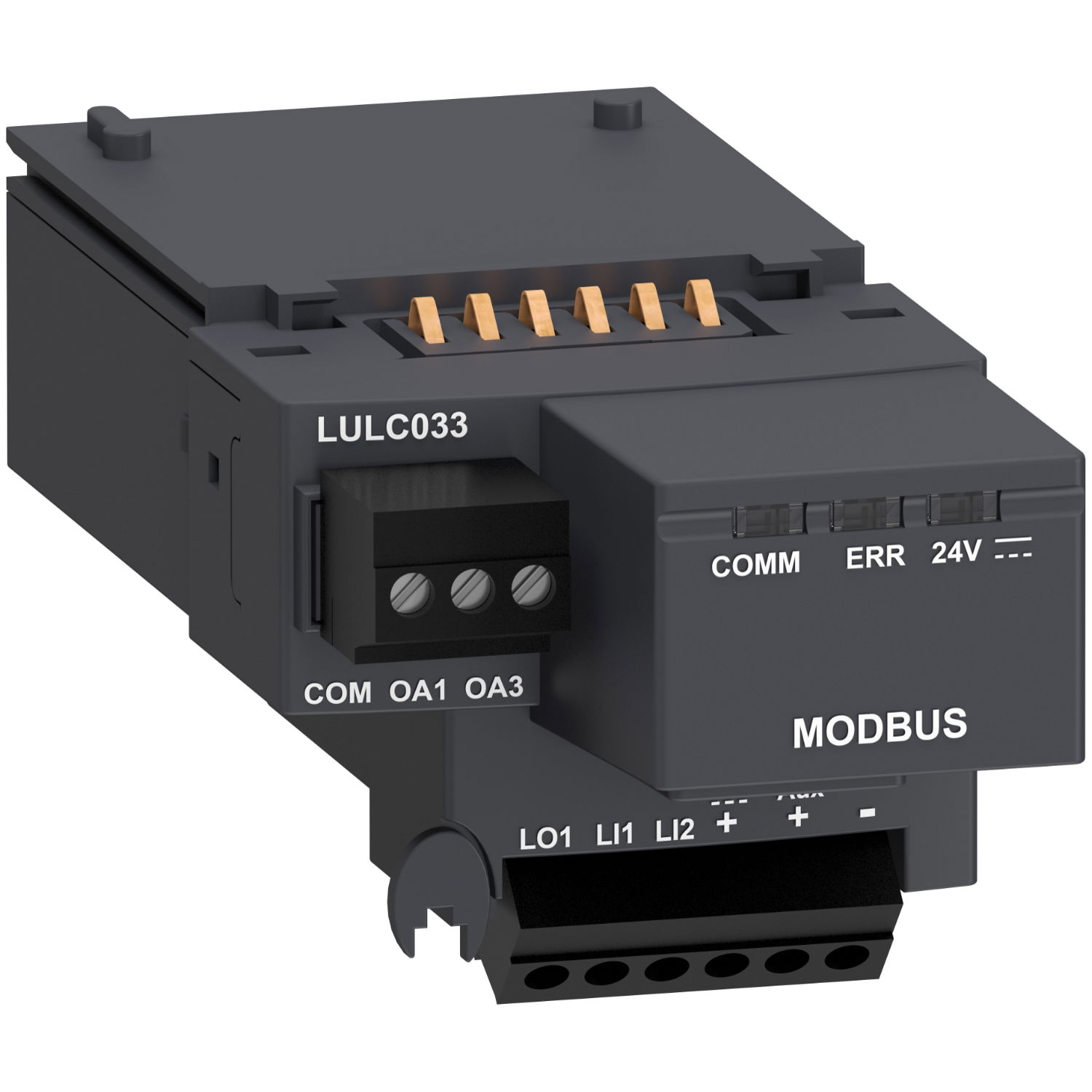

Communication module - for TeSys U - 24 V DC
TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: LULC033
EAN: 3389119202091
GTIN: 3389119202091
MPN: LULC033
Loyalty points: 56
Price range: £ 90.40 - £ 141.55 Excl. VAT
Categories
Features
|
Depth
|
95 mm
|
|
Width
|
45 mm
|
|
Height
|
45 mm
|
|
IO link master
|
FALSE
|
|
System accessory
|
TRUE
|
|
Supply voltage DC
|
|
|
Radio standard GSM
|
FALSE
|
|
Radio standard LTE
|
FALSE
|
|
Radio standard GPRS
|
FALSE
|
|
Radio standard UMTS
|
FALSE
|
|
Radio standard eGPRS
|
FALSE
|
|
Rack-assembly possible
|
FALSE
|
|
Front built-in possible
|
TRUE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Radio standard Bluetooth
|
FALSE
|
|
Degree of protection (IP)
|
IP20
|
|
With potential separation
|
TRUE
|
|
Radio standard WLAN 802.11
|
FALSE
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
FALSE
|
|
Number of HW-interfaces CAN
|
-
|
|
Number of HW-interfaces USB
|
-
|
|
Supporting protocol for ASI
|
FALSE
|
|
Supporting protocol for CAN
|
FALSE
|
|
Supporting protocol for KNX
|
FALSE
|
|
Supporting protocol for LON
|
FALSE
|
|
Number of HW-interfaces other
|
-
|
|
Number of interfaces PROFINET
|
-
|
|
Suitable for safety functions
|
FALSE
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
FALSE
|
|
Number of HW-interfaces RS-232
|
-
|
|
Number of HW-interfaces RS-422
|
-
|
|
Number of HW-interfaces RS-485
|
-
|
|
Supporting protocol for Modbus
|
TRUE
|
|
Supporting protocol for SERCOS
|
FALSE
|
|
Supporting protocol for TCP/IP
|
FALSE
|
|
Supporting protocol for SUCONET
|
FALSE
|
|
Number of HW-interfaces parallel
|
-
|
|
Number of HW-interfaces wireless
|
-
|
|
Supporting protocol for EtherCAT
|
FALSE
|
|
Supporting protocol for INTERBUS
|
FALSE
|
|
Supporting protocol for PROFIBUS
|
FALSE
|
|
Appendant operation agent (Ex ia)
|
FALSE
|
|
Appendant operation agent (Ex ib)
|
FALSE
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
FALSE
|
|
Supporting protocol for PROFIsafe
|
FALSE
|
|
Explosion safety category for dust
|
None
|
|
Number of HW-interfaces serial TTY
|
-
|
|
Supporting protocol for EtherNet/IP
|
TRUE
|
|
Supporting protocol for PROFINET IO
|
FALSE
|
|
Supporting protocol for SafetyBUS p
|
FALSE
|
|
Supporting protocol for Data-Highway
|
FALSE
|
|
Supporting protocol for PROFINET CBA
|
FALSE
|
|
Supporting protocol for INTERBUS-Safety
|
FALSE
|
|
Supporting protocol for DeviceNet Safety
|
FALSE
|
|
Supporting protocol for other bus systems
|
FALSE
|
|
Certified for UL hazardous location class I
|
-
|
|
Number of HW-interfaces industrial Ethernet
|
-
|
|
Supporting protocol for Foundation Fieldbus
|
FALSE
|
|
Certified for UL hazardous location class II
|
-
|
|
Certified for UL hazardous location class III
|
-
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
-
|
|
Certified for UL hazardous location division 2
|
-
|
|
Supporting protocol for AS-Interface Safety at Work
|
FALSE
|
|
Certified for UL hazardous location group D (propane)
|
-
|
|
Certified for UL hazardous location group B (hydrogen)
|
-
|
|
Certified for UL hazardous location group C (ethylene)
|
-
|
|
Fieldbus connection over separate bus coupler possible
|
FALSE
|
|
Certified for UL hazardous location group A (acetylene)
|
-
|
|
Certified for UL hazardous location group E (metal dusts)
|
-
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
-
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
-
|
