Dimmable	No
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
No-load proof	Yes
Max. cable length to lamp/LED module	0,8 m
Suitable for fixtures with prot. class	II
Suitable for emergency lighting	No
Type of connection, output side	Screwless terminal

Nominal wattage	200.00 W
Nominal output power	200 W 1)
Nominal voltage	220…240 V
Nominal output voltage	24 V 2)
Input voltage range	198…264 V
Input voltage AC	198…264 V 3)
U-OUT (working voltage)	24 V
Type of current	AC
Nominal current	1300 mA
Nominal output current	0…10400 mA
Inrush current	45.6 A
Output current tolerance	+/- 5 %
Output ripple current (120 Hz)	+/- 1.0 %
Mains frequency	50…60 Hz
Total harmonic distortion	< 10 % 4)
Power factor λ	≥0.95 5)
ECG efficiency	93 % 6)
Device power loss	15 W 7)
Max. ECG no. on circuit breaker 10 A (B)	2
Max. ECG no. on circuit breaker 16 A (B)	3
Max. ECG no. on circuit breaker 10 A (C)	3
Max. ECG no. on circuit breaker 16 A (C)	6
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Operating frequency	50/60 Hz
Power loss in stand-by mode	≤0.5 W

Length	346.00 mm
Mounting hole spacing, length	336 mm
Width	45.00 mm
Height	32.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	7…9 mm
Wire preparation length, output side	7…9 mm
Product weight	564.00 g

Approval marks – approval	CE; UKCA; EAC
Standards	Acc. to EN 61347-1; Acc. to EN 61347-2-13; Acc. to EN 55015; Acc. to EN 61547; Acc. to EN 61000-3-2; Acc. to EN 62384
Protection class	II
Type of protection	IP20

Ambient temperature range	-20…+80 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	85 °C
Temperature range in operation	-20…+45 °C
Permitted rel. humidity during operation	20…90 %

ECG lifetime	50000 h 1)
Number of switching cycles	25000

Encapsulated	Yes
Product remark	Available from December 2025

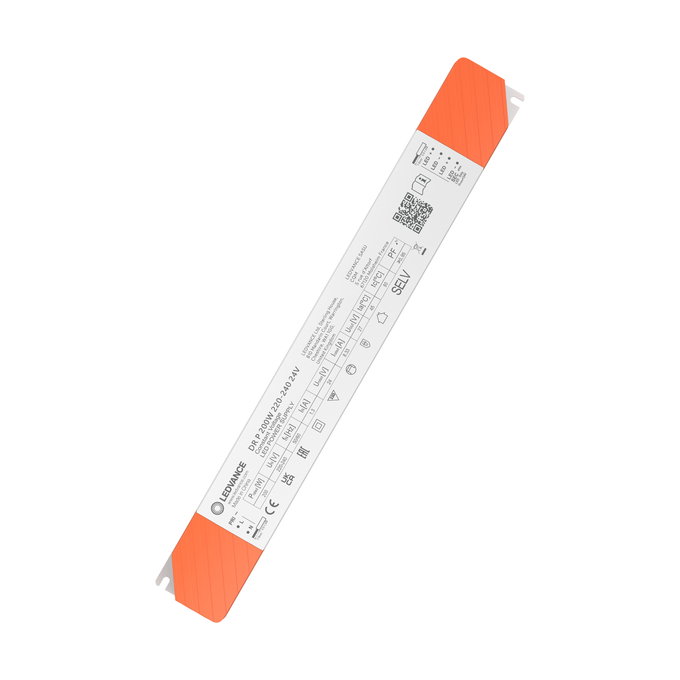

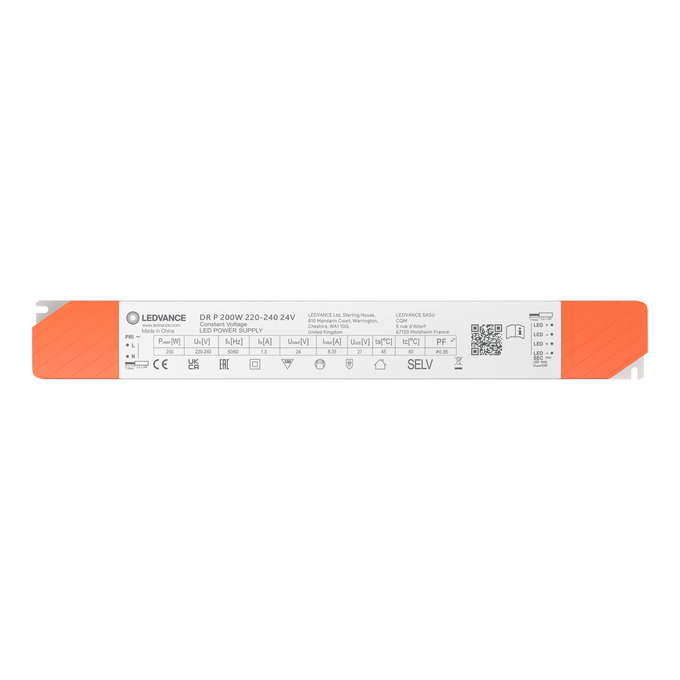

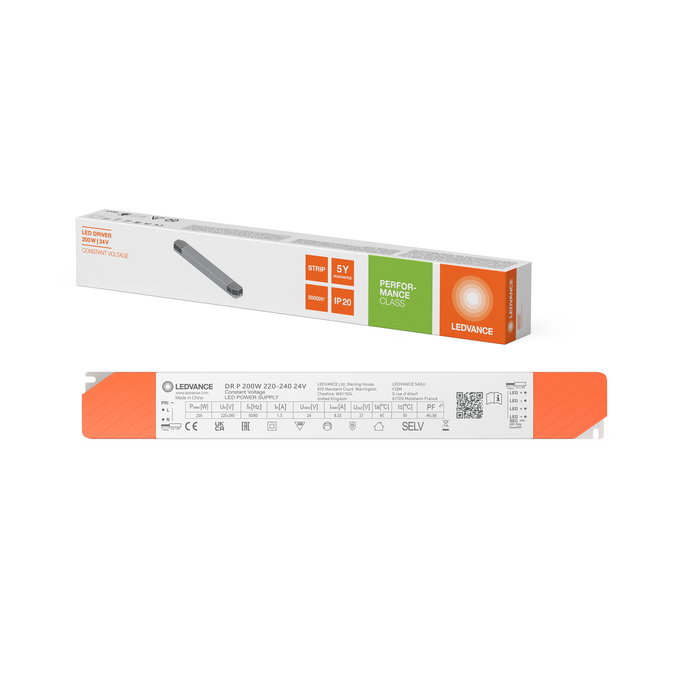

DR P 200W 220-240 24V

Specifications
