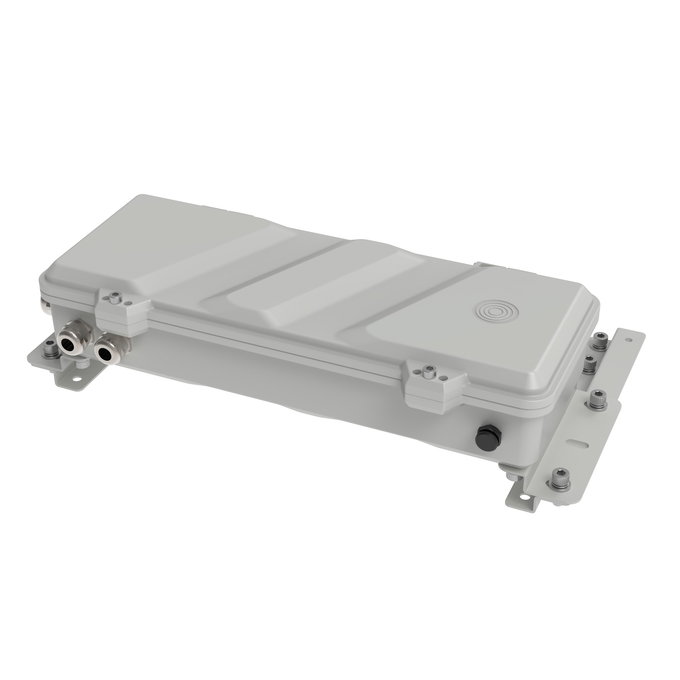

FL MAX PSU DA P 1200W WAL

Link copied
SKU
EAN
GTIN
MPN

FL MAX PSU DA P 1200W WAL by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £2,811.82 excl. VAT.

Product benefits
  • For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
  • Driver box installable up to 150 m from head, central maintenance, reduced mast weight
  • Pre-fitted connectors enable quick, waterproof wiring on site (IP66)
  • Standardized drivers are always easy to replace for simple maintenance
  • Auxiliary DALI power for sensor and control integration, e.g. Smart City
  • Optimized logistics: luminaire and driver box can be ordered separately
  • Future-proof: high efficiency, long life and multiple interfaces
  • Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments
Areas of application
  • Suitable for indoor and outdoor installations
  • Ports/logistics: lights deep & wide areas, ideal with C5 corrosion protection
Product features
  • Wide voltage range: 200-480V AC
  • Efficiency: ≤97 %, saves energy and reduces running costs
  • Integration: for lighting control, DMX, 0-10V dimming
  • Climate membrane protects from water and lets air pass through
  • Surge protection: up to 20 kV, improved safety in stadiums
  • Protection: lockable driver box prevents tampering
Equipment / Accessories
  • Cable glands included and preinstalled in the power supply
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links

Price: £ 2,811.82 Excl. VAT

Specifications

Electrical data

Nominal wattage 1200.00 W
Nominal voltage 200…480 V
Mains frequency 0/50/60 Hz
Power factor λ > 0.94
Protection class I
Surge capability (L-N) 20 kV

Dimensions & Weight

Length 487.00 mm
Height 105.00 mm
Product weight 6100.00 g
