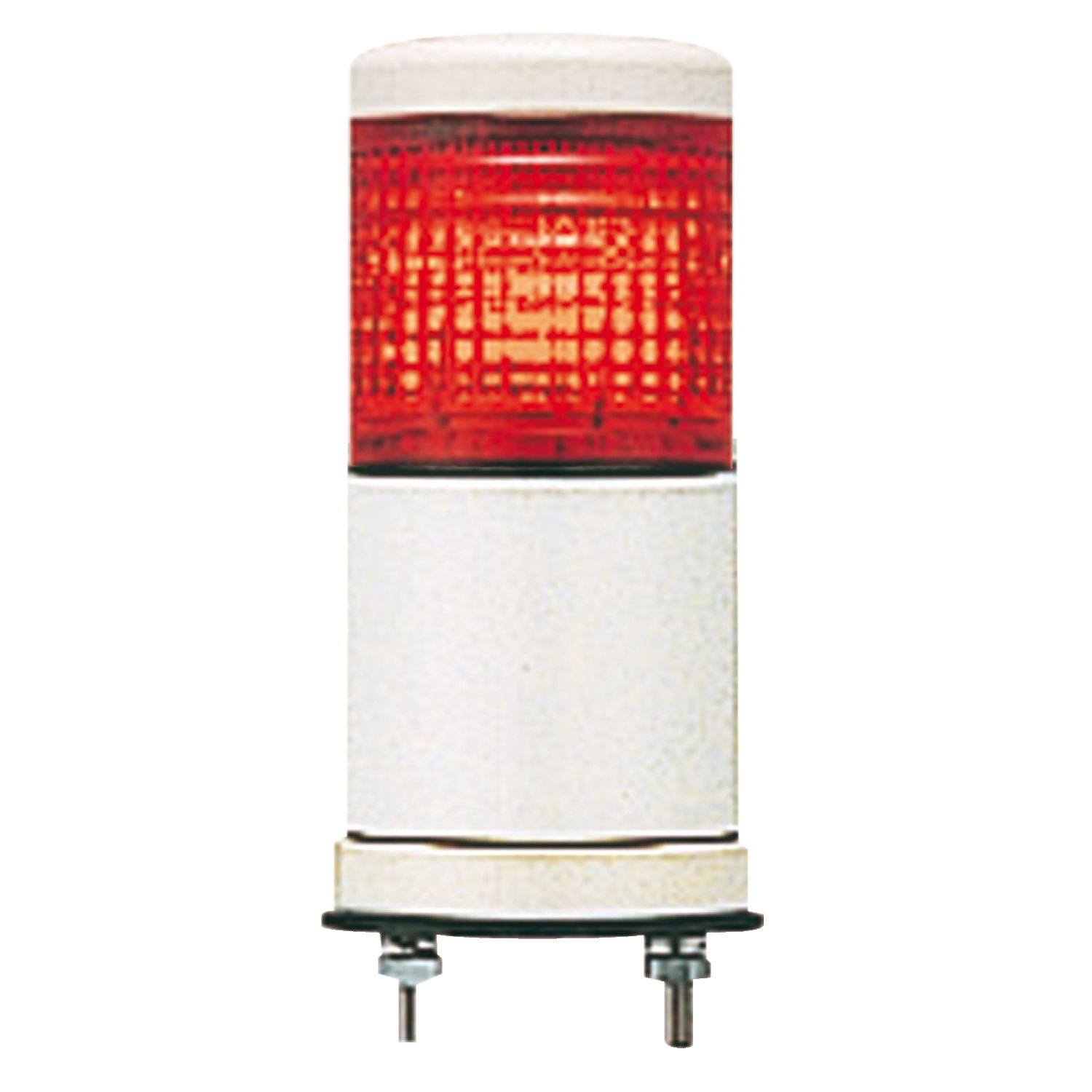

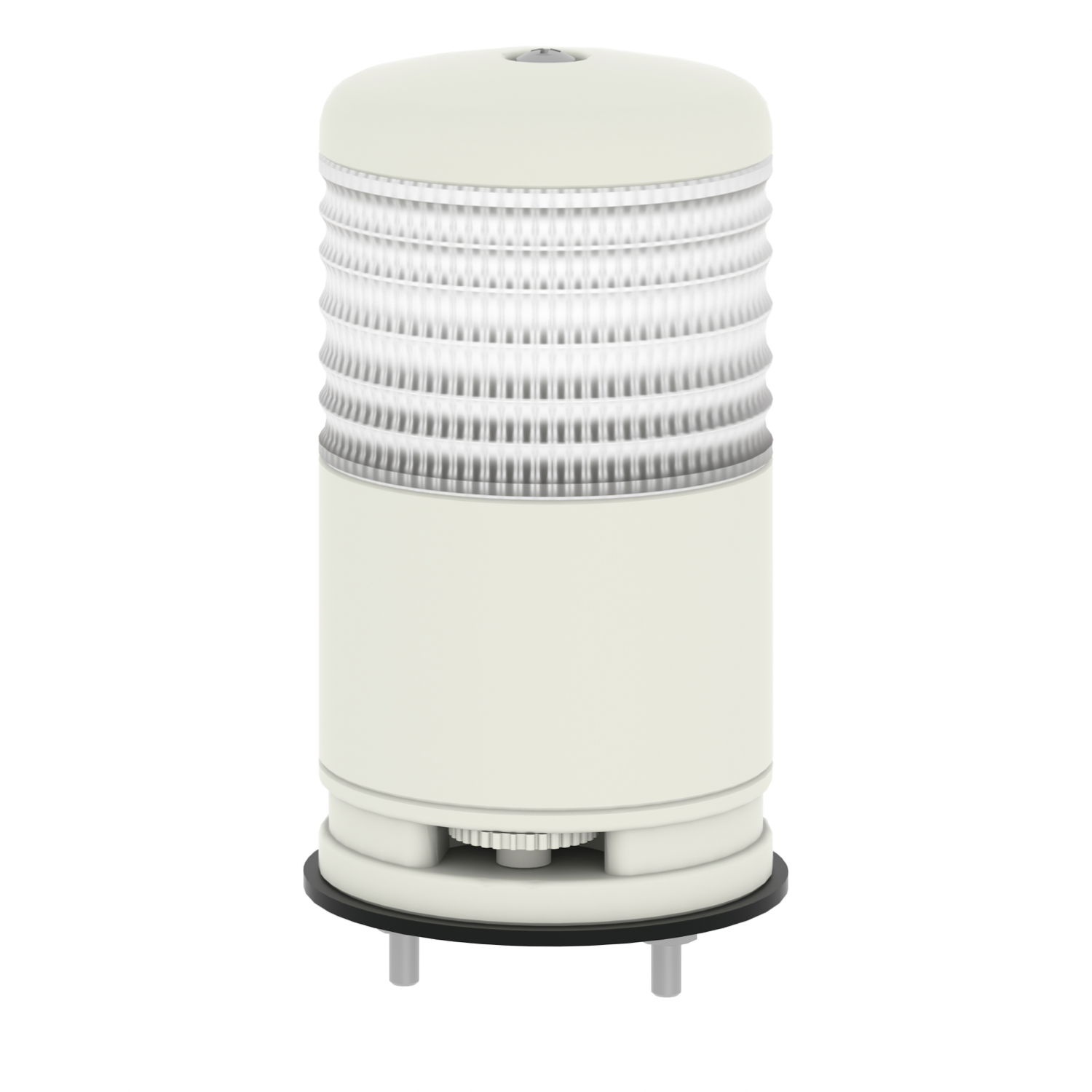

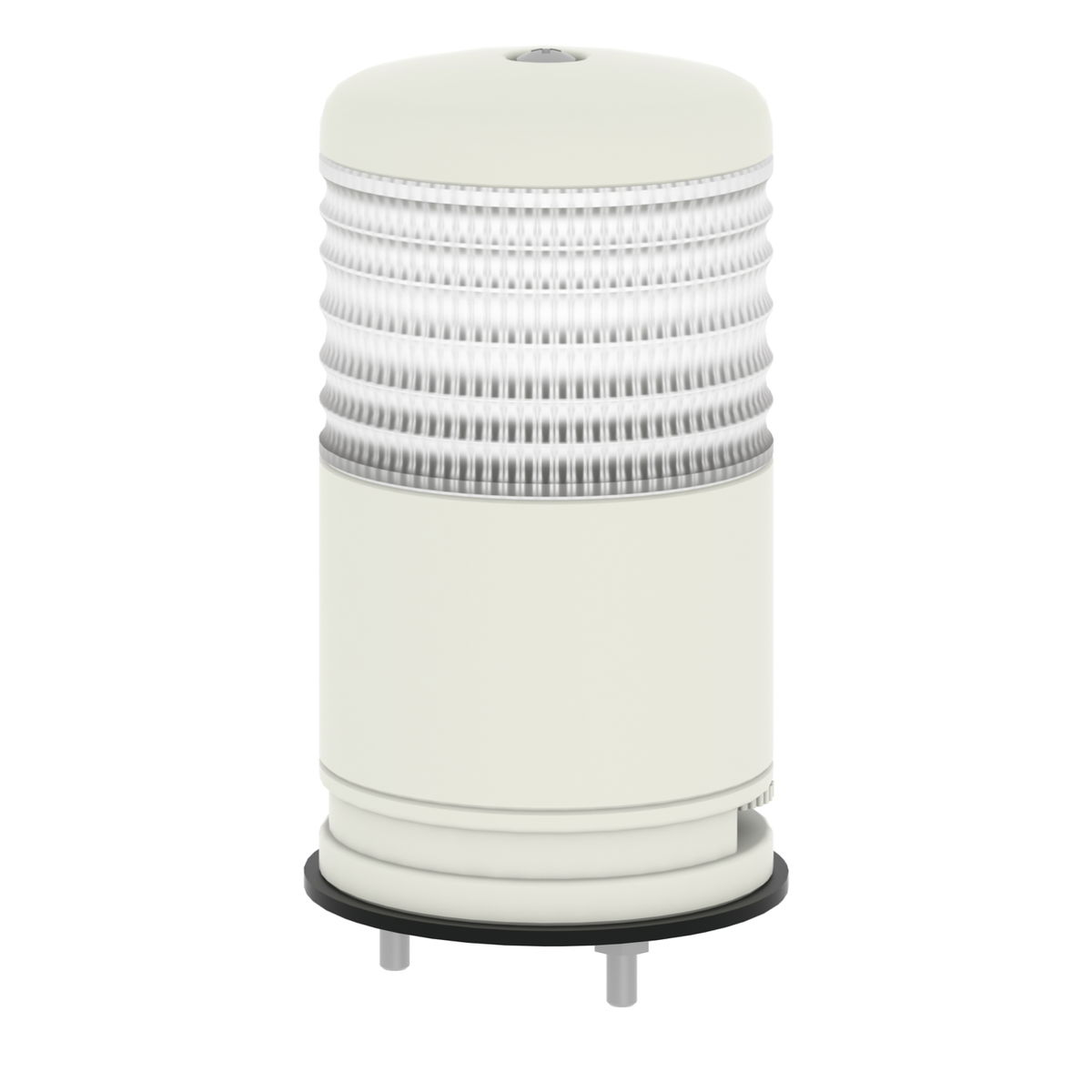

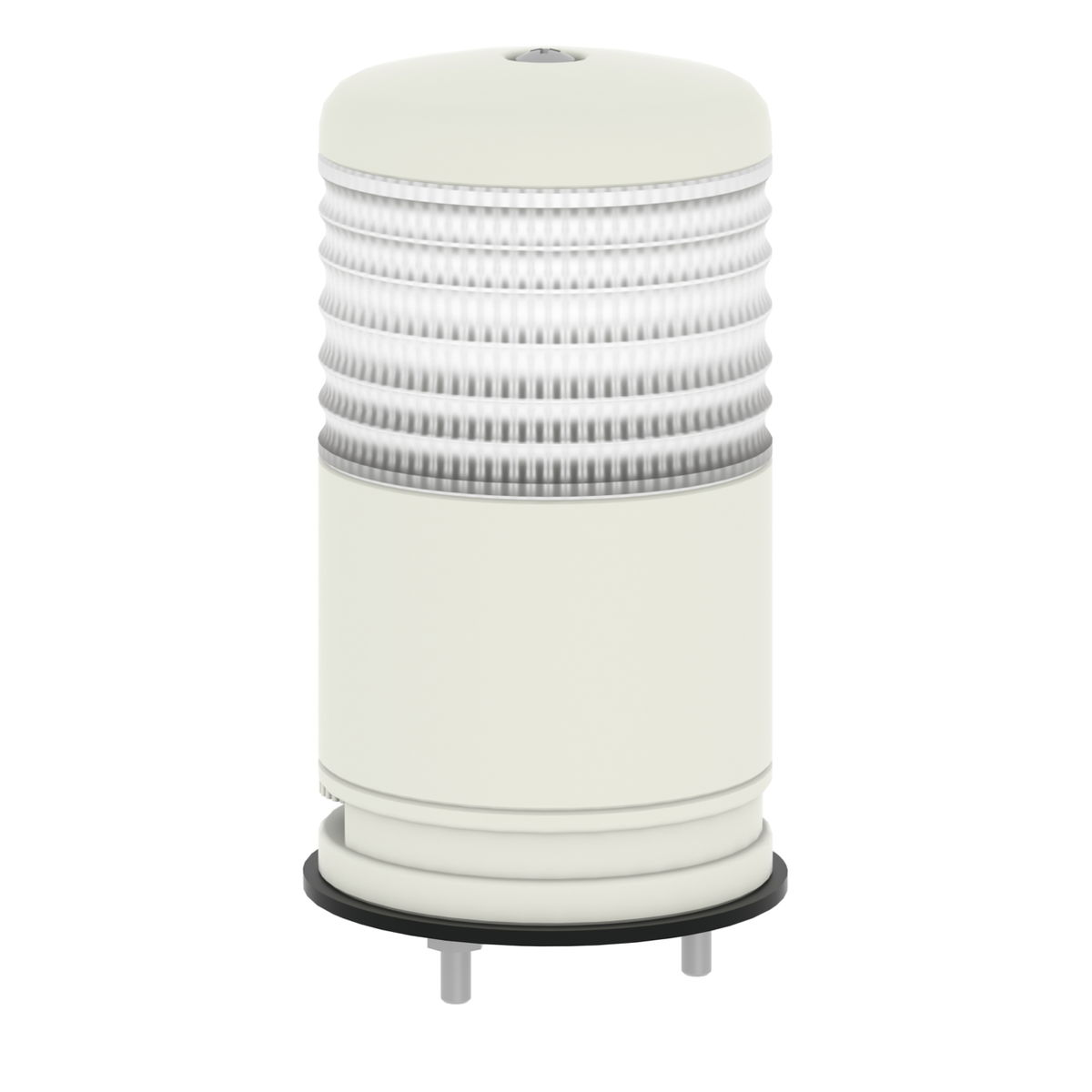

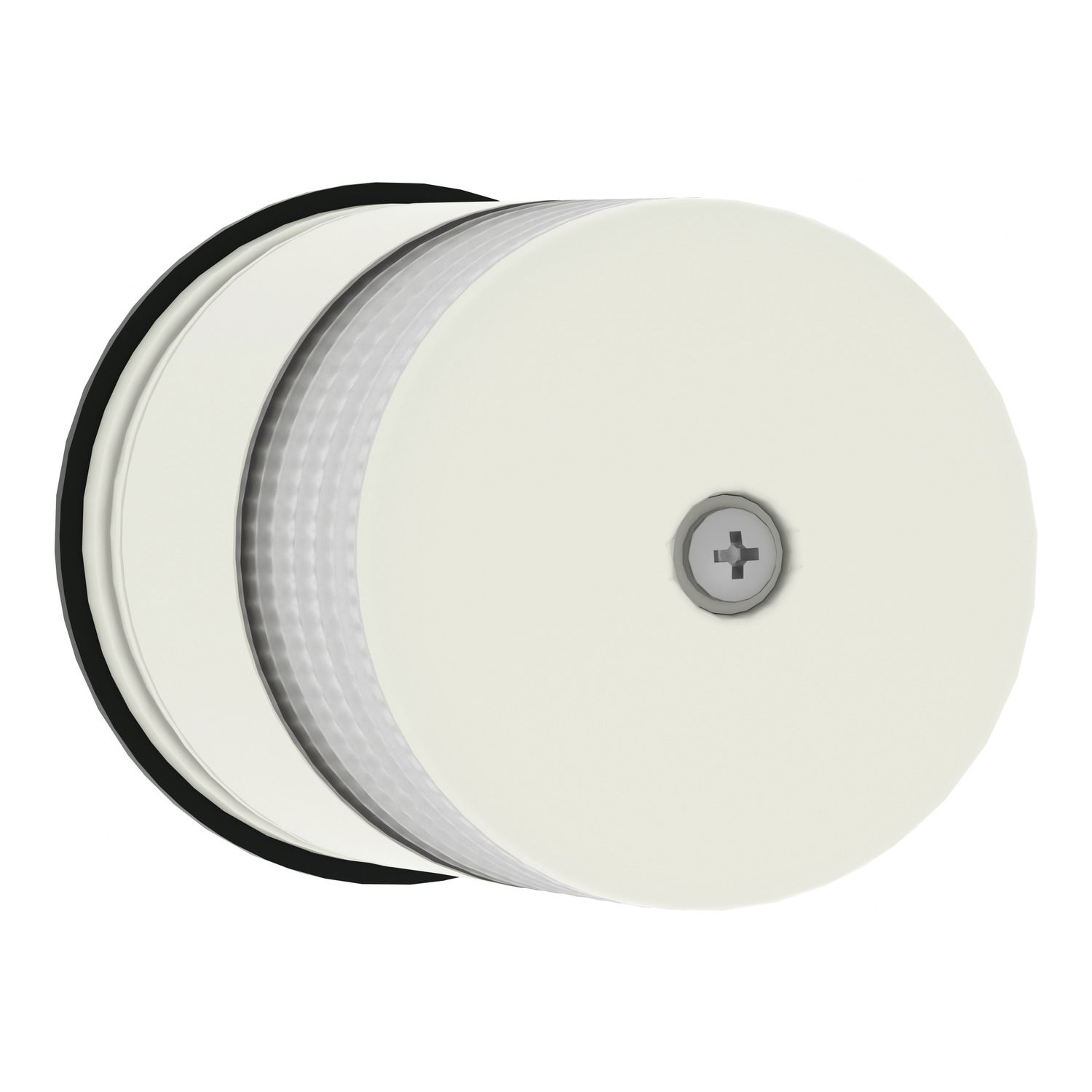

60mm Tower R Base Mount Buzzer Flash

Link copied
SKU
EAN
GTIN
MPN
This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 1 red illuminated signaling unit and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 200g and it is 121mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.

Voltimum+ Loyalty Programme Loyalty points: 24

Price: £ 144.00 Excl. VAT

Specifications

Depth -
Width -
Height 120.8 mm
Loudness 85 dB
Colour light 1 Red
Colour light 2 -
Colour light 3 -
Colour light 4 -
Outer diameter 60 mm
Operating voltage DC
Function revolving light yes
Function continuous light yes
Operating voltage AC 60 Hz
Number of signal tower elements 1

Documents

Instruction sheet

XVC6B... Monolithic indicator banks, Diam. 60 mm

Open

Product data sheet

Open

Catalog

Monolithic tower lights Harmony XVC, dia 40-60-100 catalog

Open

Declaration of Conformity (Sustainability)

XVC6B15SK EU RoHS Directive

Open

Declaration of conformity

Manufacturer UK DOC XVC

Open

CAD

XVC6B15SK_CAD_DOC

Open

CAD

XVC6B15SK_CAD_DOC

Open

CAD

XVC6B15SK_CAD_DOC

Open
