LED Classic A 60 Filament P 6.5W 827 Frosted B22d

1 / 5

LED Classic A 60 Filament P 6.5W 827 Frosted B22d

LED Classic A 60 Filament P 6.5W 827 Frosted B22d by LEDVANCE is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £2.58 to £3.44 excl. VAT.

Product benefits

Lamps with innovative LED "filament" technology
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Lower energy consumption than incandescent or halogen lamps
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

Professional LED lamps for line voltage
Beam angle: up to 300°
Not dimmable
Base: E27
Lifetime up to 15,000 h
Lamp made of glass
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4099854062704

EAN: 4099854062704

GTIN: 4099854062704

MPN: 4099854062704

Price range: £ 2.58 - £ 3.44 Excl. VAT

Specifications

Electrical data

Nominal wattage	6.5 W
Construction wattage	6.50 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	60 W
Nominal current	38 mA
Type of current	AC
Inrush current	0.1 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	789
Max. lamp number on MCB B16 A	1263
Total harmonic distortion	90 %
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Product Images And Graphics

Product image: white background, diagonal with LEDVANCE logo – LED CLASSIC A FIL FR B22D

Open

Product image: white background, diagonal – Classic A GLFR B22d

Open

Product image: white background, upright LEDVANCE logo – LED CLASSIC A FIL FR B22D

Open

Product image: white background, upright – Classic A GLFR B22d

Open

Product line drawing with letters – 328068_CLASSIC A B22d FROSTED

Open

Product line drawing with numbers – LED CLASSIC A60 GLFR B22D

Open

Product line drawing, front, no dimensions – 328069_CLASSIC A B22d FROSTED

Open

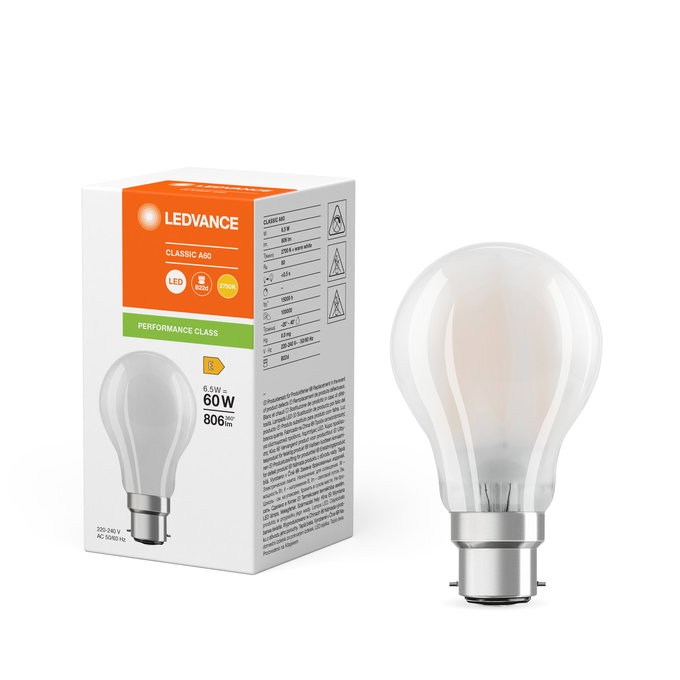

Combo Shot = Product Beauty Shot + Packaging Image – FC1 CLA 60 PFM 6.5W 827 GLFR B22D

Open

Packaging image, frontal – FC1 CLA 60 PFM 6.5W 827 GLFR B22D

Open

Packaging image, spacial – FC1 CLA 60 PFM 6.5W 827 GLFR B22D

Open

Energy Label 2021 UK – EL-4099854062704-AC452 09

Open

Luminous flux	806 lm
Luminous efficacy	124 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	≤1.0
Stroboscope effect metric (SVM)	≤0.4

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	104.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	31.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	70 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93
Rated lamp survival factor at 6,000 h	≥ 0.90

Base (standard designation)	B22d
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	E 1)
Energy consumption	7.00 kWh/1000h
Type of protection	IP20
Standards	CE; UKCA
Photobiological safety group acc. to EN62778	RG0

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	B22d
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	not applicable
Claim of equivalent power	Yes
Length	104.00 mm
Height	60.00 mm
Width	60.00 mm
Chromaticity coordinate x	0.463
Chromaticity coordinate y	0.42
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	≥0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1361316
Model number	AC45209

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
