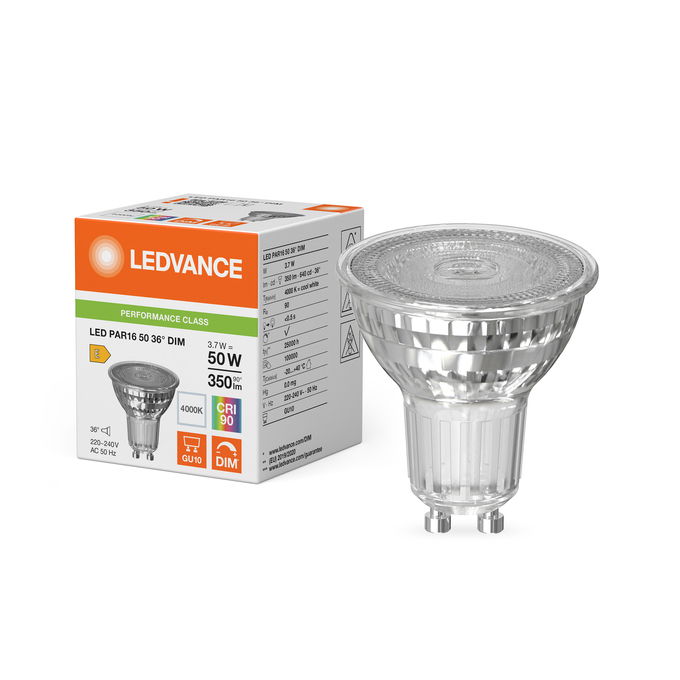

LED PAR16 50 36° DIM P 3.7W 940 GU10

LED PAR16 50 36° DIM P 3.7W 940 GU10 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £3.86 excl. VAT.

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • Dimmable
  • Lamp made of glass
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links

Product identifiers

SKU: 4099854457562
EAN: 4099854457562
GTIN: 4099854457562
MPN: 4099854457562

Price: £ 3.86 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Capabilities

Dimmable Yes 1)

Electrical data

Nominal wattage 3.7 W
Construction wattage 3.70 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 40 mA
Inrush current 2.48 A
Mains frequency 50 Hz
Max. lamp number on MCB B16 A 91
Power factor λ > 0.50
