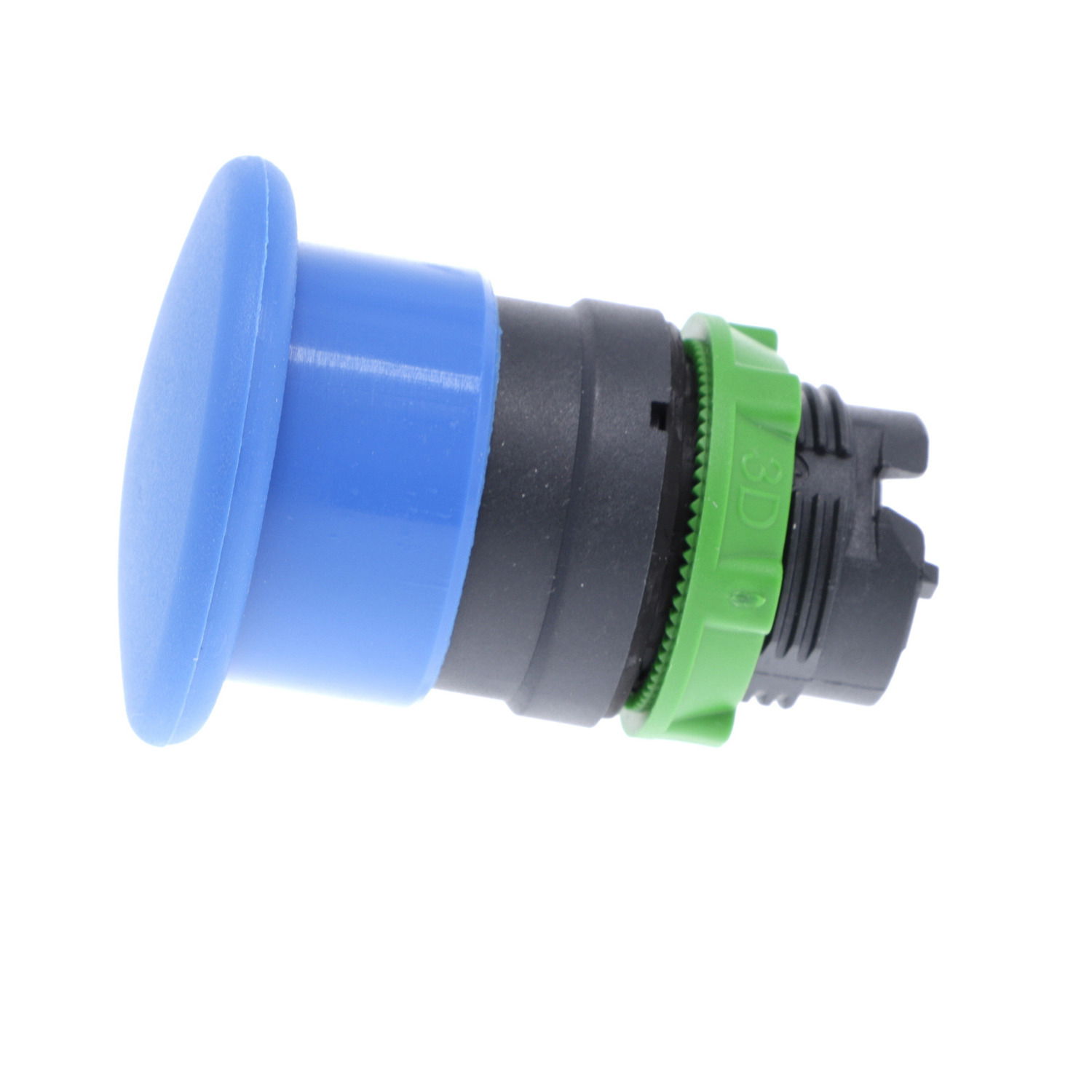

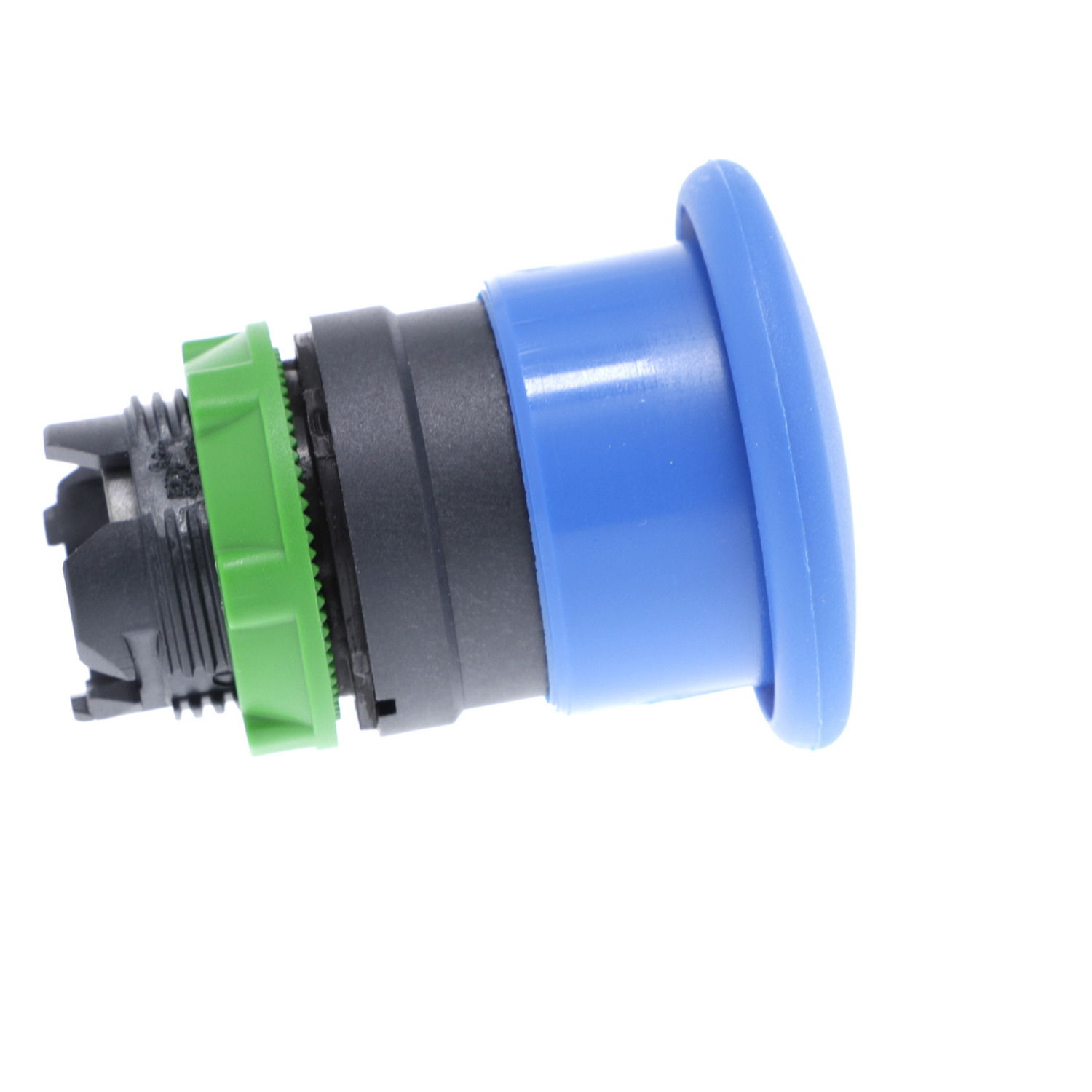

Mushroom push button head Ø40, plastic, blue, Ø22, spring return

Mushroom push button head Ø40, plastic, blue, Ø22, spring return – Image 2 of 7

Mushroom push button head Ø40, plastic, blue, Ø22, spring return – Image 3 of 7

Mushroom push button head Ø40, plastic, blue, Ø22, spring return – Image 4 of 7

Mushroom push button head Ø40, plastic, blue, Ø22, spring return – Image 5 of 7

Mushroom push button head Ø40, plastic, blue, Ø22, spring return – Image 6 of 7

1 / 7

Mushroom push button head Ø40, plastic, blue, Ø22, spring return

Name: Mushroom push button head Ø40, plastic, blue, Ø22, spring return
Brand: Schneider Electric
SKU: ZB5AC6
Availability: InStock

Mushroom push button head Ø40, plastic, blue, Ø22, spring return by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £13.34 to £13.47 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB5, 40mm mushroom blue button head operates with a spring return mechanism. This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Product identifiers

SKU: ZB5AC6

EAN: 3389110904949

GTIN: 3389110904949

MPN: ZB5AC6

Loyalty points: 2

Price range: £ 13.34 - £ 13.47 Excl. VAT

Specifications

Diameter cap	40 mm
Colour button	Blue
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
With lighting	no
Height opening	-
Type of button	High
With front ring	yes
Unlocking method	None
Colour front ring	Black
Material front ring	Plastic
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Suitable for emergency stop	no
Switching function latching	no
