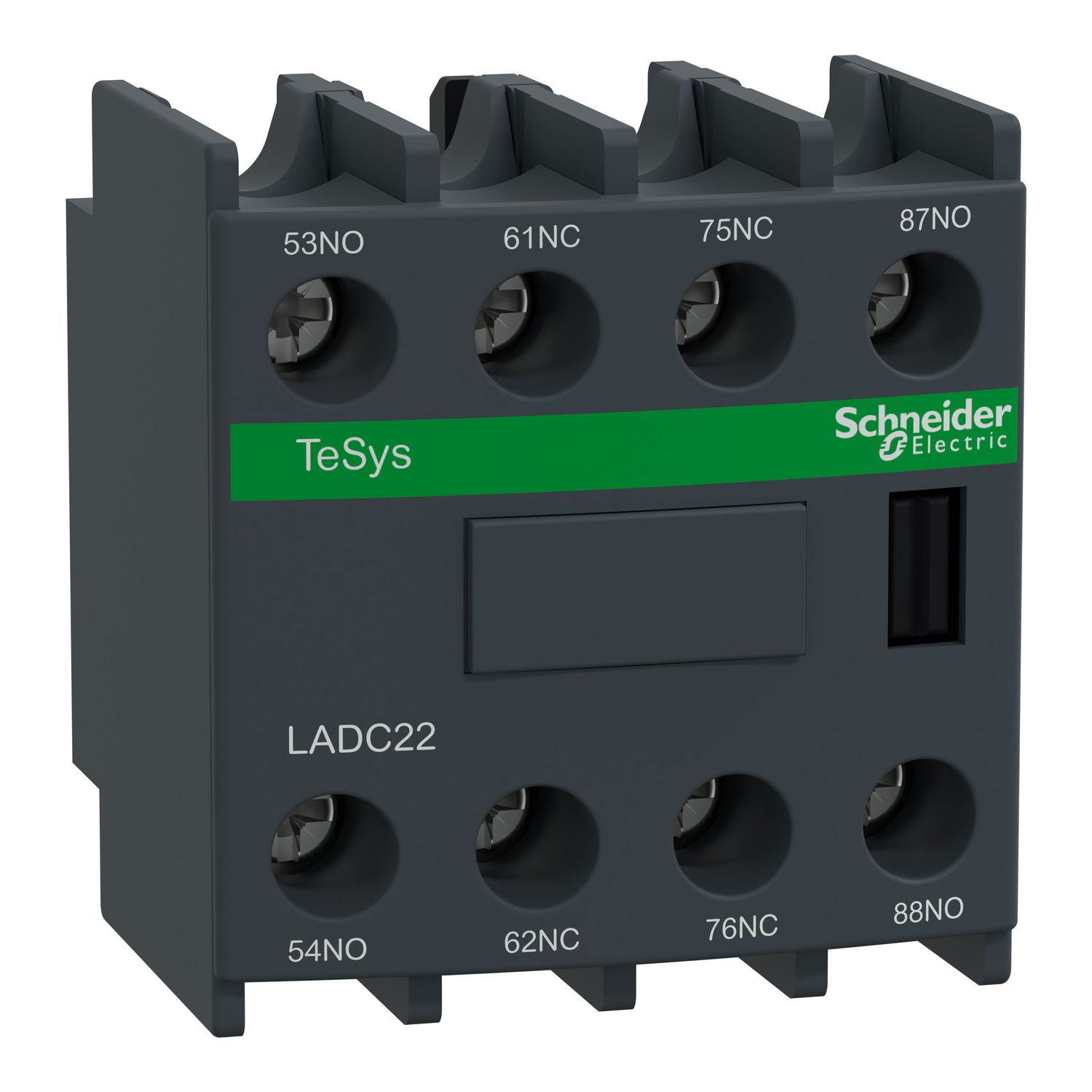

Auxiliary contact block, TeSys D, 2NO + 2NC (inc. 1NO + 1NC make before break), front mounting, screw clamp terminals
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, of which 1NO+1NC are with overlap time (make before break), connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, EAC), Sustainability compliant.
Product identifiers
SKU: LADC22
EAN: 3389110384475
GTIN: 3389110384475
MPN: LADC22
Loyalty points:
10
Price range: £ 16.03 - £ 25.10 Excl. VAT
Categories
Features
|
Model
|
Clip-on
|
|
Lamp holder
|
-
|
|
Mounting method
|
Front fastening
|
|
Type of electric connection
|
Screw connection
|
|
Number of fault-signal switches
|
0
|
|
Number of contacts as change-over contact
|
0
|
|
Rated operation current Ie at AC-15, 230 V
|
10 A
|
|
Number of contacts as normally open contact
|
2
|
|
Number of contacts as normally closed contact
|
2
|
