TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps term - EN 50012
1 / 2
TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps term - EN 50012
TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps term - EN 50012 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £15.39 to £18.11 excl. VAT. Voltimum+ members earn 2 points per unit.

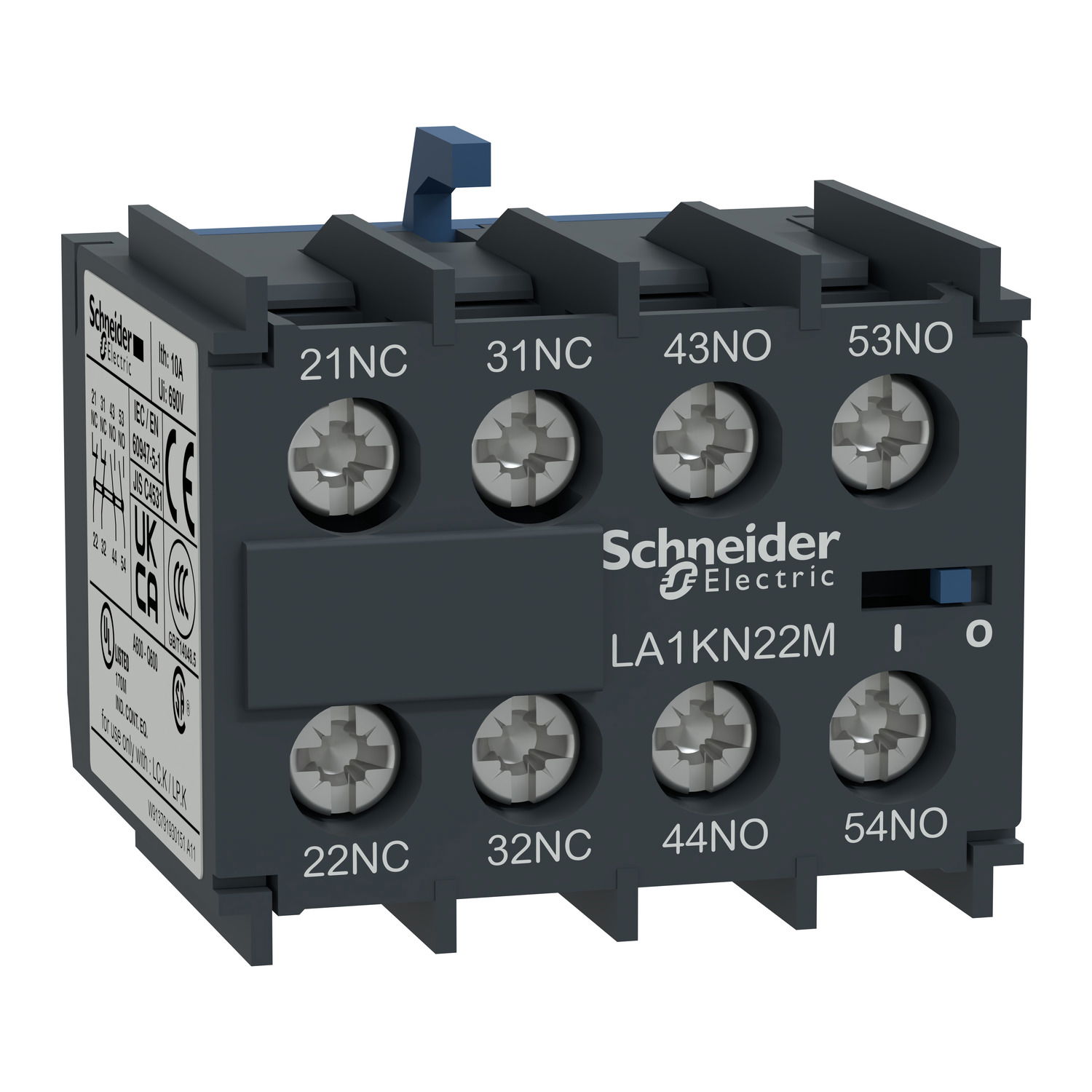

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K (3P + 1NO contact models except LP4K, LP5K) with screw clamp terminals. It provides 2NO+2NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Marking on terminals conforms to EN 50012. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC),
Product identifiers
SKU: LA1KN22M
EAN: 3389110428445
GTIN: 3389110428445
MPN: LA1KN22M
Loyalty points:
2
Price range: £ 15.39 - £ 18.11 Excl. VAT
ETIM group
Specifications
| Model | Clip-on |
| Lamp holder | - |
| Mounting method | Front fastening |
| Type of electric connection | Screw connection |
| Number of fault-signal switches | 0 |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Number of contacts as normally open contact | 2 |
