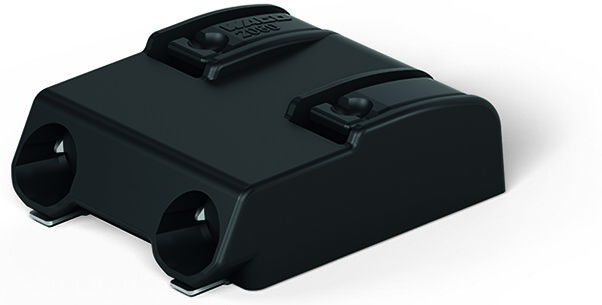

SMD PCB terminal block push-button 0.75 mm² black

Name: SMD PCB terminal block push-button 0.75 mm² black
Brand: Wago
SKU: 2060-872/998-404
Availability: InStock

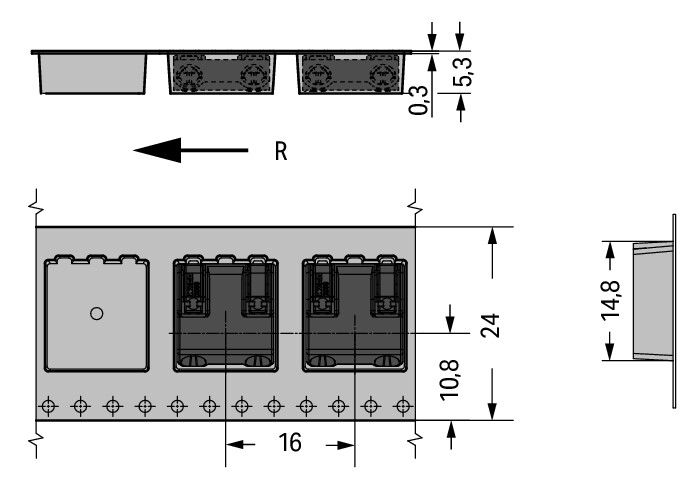

SMD PCB terminal block; push-button; 0.75 mm²; Pin spacing 8 mm; 2-pole; Push-in CAGE CLAMP®; in tape-and-reel packaging; 0,75 mm²; black

Product identifiers

SKU: 2060-872/998-404

EAN: 4055143888424

GTIN: 4055143888424

MPN: 2060-872/998-404

Price range: £ 0.62 - £ 0.88 Excl. VAT

Terminal blocks

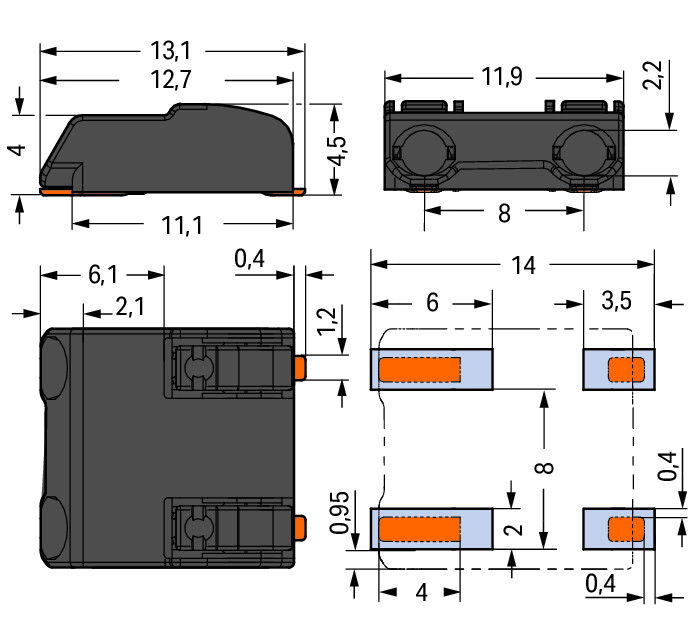

Specifications

Depth	13.1
Width	11.9
Colour	Black
Height	4.5
Transparent	no
Halogen free	-
Rated voltage	630
Mounting method	Other
Number of poles	2
Rated current In	9
Operating temperature	-60 - 105
Closing plate required	-
Material insulation body	Thermoplastic
Drill hole distance centrically	-
Explosion-tested version 'Ex e'	no
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per pole	1
Connectable conductor cross section solid-core	0.2 - 0.75
Connectable conductor cross section multi-wired	0.2 - 0.75
Inflammability class of insulation material according to UL94	-
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.34
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 0.75
