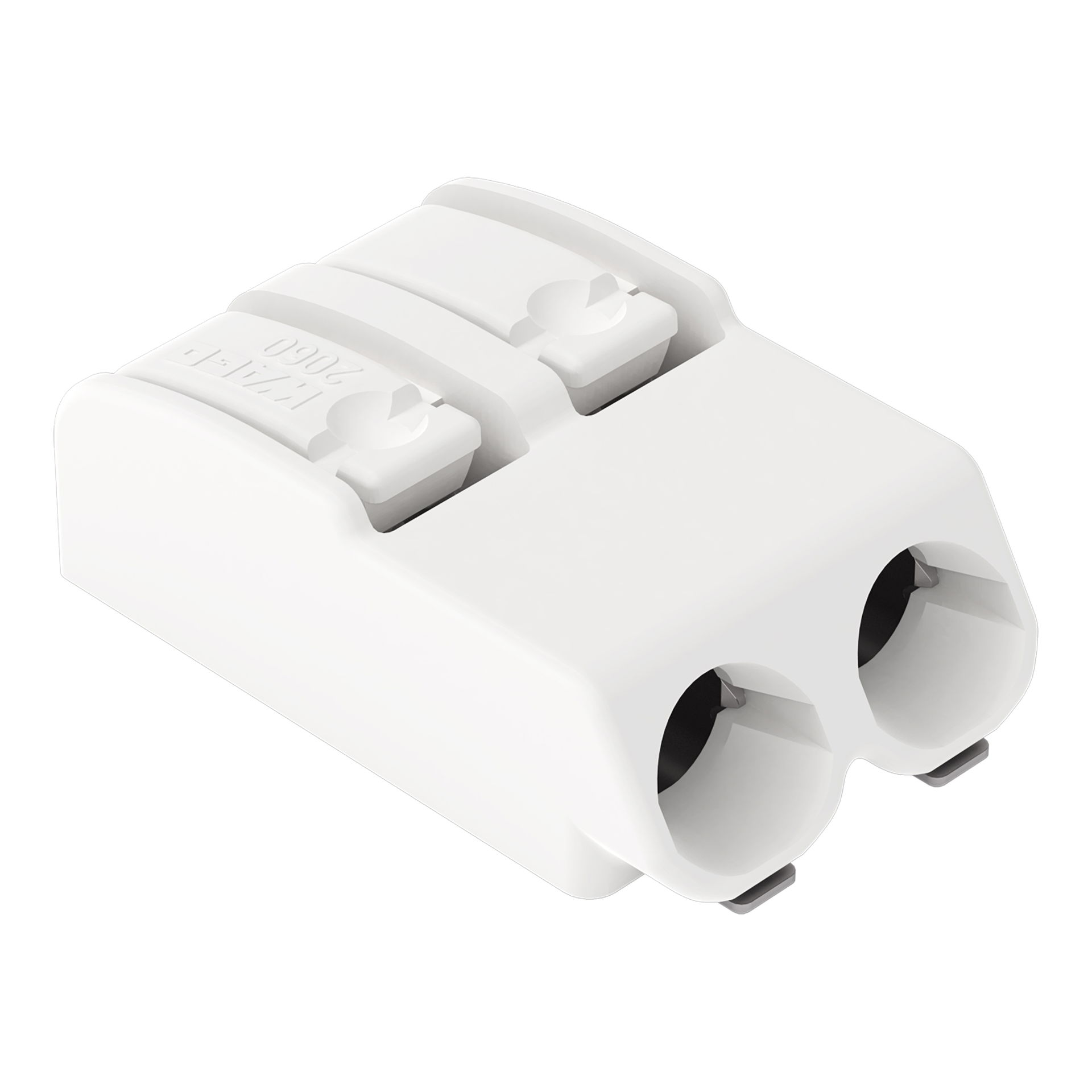

SMD PCB terminal block push-button 0.75 mm² white

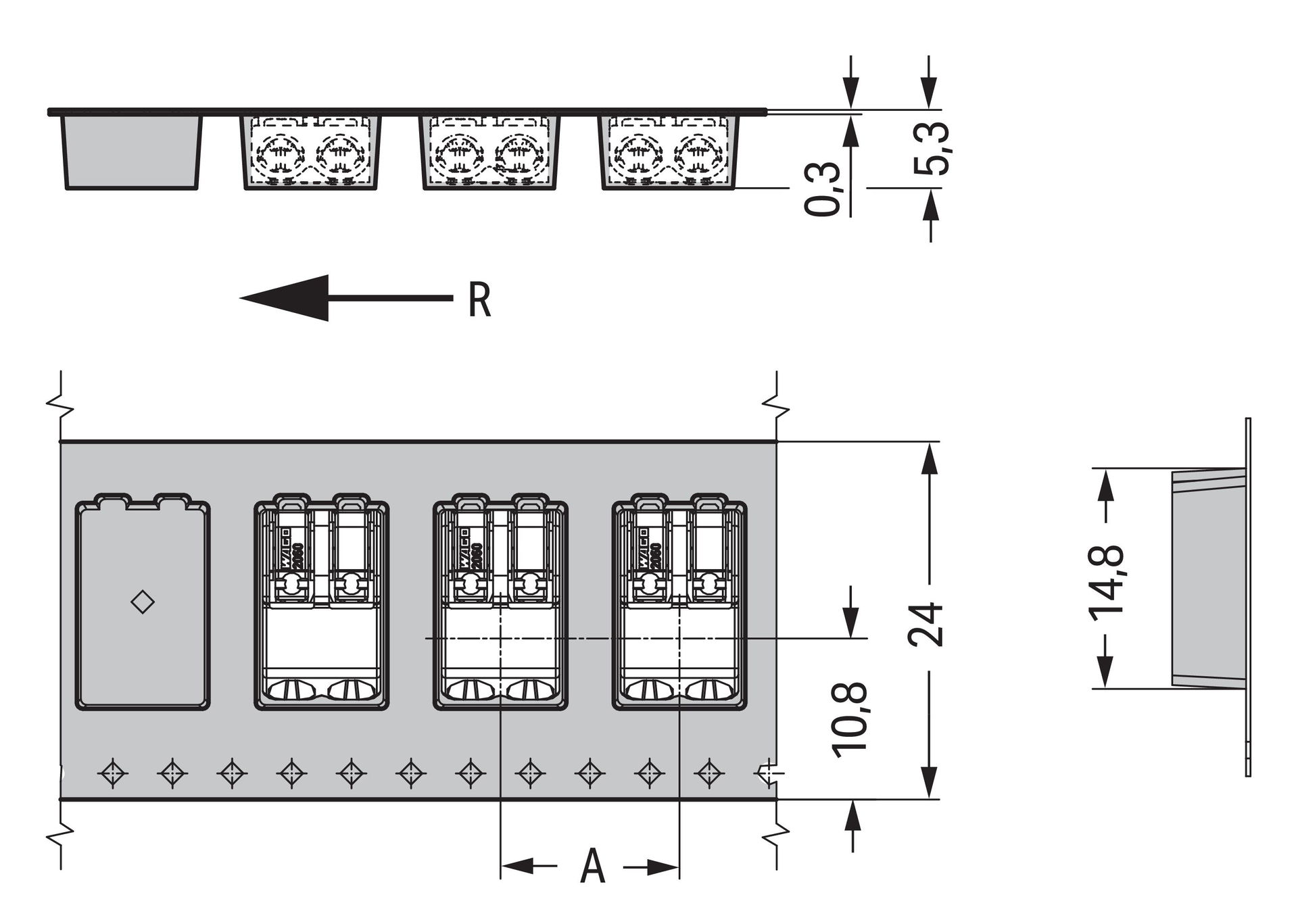

SMD PCB terminal block; push-button; 0.75 mm²; Pin spacing 4 mm; 2-pole; Push-in CAGE CLAMP®; in tape-and-reel packaging; white
Product identifiers
SKU: 2060-452/998-404
EAN: 4055143541244
GTIN: 4055143541244
MPN: 2060-452/998-404
Loyalty points:
10
Price range: £ 0.50 - £ 0.88 Excl. VAT
Categories
Features
|

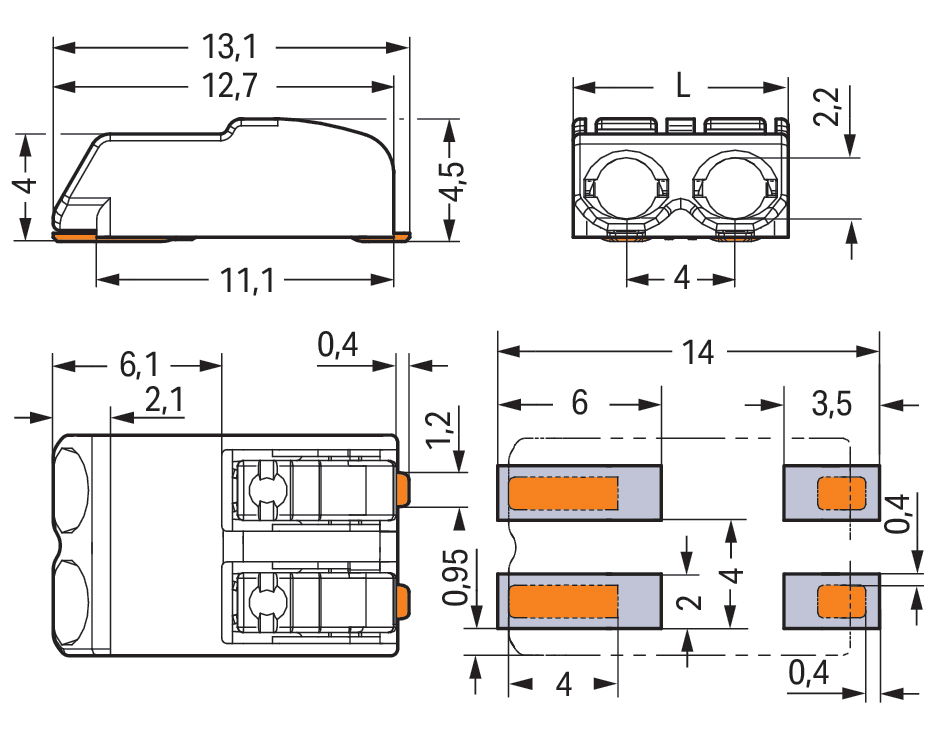

Depth
|
13.1
|
|
Width
|
4
|
|
Colour
|
White
|
|
Height
|
4.5
|
|
Transparent
|
no
|
|
Halogen free
|
-
|
|
Rated voltage
|
160
|
|
Mounting method
|
Other
|
|
Number of poles
|
2
|
|
Rated current In
|
9
|
|
Operating temperature
|
-60 - 105
|
|
Closing plate required
|
-
|
|
Material insulation body
|
Thermoplastic
|
|
Drill hole distance centrically
|
-
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per pole
|
1
|
|
Connectable conductor cross section solid-core
|
0.2 - 0.75
|
|
Connectable conductor cross section multi-wired
|
0.2 - 0.75
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.25 - 0.34
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.2 - 0.75
|
