KNIPEX 16 95 03 SB ErgoStrip® PV 135 mm
1 / 7
KNIPEX 16 95 03 SB ErgoStrip® PV 135 mm
KNIPEX 16 95 03 SB ErgoStrip® PV 135 mm by KNIPEX is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £53.10 to £54.24 excl. VAT.

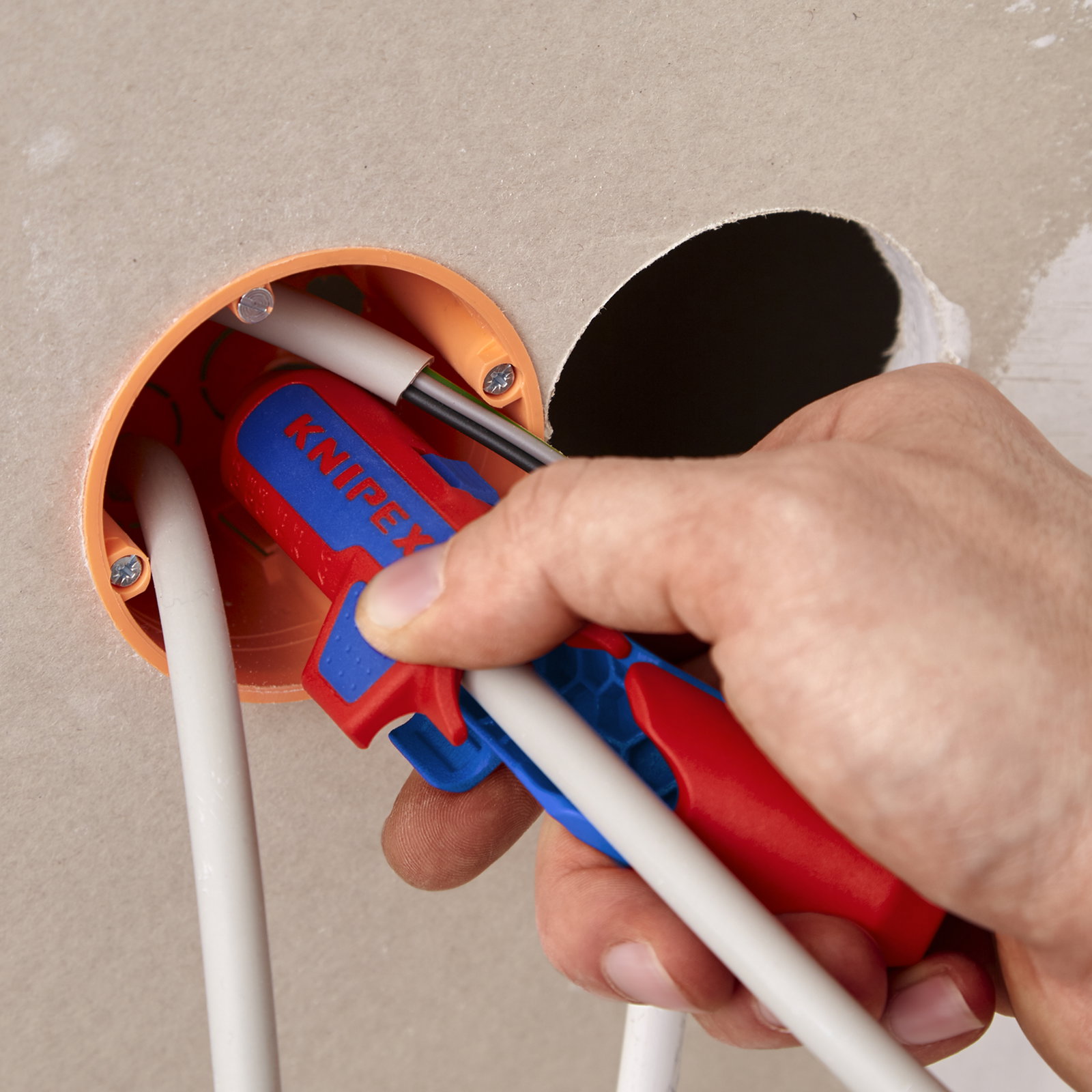

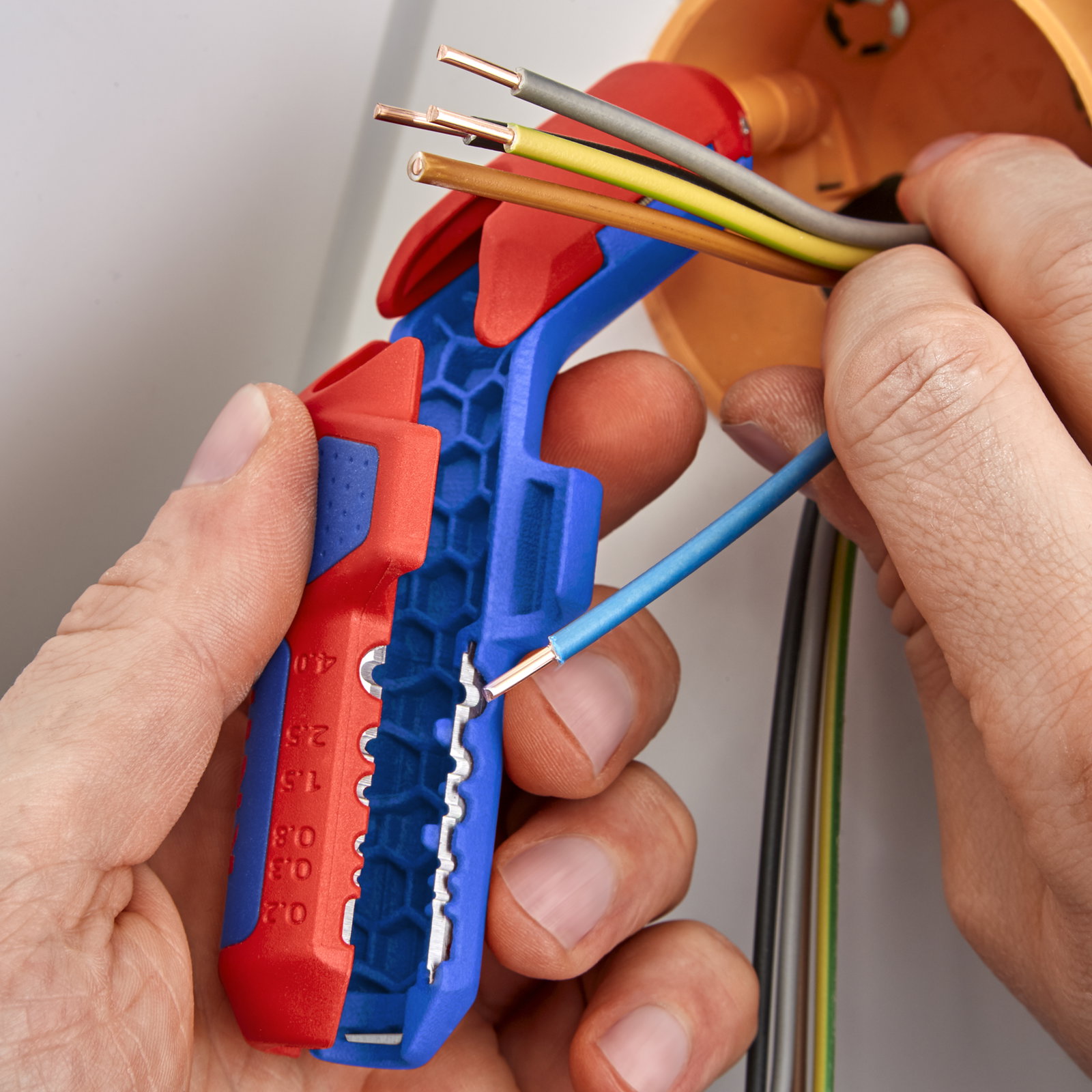

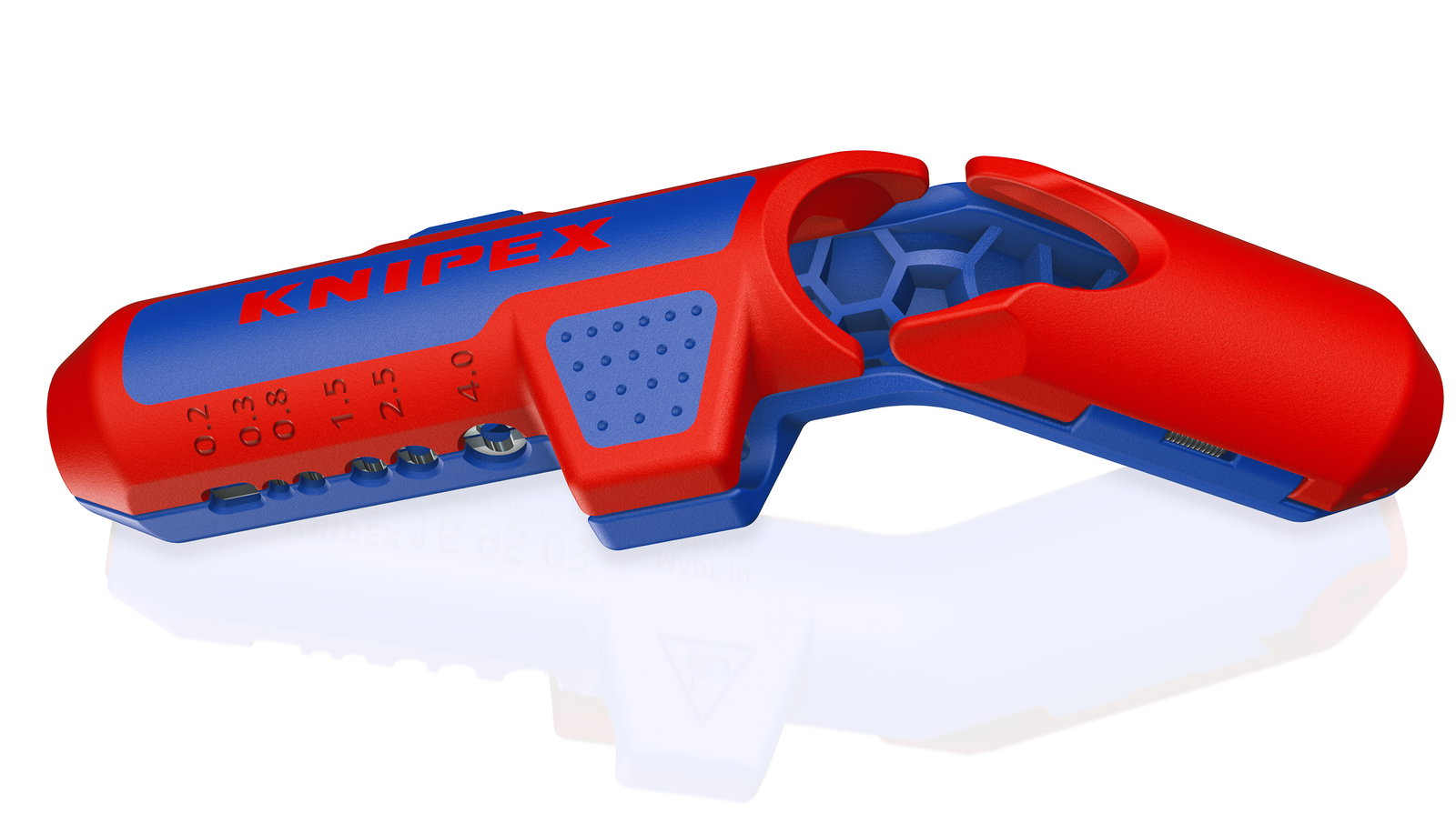

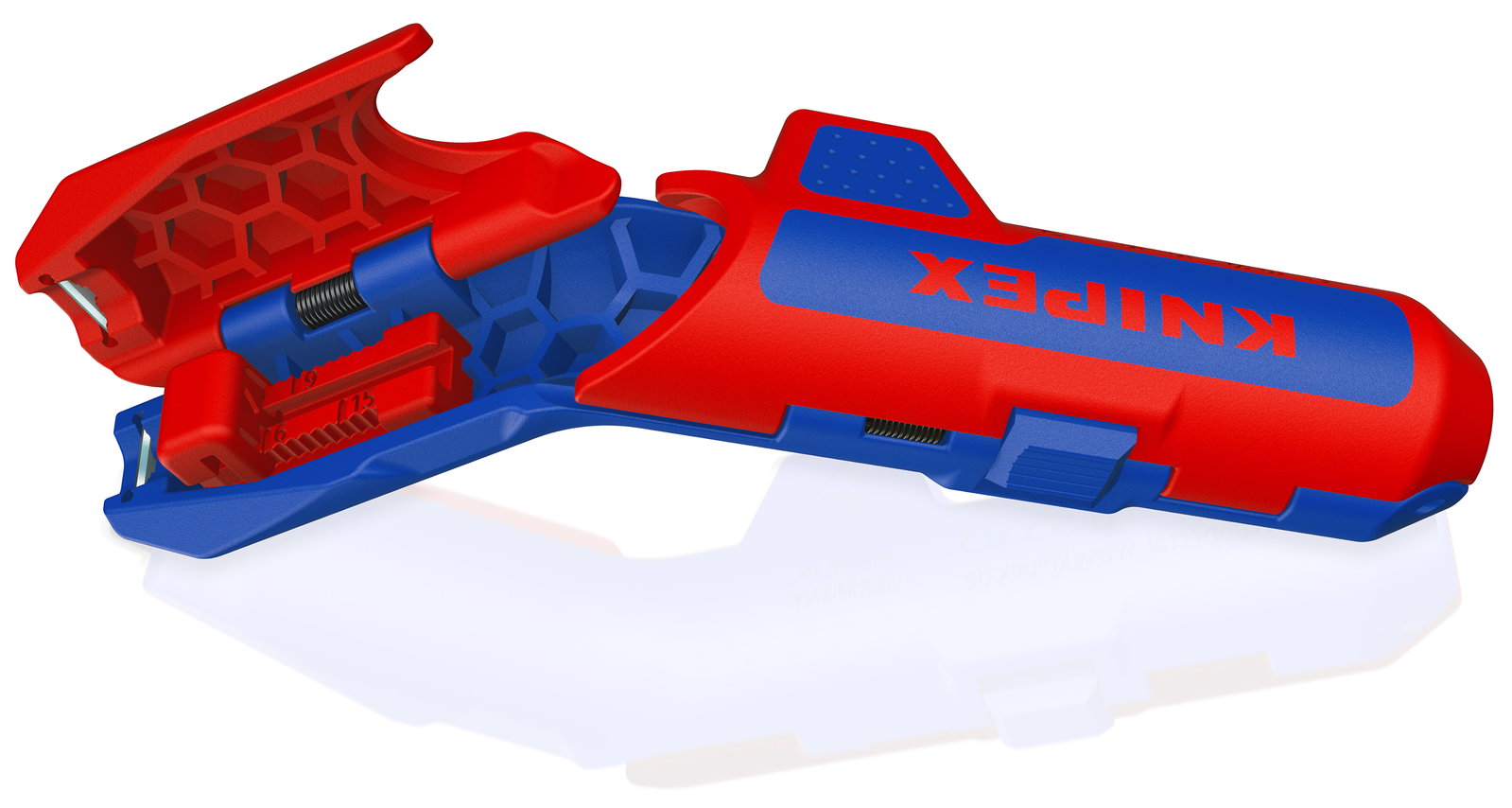

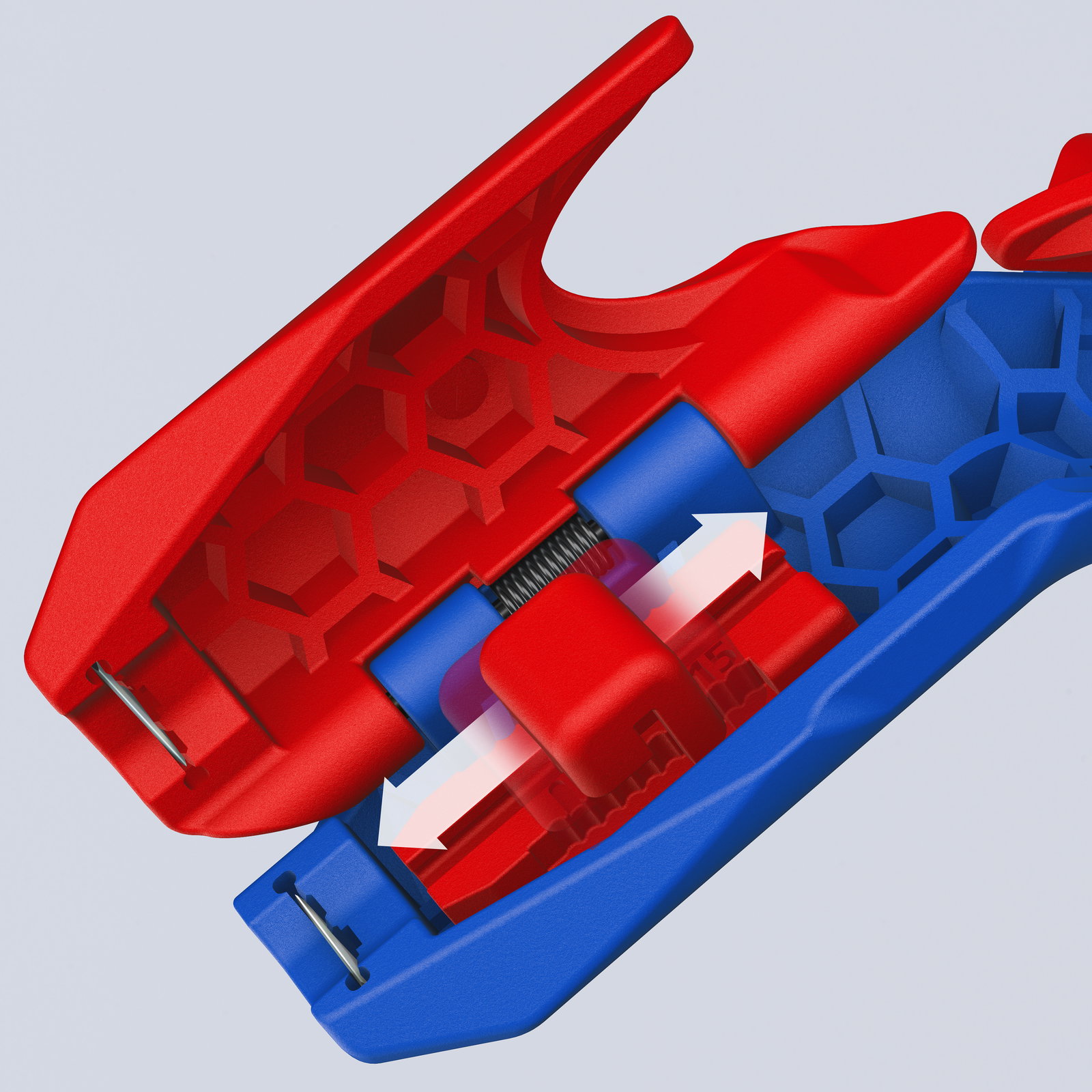

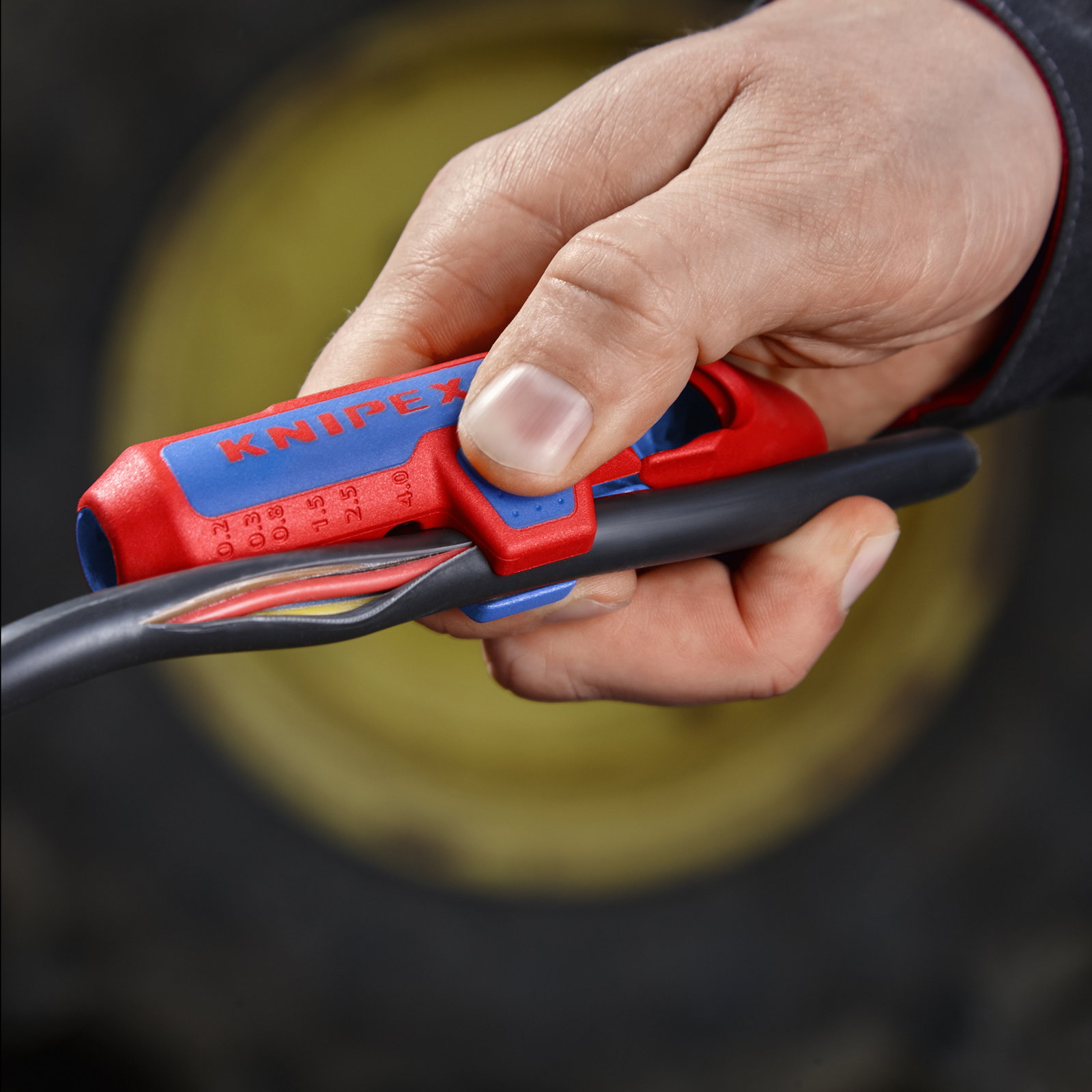

16 95 03 SB KNIPEX ErgoStrip® PV for fast and precise stripping of PV cables with 4 and 6 mm² (e. g. H1Z2Z2-K) and all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²). Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath. Length stop for PV cables: adjustable from 6 - 18 mm for repetitive stripping lengths, suitable for all standard solar connectors. Conical, slimmed down tool ends for better access in confined areas. Wire stripping mechanism for PVC single conductors (e. g. H07V-K) with cross sections 0,2 / 0,3 / 0,8 / 1,5 / 2,5 / 4 mm². Simplified insertion of single wires for stripping using location ridges. With opening spring and locking device. Multi-component design with a soft plastic zone for comfortable use and a secure grip. - Stripping capacities round cable (diametre): Ø 8 – 13mm- Stripping capacity conductors and strands: 0.2 — 4.0mm²
Product identifiers
SKU: 16 95 03 SB
EAN: 4003773092605
GTIN: 4003773092605
Price range: £ 53.10 - £ 54.24 Excl. VAT
Categories
Specifications
| RoHs | not applicable |
| Reach | does not contain SVHC |
| Width | 85 mm |
| Height | 38 mm |
| Length | 246 mm |
| Weight | 75 g |
| Stripping capacities in square millimetres | 0.2 - 4 mm² |
| Stripping capacities round cable (diameter) | 8 - 13 mm |
