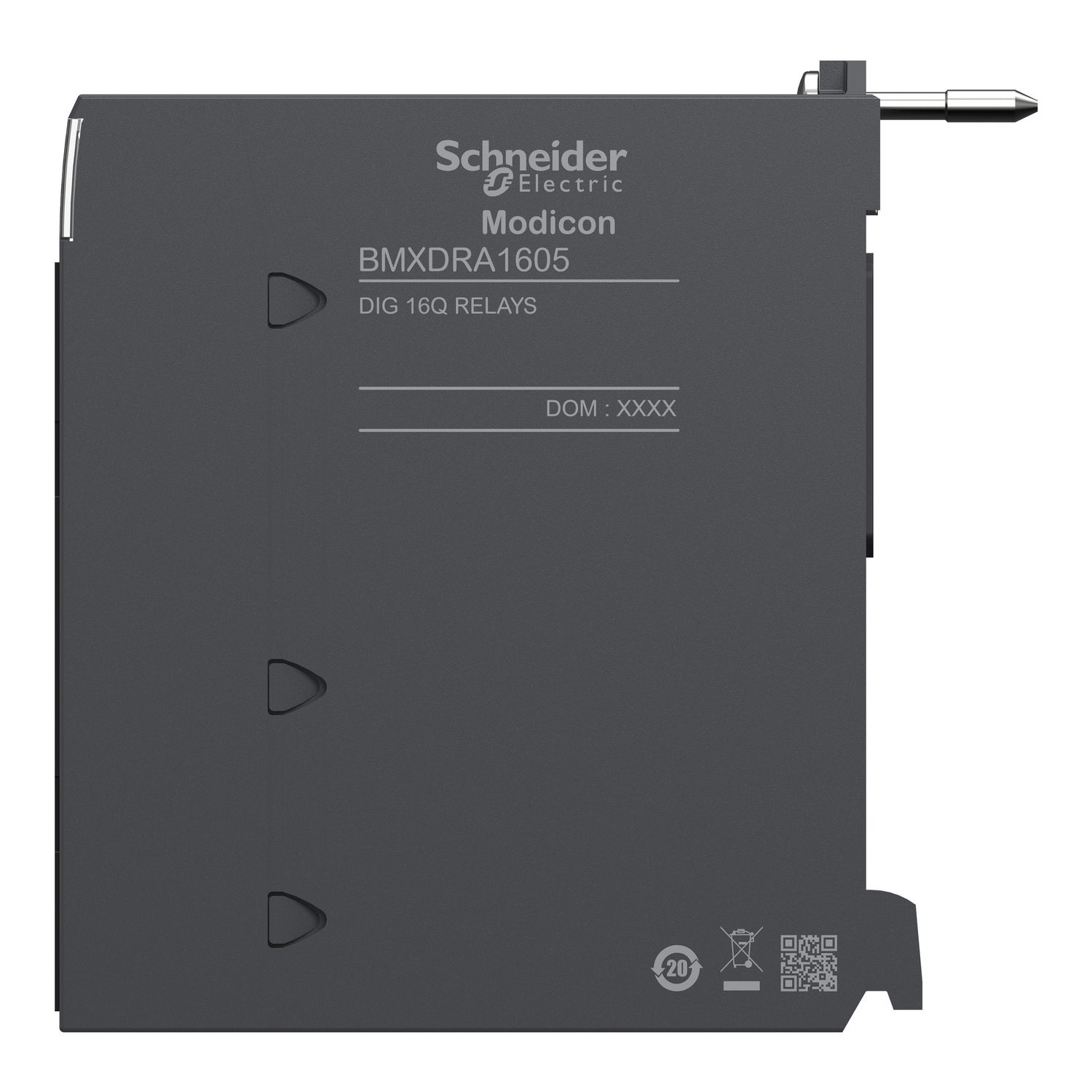

Discrete output module X80 - 16 outputs - relay - 24 V DC or 24...240 V AC
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Product identifiers
SKU: BMXDRA1605
EAN: 3595863909234
GTIN: 3595863909234
MPN: BMXDRA1605
Loyalty points: 102
Price range: £ 215.87 - £ 256.51 Excl. VAT
Categories
Features
|
Depth
|
150 mm
|
|
Width
|
33 mm
|
|
Height
|
100 mm
|
|
Redundancy
|
FALSE
|
|
Output current
|
2 A
|
|
Supply voltage DC
|
|
|
Type of digital output
|
Relay
|
|
Type of output voltage
|
AC/DC
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
0
|
|
Input current at signal 1
|
0.65 mA
|
|
Number of digital outputs
|
16
|
|
Permitted voltage at input
|
|
|
SIL according to IEC 61508
|
None
|
|
Digital inputs configurable
|
FALSE
|
|
Permitted voltage at output
|
|
|
Time delay at signal change
|
|
|
Type of electric connection
|
Plug-in connection
|
|
Digital outputs configurable
|
FALSE
|
|
Suitable for safety functions
|
FALSE
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Type of voltage (input voltage)
|
AC/DC
|
|
Appendant operation agent (Ex ia)
|
FALSE
|
|
Appendant operation agent (Ex ib)
|
FALSE
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Short-circuit protection, outputs available
|
TRUE
|
|
Performance level according to EN ISO 13849-1
|
None
|
