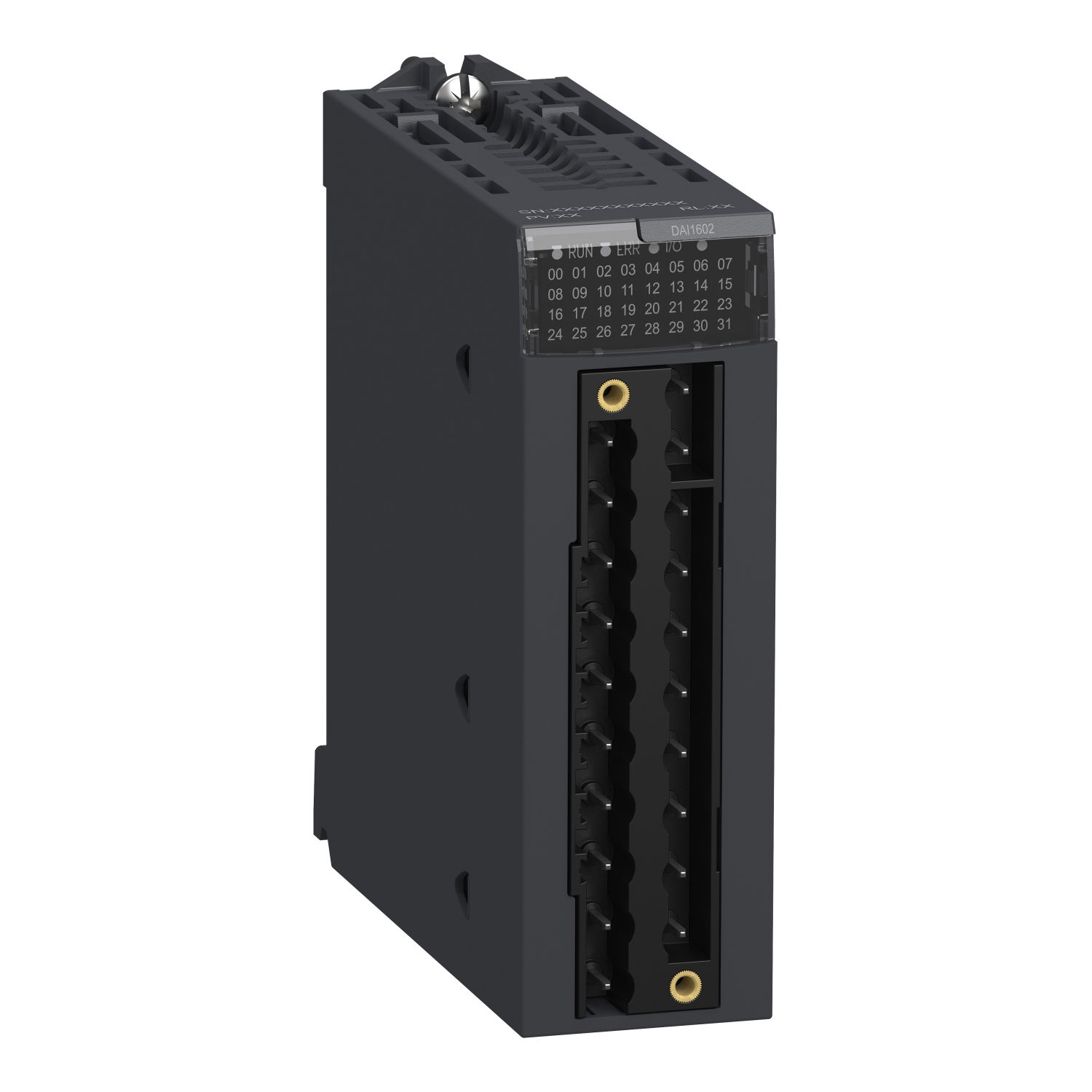

Discrete input module X80 - 16 inputs - 24 V AC/DC negative

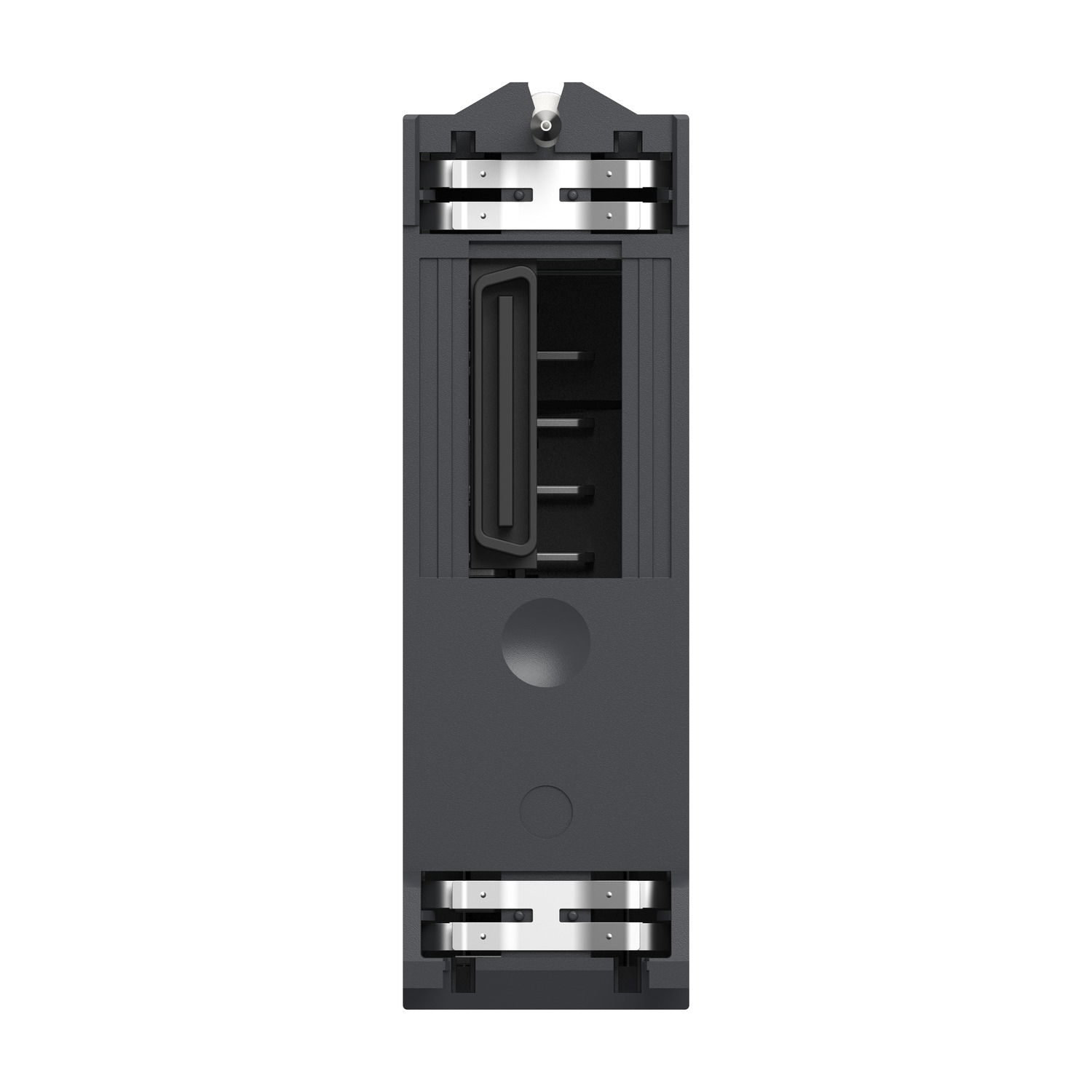

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 2 of 7

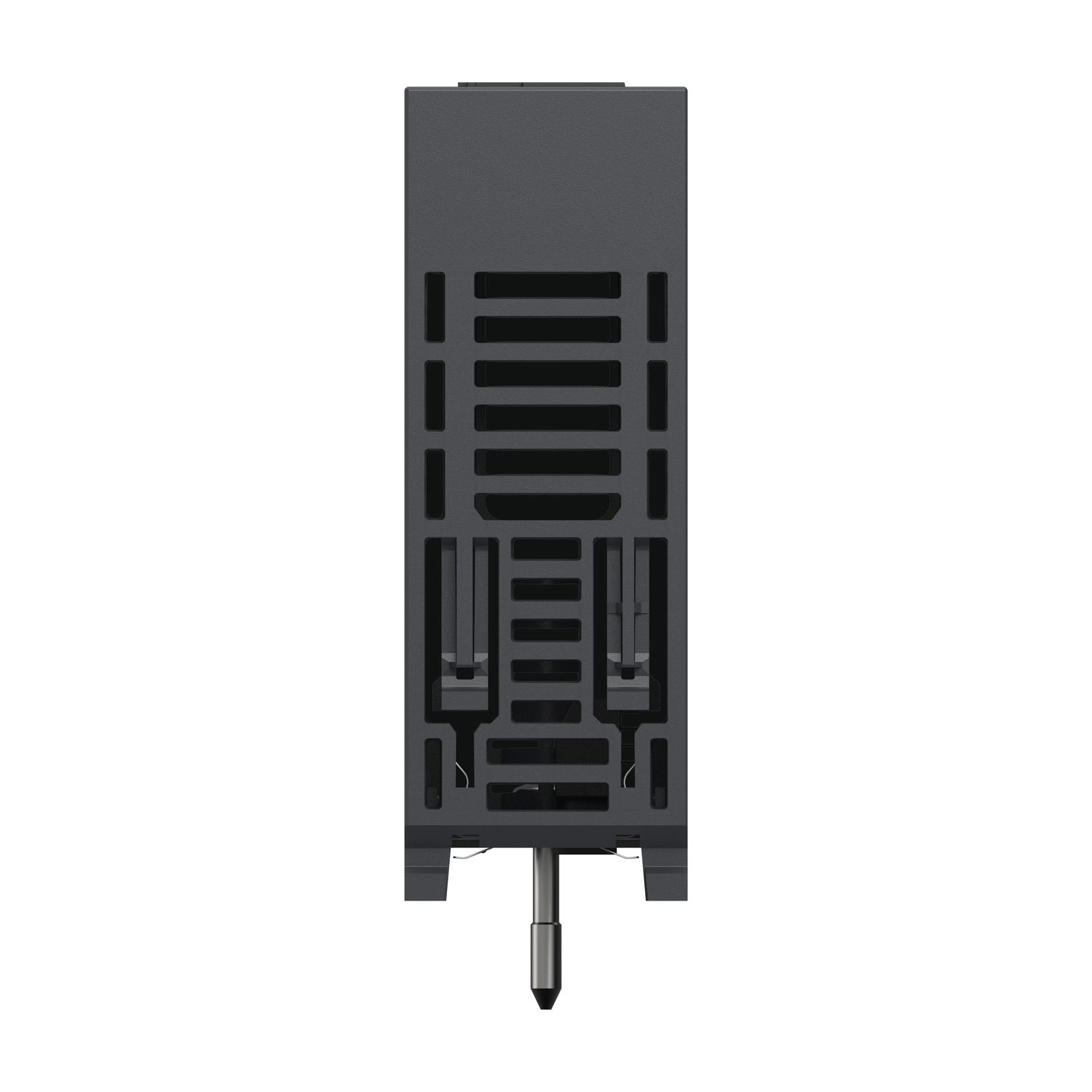

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 3 of 7

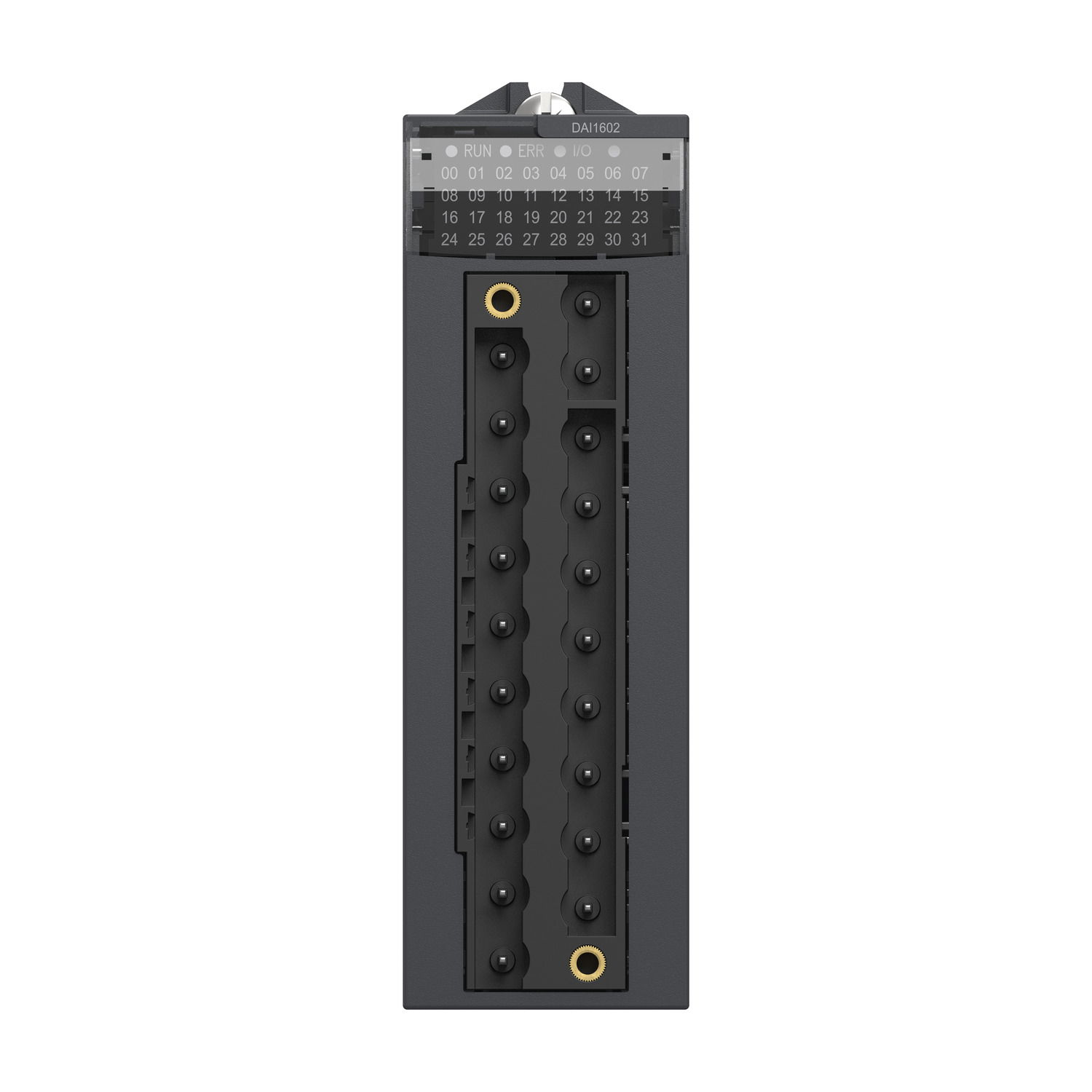

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 4 of 7

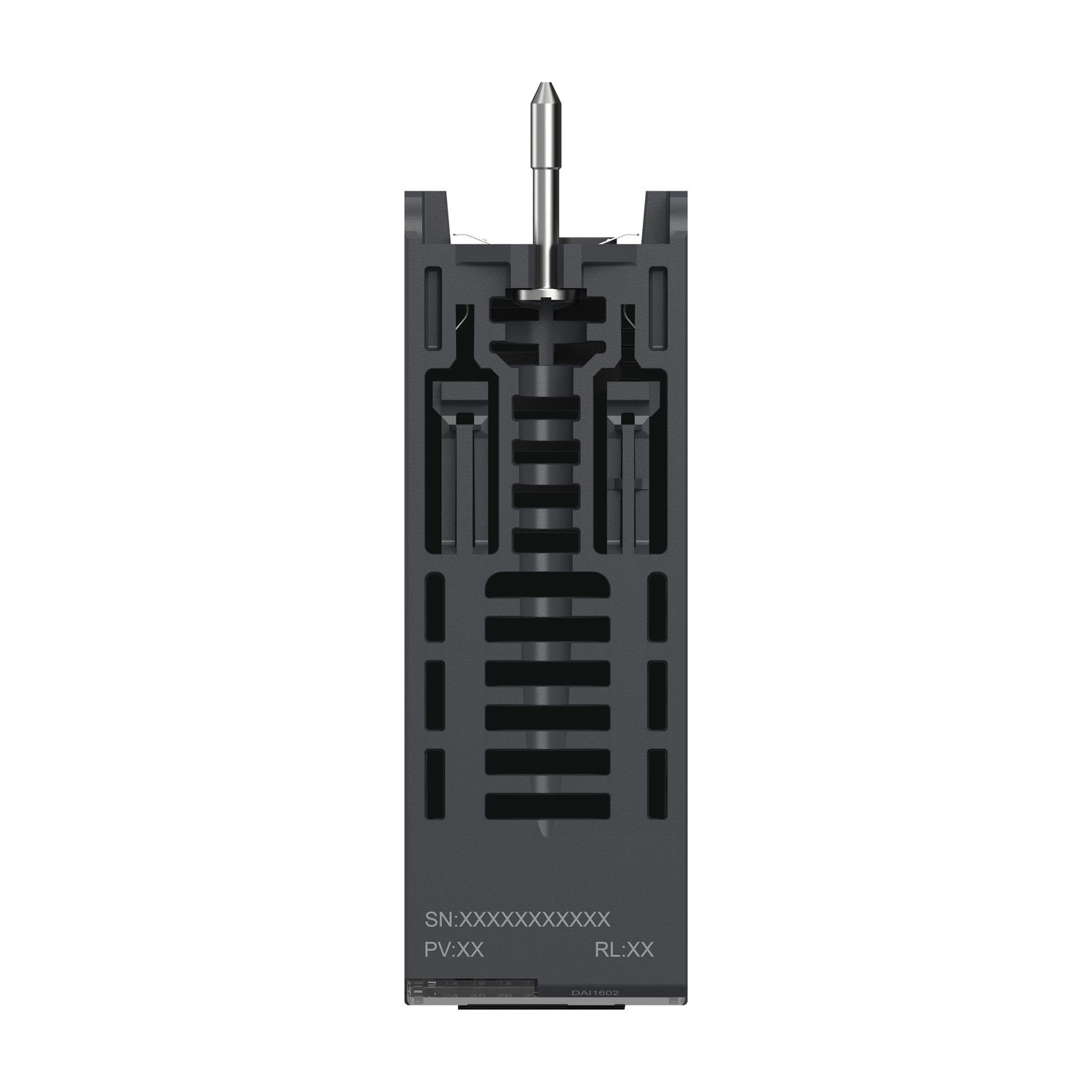

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 5 of 7

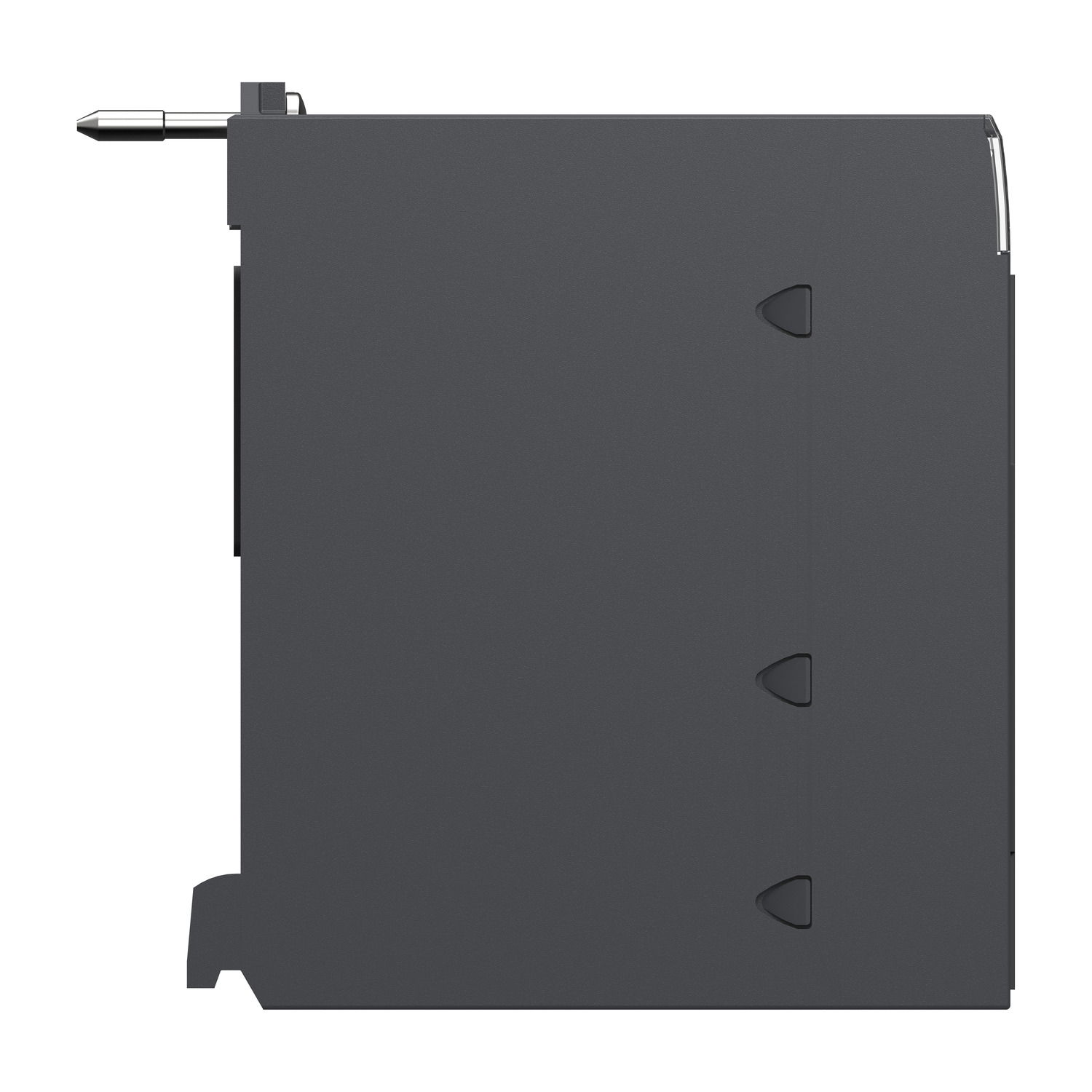

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 6 of 7

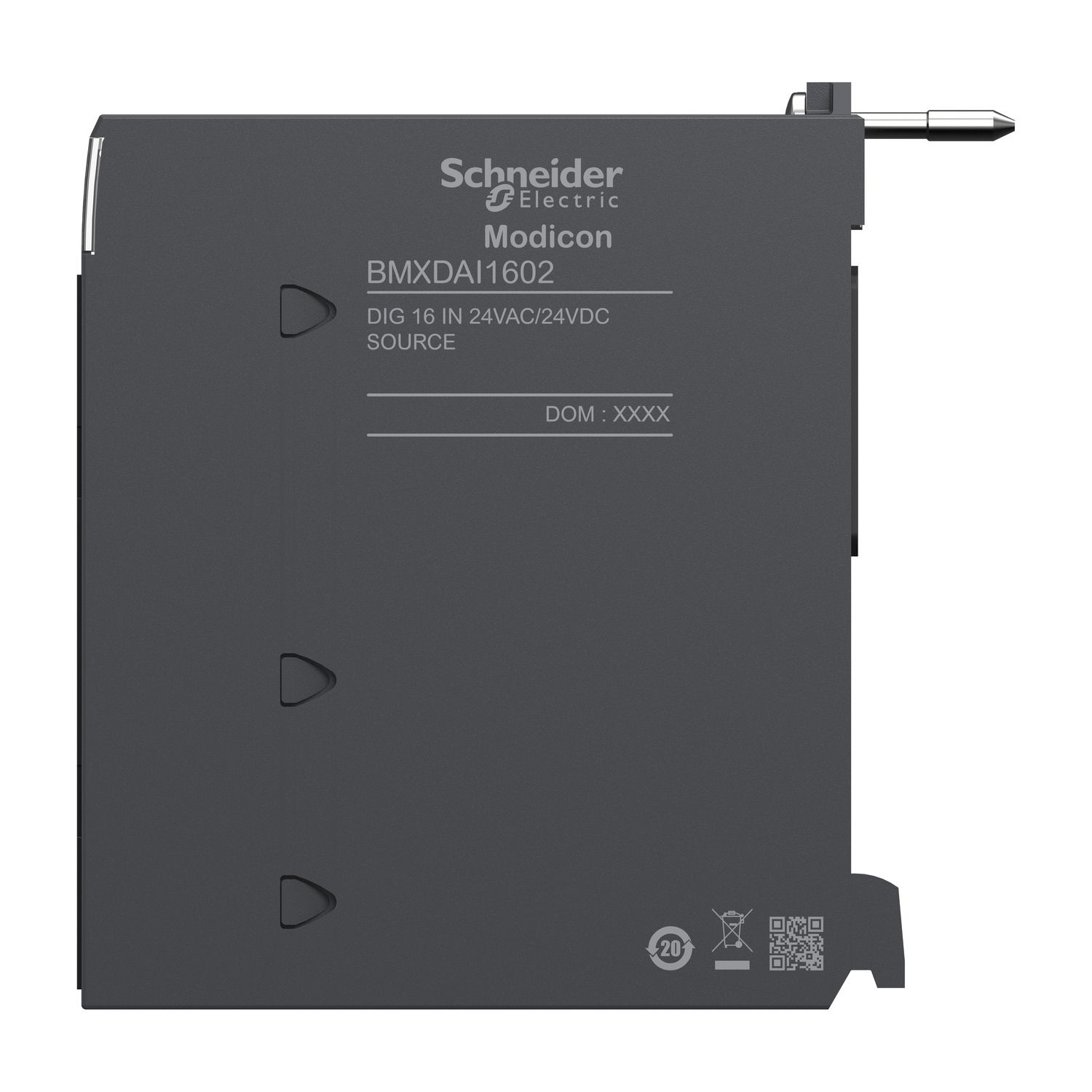

Discrete input module X80 - 16 inputs - 24 V AC/DC negative – Image 7 of 7

1 / 7

Discrete input module X80 - 16 inputs - 24 V AC/DC negative

Name: Discrete input module X80 - 16 inputs - 24 V AC/DC negative
Brand: Schneider Electric
SKU: BMXDAI1602
Availability: InStock

Discrete input module X80 - 16 inputs - 24 V AC/DC negative by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £230.81 excl. VAT. Voltimum+ members earn 28 points per unit.

This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Product identifiers

SKU: BMXDAI1602

EAN: 3595863966800

GTIN: 3595863966800

MPN: BMXDAI1602

Loyalty points: 28

Price: £ 230.81 Excl. VAT

Specifications

Depth	150 mm
Width	33 mm
Height	100 mm
Redundancy	no
Output current	-
Supply voltage DC
Type of digital output	None
Type of output voltage	AC/DC
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Number of digital inputs	16
Input current at signal 1	3 mA
Number of digital outputs	0
Permitted voltage at input
SIL according to IEC 61508	None
Digital inputs configurable	no
Permitted voltage at output
Time delay at signal change
Type of electric connection	Plug-in connection
Digital outputs configurable	no
Suitable for safety functions	no
Voltage type (supply voltage)	AC/DC
Type of voltage (input voltage)	AC/DC
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	None
Explosion safety category for dust	None
Short-circuit protection, outputs available	no
Performance level according to EN ISO 13849-1	None
