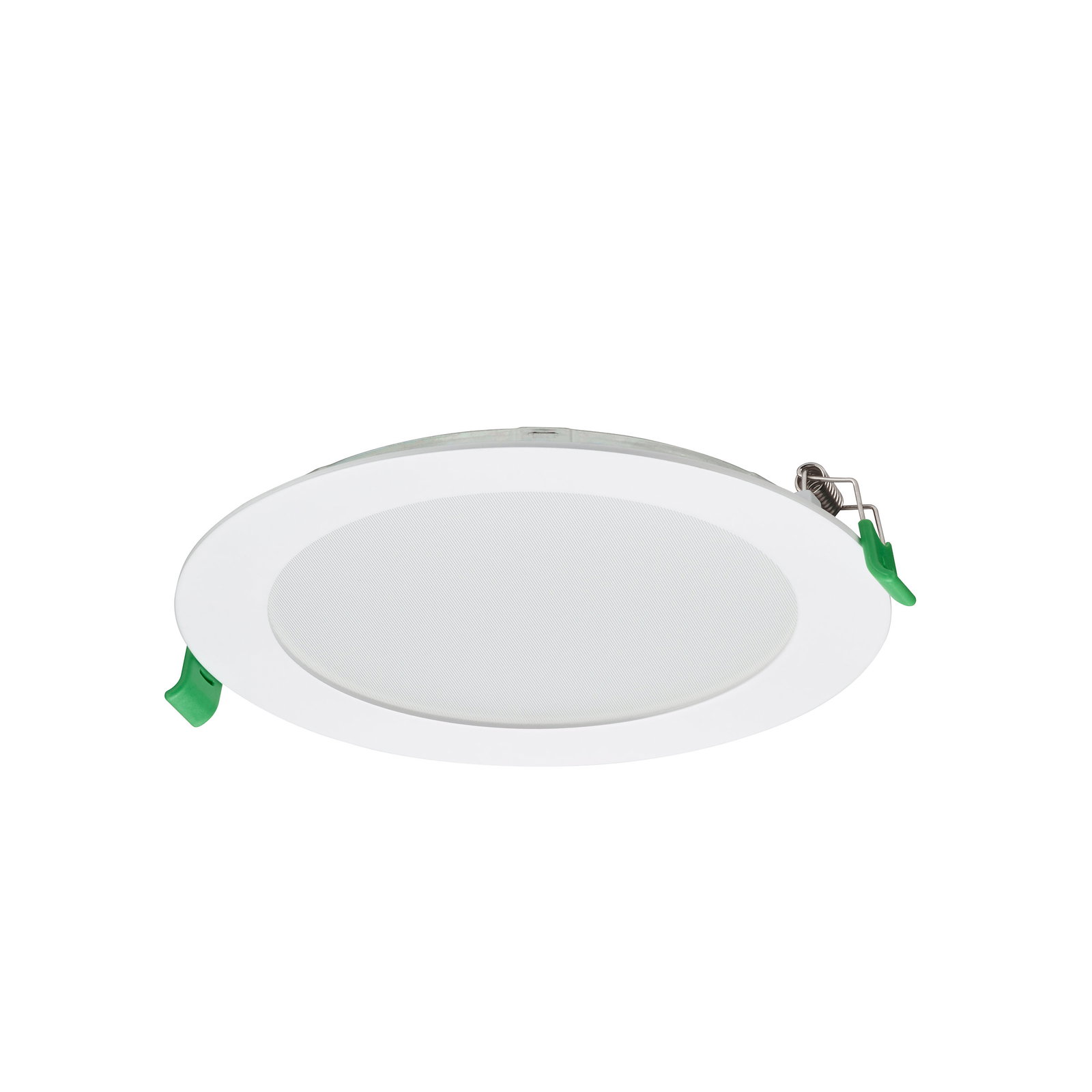

CoreLine SlimDownlight, 10 W, 1080 lm, 1150 lm, 3000 K, 4000 K, Wireless, Interact Ready, Textured
Philips

CoreLine SlimDownlight, 10 W, 1080 lm, 1150 lm, 3000 K, 4000 K, Wireless, Interact Ready, Textured

Aluminium die-cast, White, Signal white (RAL9003), Wireless driver Interact System-ready external, 1080 lm, 1150 lm, 10 W, 115 lm/W, 108 lm/W, 3000 K, 4000 K, (0.43,0.40) SDCM3; (0.38,0.38) SDCM3, Beam angle 90°, Symmetrical, Textured, Polycarbonate, IP20 (IP44 front), IK03 | 0.3 J, Safety class II, Push-in connector 6-pole

Product identifiers

SKU: 911401894887

Price: £ 0.00 Excl. VAT

Categories

LED Downlights LED Lighting LED Lighting & Luminaires

Specifications

Cable -
CE mark Yes
Dimmable Yes
ENEC mark ENEC mark
Connection Push-in connector 6-pole
Optic type Beam angle 90°;Symmetrical
Inrush time 0.056 ms
Input Voltage 220 to 240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 4.9 A
Optic material Polymethyl methacrylate
Overall length 170 mm
Warranty period 5 years
Overall diameter 170 mm
EU RoHS compliant Yes
Flammability mark For mounting on normally flammable surfaces
Reflector material Polycarbonate
Initial chromaticity (0.43,0.40) SDCM<lt/>3; (0.38,0.38) SDCM<lt/>3
Constant light output No
Luminous flux tolerance -10% / +10%
Ambient temperature range -20 to +40 °C
Unified Glare Rating (CEN) 28
Optical cover/lens material Polycarbonate
Colour rendering index (CRI) <gt/>80
Driver/power unit/transformer Wireless driver Interact System-ready external
Luminous efficacy (rated) (nom.) 115 lm/W;108 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h L80
