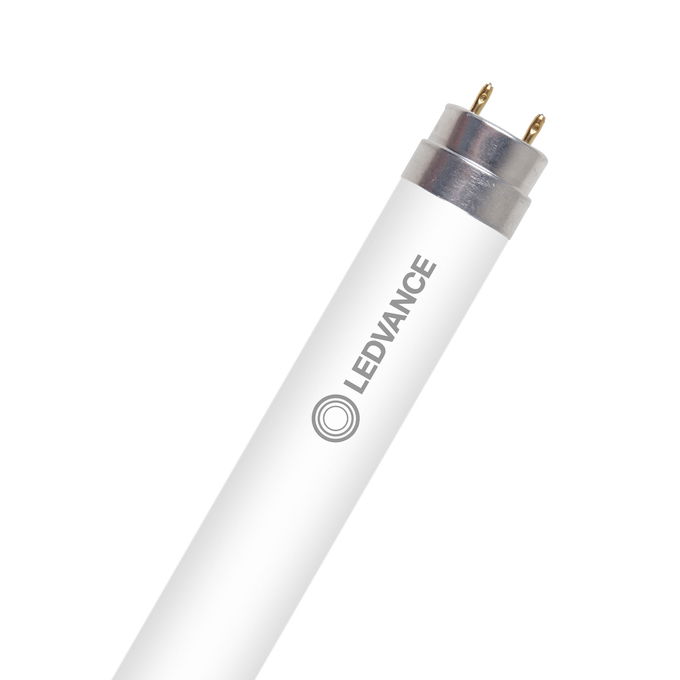

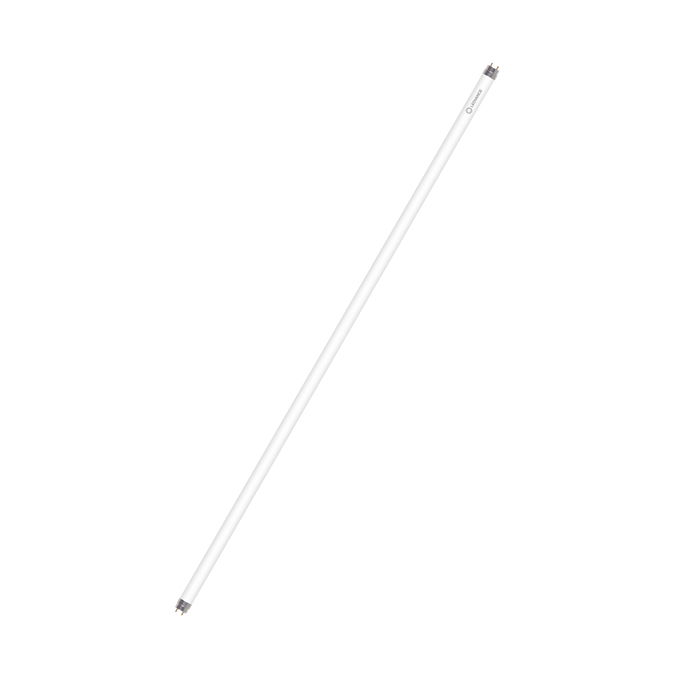

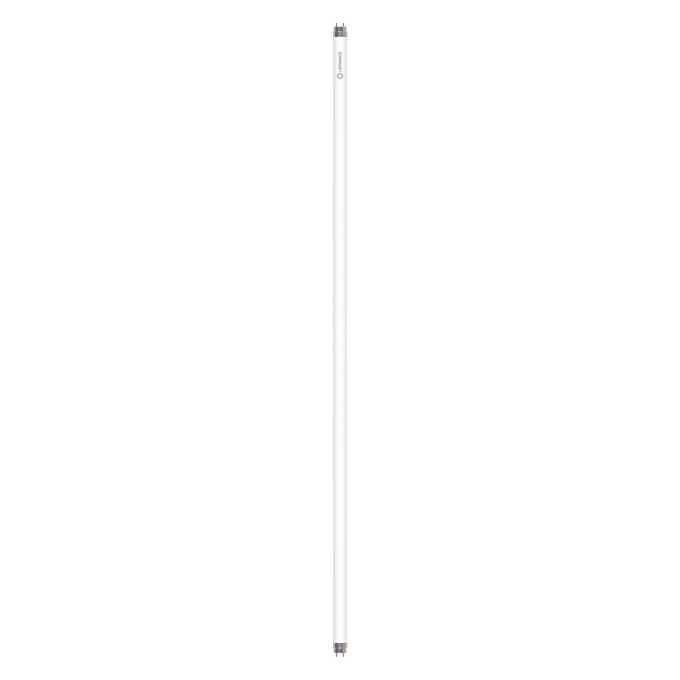

LED TUBE T8 EXTERNAL 1200 mm 15W 865
Product benefits
- Simple upgrade to dimmable LED system
- Shatter protection thanks to special PET coating
- No bending thanks to glass tube
- 5 years guarantee
Areas of application
- Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
- Linear lighting for office, education, storage areas and retail
- Shops, supermarkets
Product features
- Designed to power only with LED DRIVER LED TUBE EXTERNAL DALI
- Lamp tube made of glass with splinter protection
- Quality dimming of 1…100 %
- High resistance to switching loads
- Suitable for ambient temperatures from -20…+50 °C
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Disconnect mains before installation.
- All electrical connections must be made by a qualified person.
References / Links
- For current information see www.ledvance.com/ledtube
Product identifiers
SKU: 4058075730618
EAN: 4058075730618
GTIN: 4058075730618
MPN: 4058075730618
Price: £ 9.88 Excl. VAT
Categories
ETIM Group
Videos
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Capabilities
| Dimmable | Yes |
Electrical data
| Nominal wattage | 15 W |
| Nominal voltage | 42 V |
| Operating mode | EXT 1) |
