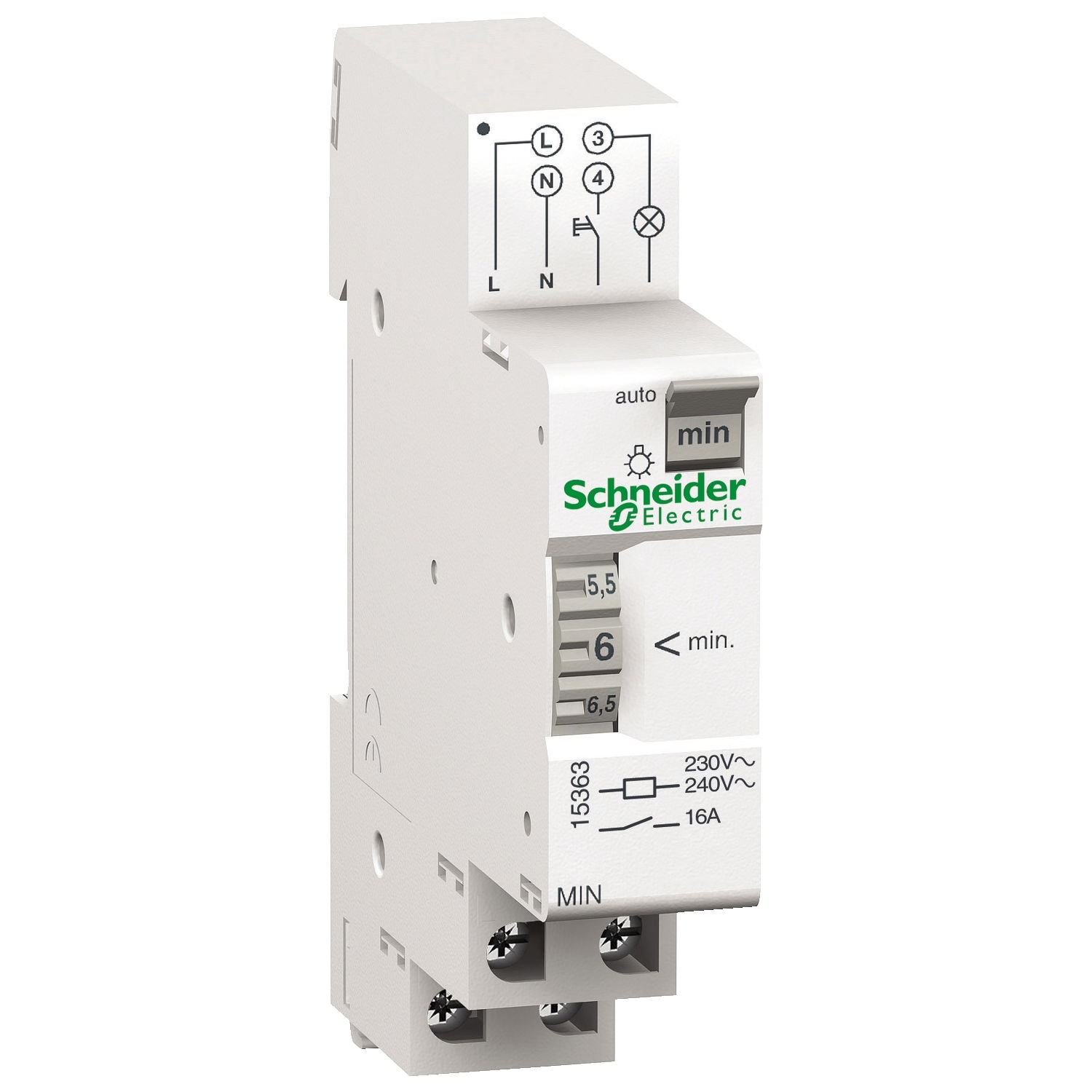

Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes

Link copied
SKU
EAN
GTIN
MPN

Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and Rexel Group. It is currently in stock at 1 of them. Trade price £140.32 excl. VAT. Voltimum+ members earn 16 points per unit.

MIN electromechanical staircase timers. Width of 18mm (2 modules of 9mm). Closing and then opening of a contact in a determined time. Adjustable time delay 1 to 7 minutes. Control circuit with connected standard, or luminous 230V push buttons. Manual override is possible.

Voltimum+ Loyalty Programme Loyalty points: 16

Price: £ 140.32 Excl. VAT

Specifications

Function Other
Repetitive None
Release-delay
Wiring system 3 and 4 wire configuration
Built-in depth 68 mm
Supply voltage
Mounting method DIN rail
Control voltage 1
Power consumption -
Max. switching power LED -
Type of control voltage 2 -
Frequency control voltage 1
Max. incandescent lamp load 2300 W
Push button glow-lamp current 50 mA
Current surge function selectable no
Max. switching current (cos phi = 0.6) 10 A
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 0
