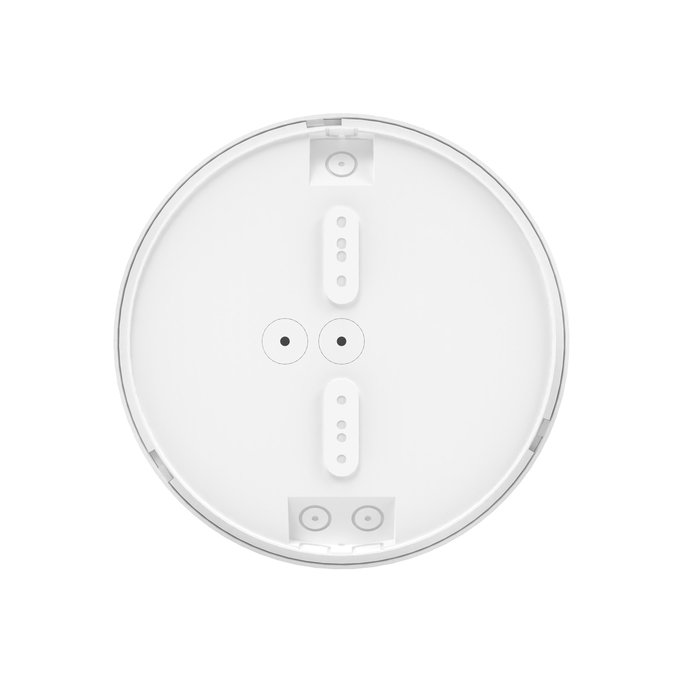

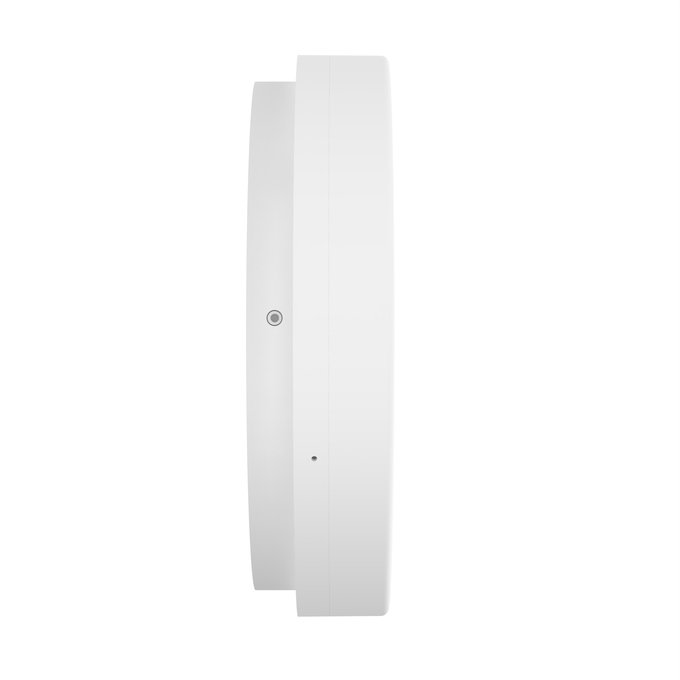

SF DISC SNM 220 V 14W ML 83040

Product benefits

• Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
• For 300 mm version: optional wired leader/follower function
• Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
• Indoor luminaire with high luminous efficacy up to 120 lm/W
• High color consistency with SDCM 3
• Tool-free electrical connection due to push button connector
• Easy locking system to prevent unauthorized access

Areas of application

• Direct replacement for surface luminaires with integrated CFLni lamps
• Corridors
• Stairways
• Bathrooms
• Foyers

Product features

• High frequency sensor for daylight, motion detection and corridor function
• Type of protection: IP54 (wall and ceiling)
• Impact resistance: IK10
• Lifetime (L80/B10): up to 75,000 h (at 25 °C)
• Polycarbonate (PC) housing, PC-diffuser
• Ambient temperature in operation: -20…+45 °C
• Glow Wire Test according to IEC 60695-2-12: 850 °C
• 3- or 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
• Through-wiring possible
• Indoor use only, not suitable for outdoor use
• SF DISC family versions available: dimmable, on/off, DALI-2, sensor and/or emergency lighting function

Equipment / Accessories

• Mounting screws and dowels included

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.

References / Links

• For Guarantee see www.ledvance.com/guarantee
