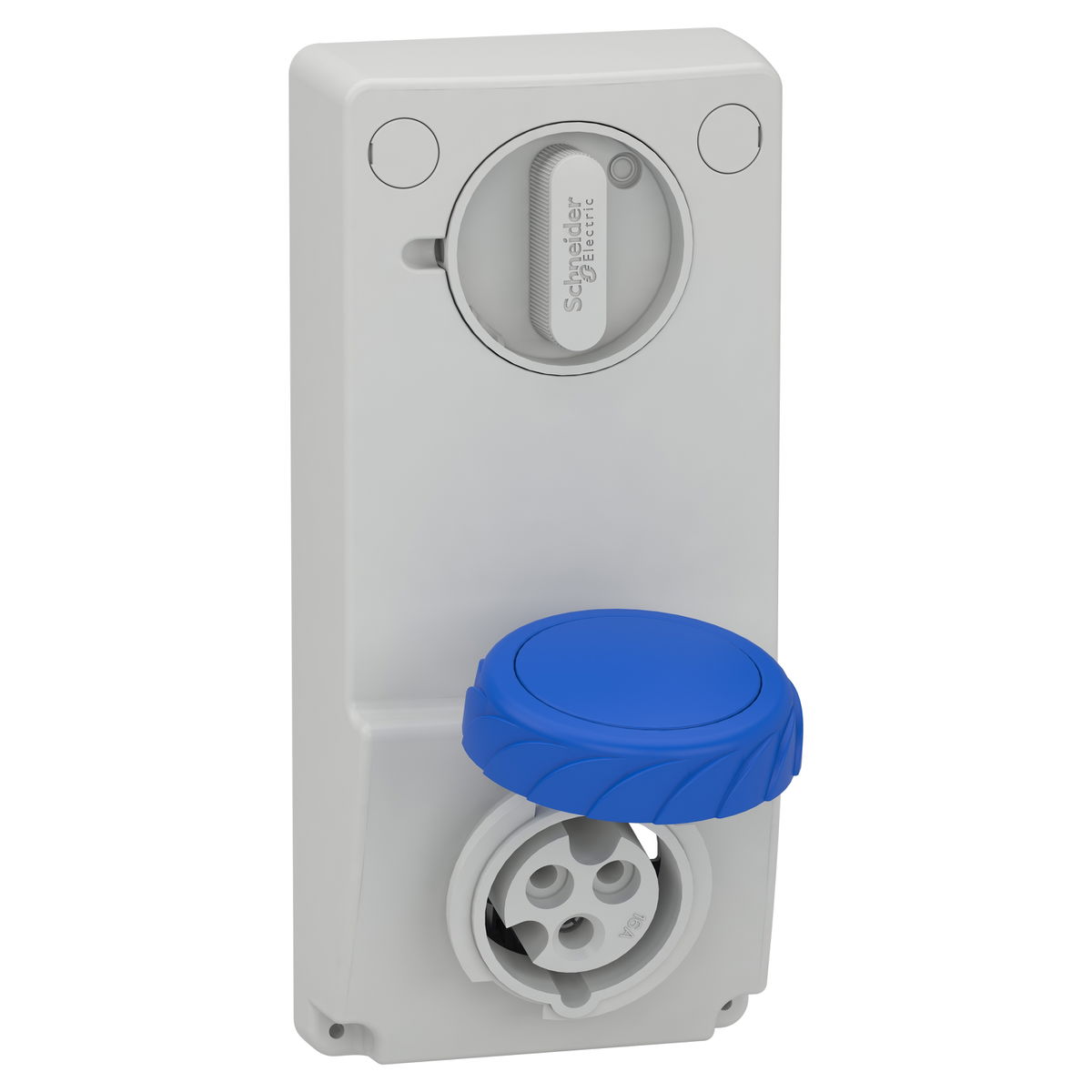

Unika interlocked socket - 16 A - 2P + E - 200...250 V AC - IP65 - panel
1 / 2
Unika interlocked socket - 16 A - 2P + E - 200...250 V AC - IP65 - panel
- SKU
- EAN
- GTIN
- MPN
This PratiKa industrial interlocked socket with captive screws connection is panel-mounted. It has 2P+E pole, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 103mm x (H) 225mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 25mm for 10mm² cables. The color of the socket is grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Loyalty points:
46
Price: £ 274.00 Excl. VAT
Specifications
| Model | Top cover |
| Switch | Mechanical locking |
| Power loss | - |
| Protection | None |
| IEC-amperage | 16 A |
| Military model | no |
| Type of switch | Auxiliary contacts |
| Number of poles | 2 |
Documents
Declaration of Conformity (Sustainability)
82081 REACh Regulation
Product data sheet
Catalog
Catalogue PratiKa Plugs and Sockets
Catalog
Catalogue PratiKa Plugs and Sockets
Declaration of Conformity (Sustainability)
82081 EU RoHS Directive
Declaration of Conformity (Sustainability)
82081 POP Directive
Declaration of Conformity (Sustainability)
82081 OECD PFAS Regulation
Environmental Disclosure
Mureva PKB - Interlocked Socket - 16A - 2P+E - Product Environmental Profile
