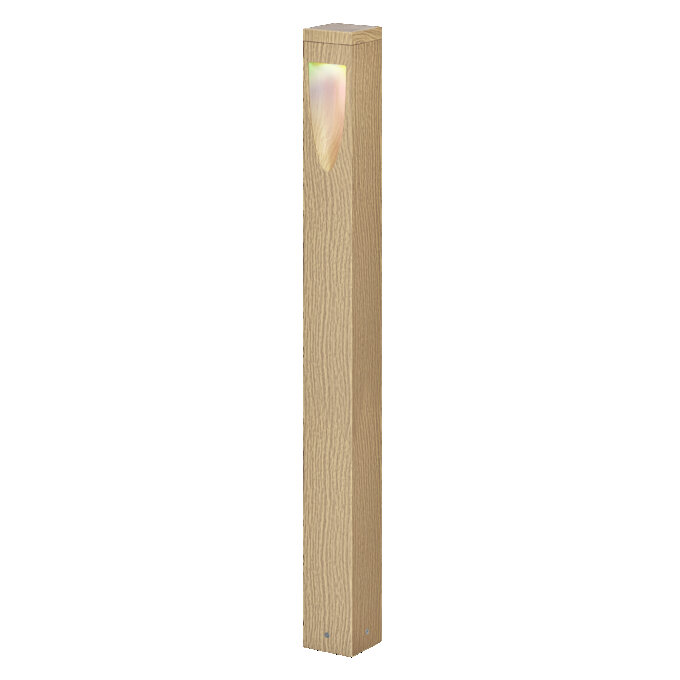

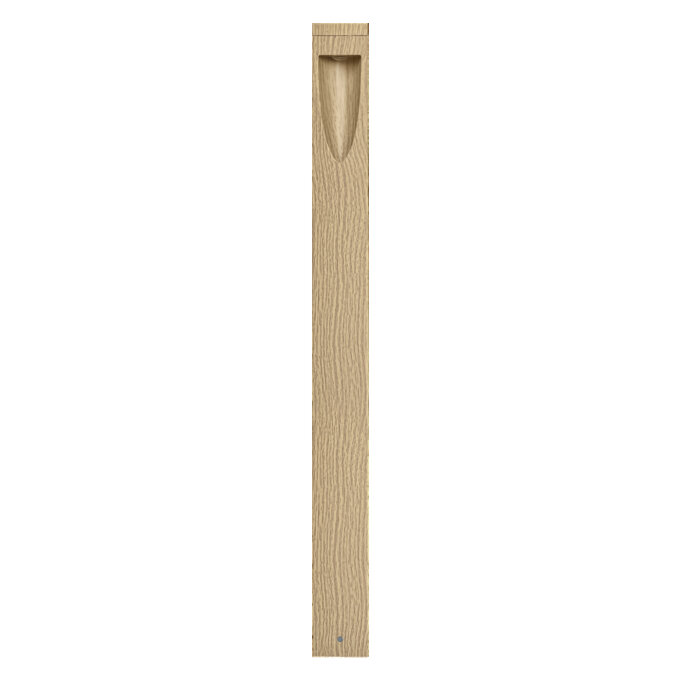

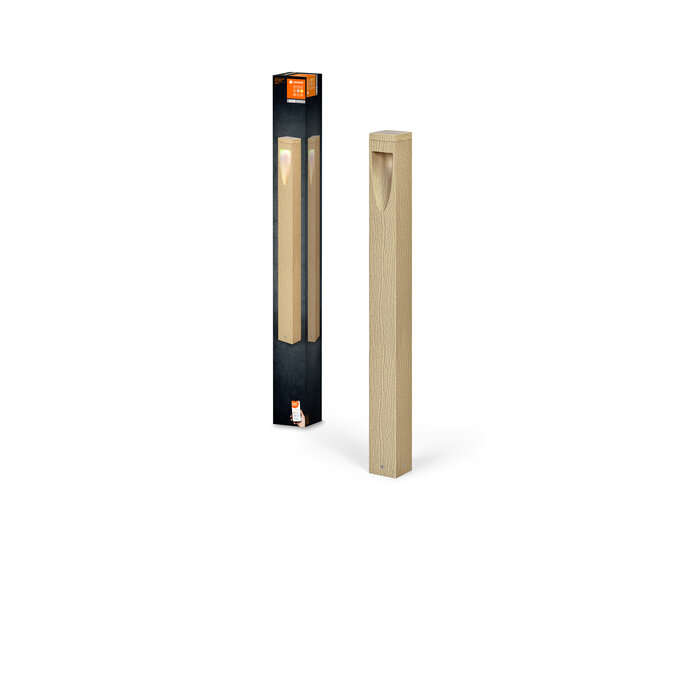

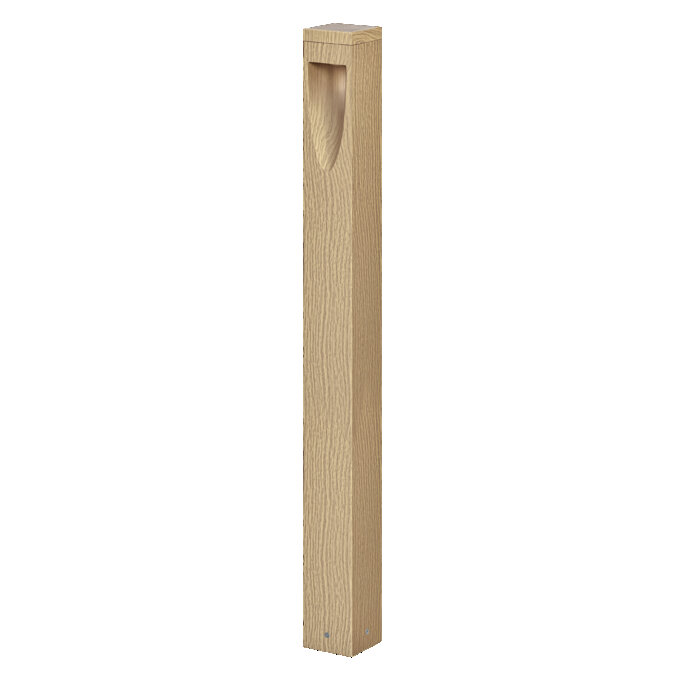

SMART+ Wifi Trunk SQ Wall 80cm RGB + W

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
  • High-quality materials
  • Uses multi color and cold or warm white light for most flexible lighting scenes
  • Combines the functionality of general lighting and mood lighting
Areas of application
  • General illumination
  • Outdoor use (IP44)
  • Gardens
  • Patios, balconies
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • RGB color control
  • Dimmable
  • Color temperature: 3,000 K (Warm White)
  • Network protocol: WiFi
  • Type of protection: IP44
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Control via app or voice control requires compatible Smart home system
  • Mounting screws and dowels included
  • Power supply included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links

Product identifiers

SKU: 4058075763388
EAN: 4058075763388
GTIN: 4058075763388
MPN: 4058075763388

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500

Electrical data

Nominal wattage 7.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 50.000 mA
Power factor λ > 0.60
Protection class I

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

User instruction / safety instructions – SMART OUTD WIFI TRUNK SQ
Open
Declarations of conformity UKCA – SMART OUTD WIFI RGBW
Open
Declarations of conformity UKCA – SMART OUTD WIFI
Open
EU Data Act – SMART WiFi Lamps and Luminaires
Open

Product Images And Graphics

Product image: white background, upright – SMART OUTD WIFI TRUNK SQ 80CM RGBW
Open
Product image: white background, upright, alternative image – SMART OUTD WIFI TRUNK SQ 80CM RGBW
Open
Product image: white background, upright, switched on – SMART OUTD WIFI TRUNK SQ 80CM RGBW
Open
