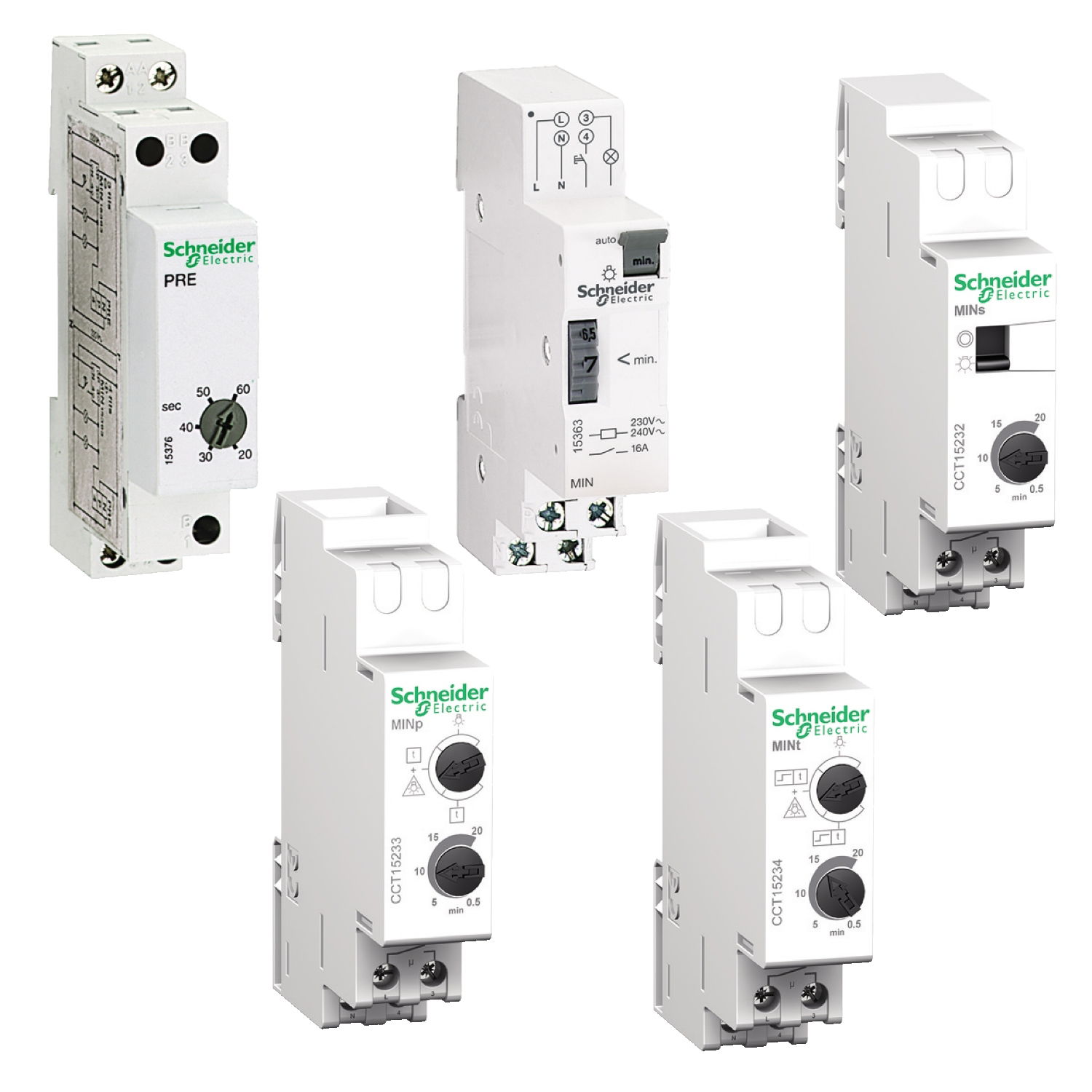

Acti9 - MINp - silent electronic timer - adjustable from 0.5 to 60 minutes

Acti9 - MINp - silent electronic timer - adjustable from 0.5 to 60 minutes by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £185.91 excl. VAT. Voltimum+ members earn 30 points per unit.

The Acti 9 MINp timer allows closing and then opening of a contact in a determined time. It also provides warning that the lighting is about to be switched off by flickering of the lamplight (switch-off warning). The Time delay is adjustable from 0.5 to 20 min. Functions: Three operating modes triggered by switch on front face. Timer mode with switch-off warning function built into the device. The lamp blinks 40 and 30 s before the end of the time delay. Timer mode mode without switch-off warning function. Permanent mode with constant lighting. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption <6 VA. Operating temperature -25°C to +50°C. Width (9 mm modules): 2. Insulation class: Class II. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. Time delays (On and Off): Adjustable from 0.5 to 20 min. Number of channels: 1.

Product identifiers

SKU: CCT15233
EAN: 3303431062638
GTIN: 3303431062638
MPN: CCT15233

Voltimum+ Loyalty Programme Loyalty points: 30

Price: £ 185.91 Excl. VAT

Categories

Switchgear Low Voltage Switchgear Switchgear & Circuit Protection LED Lighting & Luminaires Lighting Controls

ETIM group

Devices for distribution board-/surface mounting

Specifications

Function Electronic with switching-off pre-warning
Repetitive None
Release-delay
Wiring system 3 and 4 wire configuration
Built-in depth 66 mm
Supply voltage
Mounting method DIN rail
Control voltage 1
Power consumption -
Max. switching power LED -
Type of control voltage 2 -
Frequency control voltage 1
Max. incandescent lamp load 3600 W
Push button glow-lamp current -
Current surge function selectable no
Max. switching current (cos phi = 0.6) 16 A
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 0
