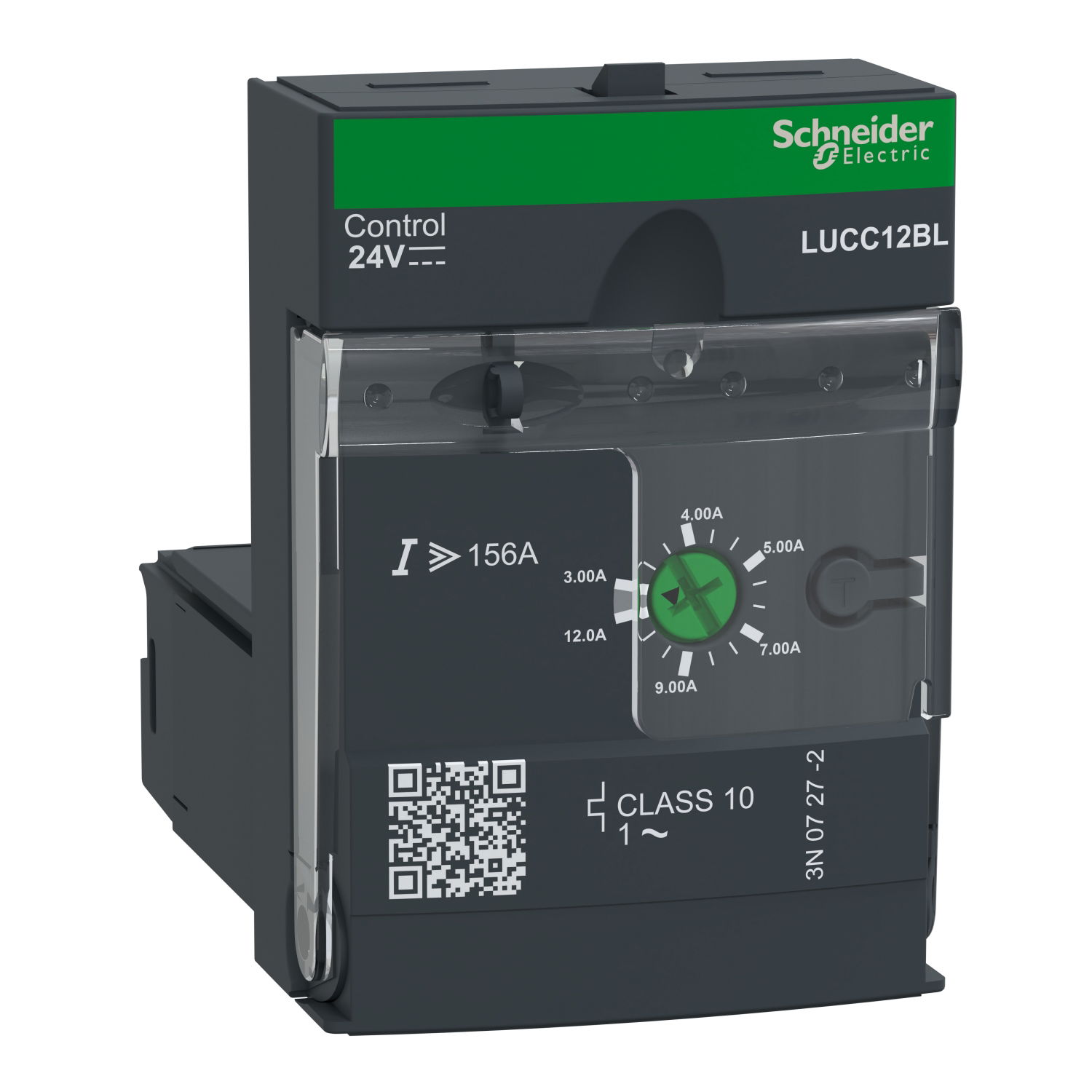

Advanced control unit, TeSys U, 3-12A, 1P motors, protection & diagnostic, class 10, coil 24V DC

Name: Advanced control unit, TeSys U, 3-12A, 1P motors, protection & diagnostic, class 10, coil 24V DC
Brand: Schneider Electric
SKU: LUCC12BL
Availability: InStock

Advanced control unit, TeSys U, 3-12A, 1P motors, protection & diagnostic, class 10, coil 24V DC by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 3 of them. Trade prices range from £71.53 to £124.39 excl. VAT. Voltimum+ members earn 15 points per unit.

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 2.2kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCC12BL

EAN: 3389110364491

GTIN: 3389110364491

MPN: LUCC12BL

Loyalty points: 15

Price range: £ 71.53 - £ 124.39 Excl. VAT

Specifications

Depth	60 mm
Width	45 mm
Height	66 mm
With fuse	no
Release class	CLASS 10
With transformer	no
Power consumption	-
Type of motor starter	Other
External reset possible	no
Degree of protection (IP)	IP40
Number of indicator lights	0
Rated operation current Ie	3 A
Suitable for rail mounting	yes
Voltage type for actuating	DC
With short-circuit release	yes
Degree of protection (NEMA)	-
Number of command positions	0
Suitable for emergency stop	no
Supporting protocol for ASI	no
Supporting protocol for CAN	no
Supporting protocol for LON	no
Supporting protocol for Modbus	no
Supporting protocol for SERCOS	no
Supporting protocol for TCP/IP	no
Rated control supply voltage DC
Supporting protocol for SUCONET	no
Overload release current setting
Supporting protocol for INTERBUS	no
Supporting protocol for PROFIBUS	no
Supporting protocol for DeviceNet	no
Supporting protocol for PROFIsafe	no
Rated power, 460 V, 60 Hz, 3-phase	-
Rated power, 575 V, 60 Hz, 3-phase	-
Supporting protocol for EtherNet/IP	no
Supporting protocol for PROFINET IO	no
Supporting protocol for SafetyBUS p	no
Rated operation power at AC-3, 400 V	2.2 kW
Supporting protocol for Data-Highway	no
Supporting protocol for PROFINET CBA	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current at AC-3, 400 V	12 A
Supporting protocol for INTERBUS-Safety	no
Supporting protocol for DeviceNet Safety	no
Supporting protocol for other bus systems	no
Ambient temperature, upper operating limit	70 °C
Supporting protocol for Foundation Fieldbus	no
Temperature compensated overload protection	yes
Coordination class according to IEC 60947-4-3	Class 2
Rated operation power at AC-3, 230 V, 3-phase	-
Type of electrical connection of main circuit	Screw connection
Supporting protocol for AS-Interface Safety at Work	no
Number of auxiliary contacts as normally open contact	0
Rated conditional short-circuit current, type 2, 230 V	3 A
Rated conditional short-circuit current, type 2, 400 V	12 A
Number of auxiliary contacts as normally closed contact	0
Rated conditional short-circuit current, type 1, 480 Y/277 V	3 A
Rated conditional short-circuit current, type 1, 600 Y/347 V	12 A
Type of electrical connection for auxiliary- and control current circuit	Screw connection
