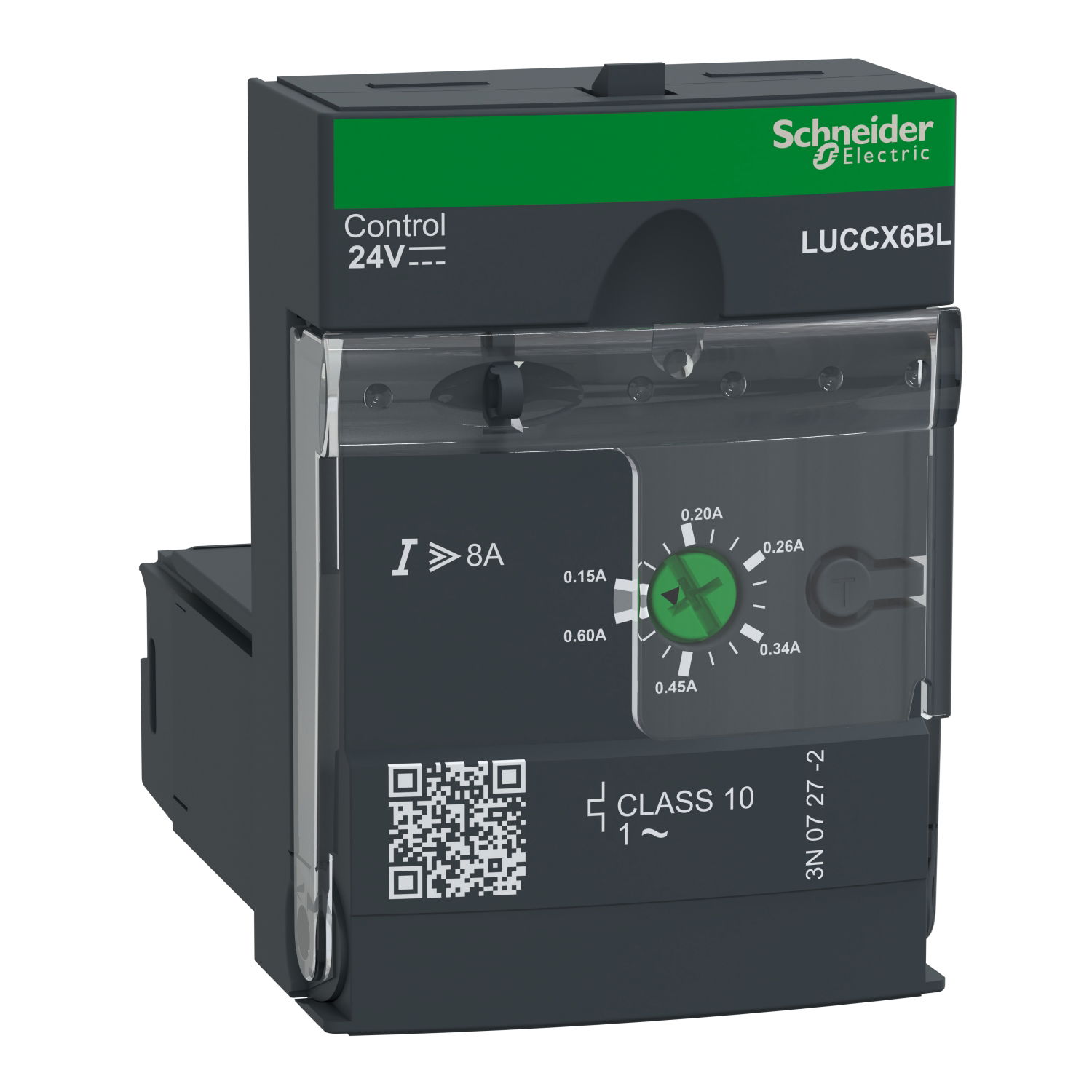

Advanced control unit, TeSys U, 0.15-0.6A, 1P motors, protection & diagnostic, class 10, coil 24V DC

Advanced control unit, TeSys U, 0.15-0.6A, 1P motors, protection & diagnostic, class 10, coil 24V DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £102.86 to £103.89 excl. VAT. Voltimum+ members earn 12 points per unit.

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 0.04kW@400V. It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCCX6BL
EAN: 3389110364460
GTIN: 3389110364460
MPN: LUCCX6BL

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 102.86 - £ 103.89 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 60 mm
Width 45 mm
Height 66 mm
With fuse no
Release class CLASS 10
With transformer no
Power consumption -
Type of motor starter Other
Degree of protection (IP) IP40
Rated operation current Ie 0.15 A
Voltage type for actuating DC
Degree of protection (NEMA) -
Suitable for emergency stop no
Supporting protocol for CAN no
Supporting protocol for Modbus no
Supporting protocol for TCP/IP no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet no
Rated power, 460 V, 60 Hz, 3-phase -
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for Data-Highway no
Rated control supply voltage AC 50 Hz
Rated operation current at AC-3, 400 V 0.6 A
Supporting protocol for DeviceNet Safety no
Ambient temperature, upper operating limit 70 °C
Temperature compensated overload protection yes
Rated operation power at AC-3, 230 V, 3-phase -
Supporting protocol for AS-Interface Safety at Work no
Rated conditional short-circuit current, type 2, 230 V 0.15 A
Number of auxiliary contacts as normally closed contact 0
Rated conditional short-circuit current, type 1, 600 Y/347 V 0.6 A
