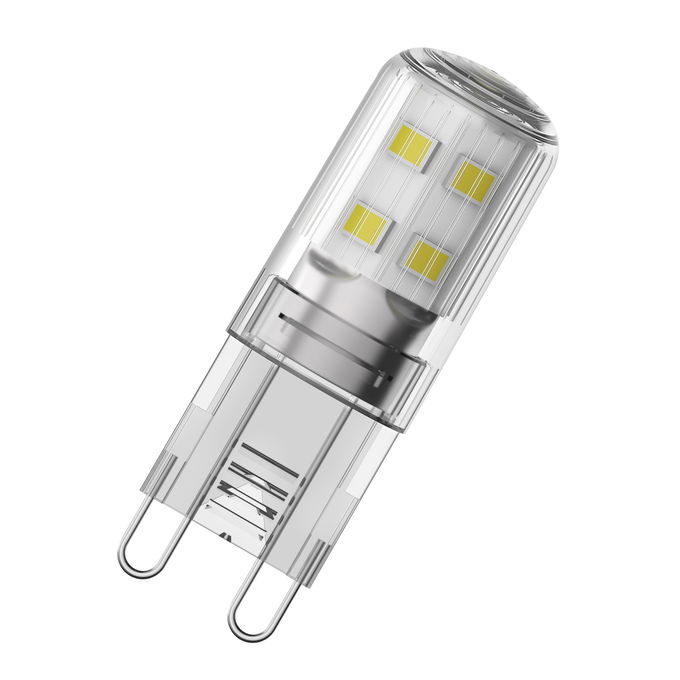

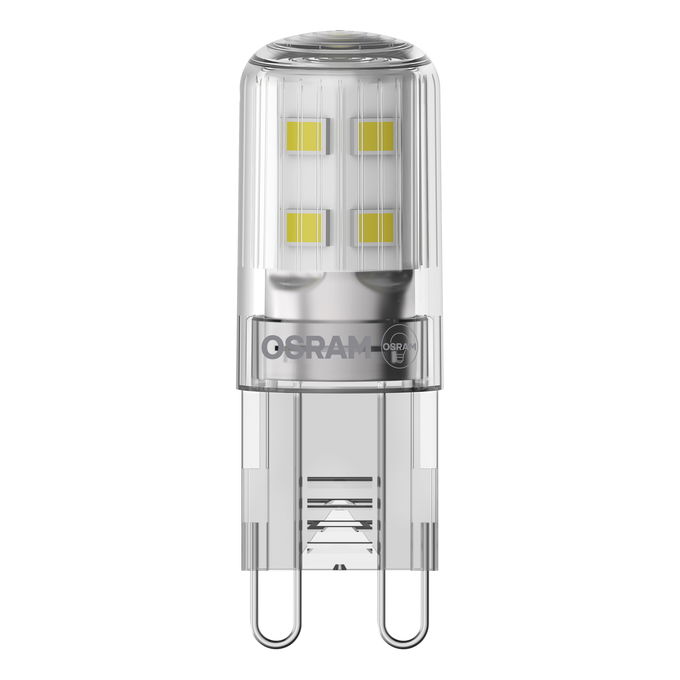

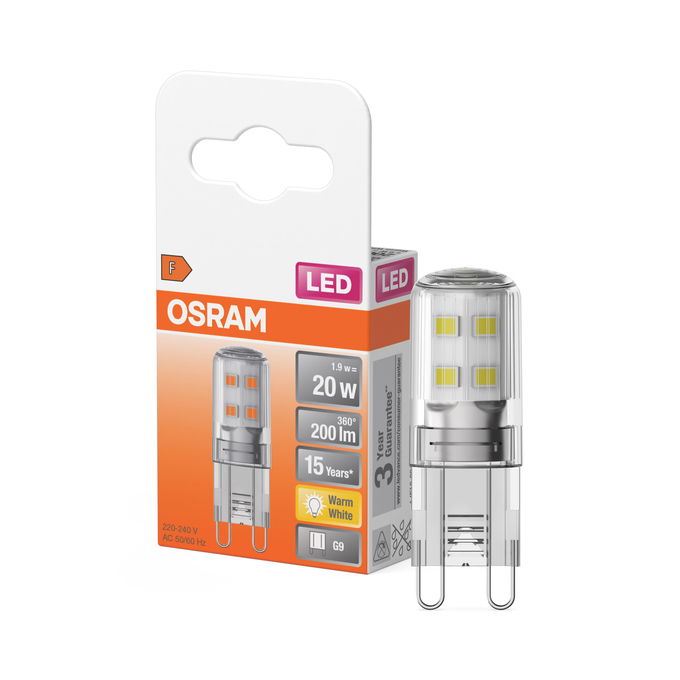

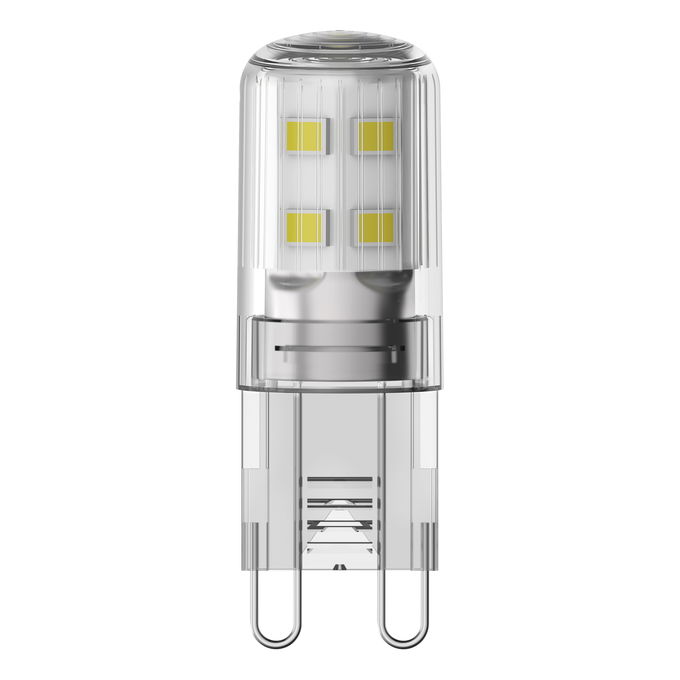

LED PIN 20 300° 1.9W 827 Clear G9

Product benefits

Good all-around light emission
Long lifetime of up to 15,000 h
Ideal for decorative and free-burning applications
Three year guarantee
Lower energy consumption than incandescent or halogen lamps

Areas of application

Atmospheric accent lighting throughout the home
Shops, hotels and restaurants
Outdoor use in suitable outdoor luminaires only

Product features

LED alternative to conventional high voltage lamps
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.
To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4058075432307

EAN: 4058075432307

GTIN: 4058075432307

MPN: 4058075432307

Price: £ 3.64 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93

Capabilities

Dimmable

Electrical data

Nominal wattage	1.9 W
Construction wattage	1.90 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	20 W
Nominal current	17 mA
Type of current	AC
Inrush current	4.72 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	127
Max. lamp number on MCB B16 A	159
Total harmonic distortion	143 %
Power factor λ	> 0.40

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED PIN G9

Open

Declarations of conformity UKCA – LED lamps

Open

PRODUCT DATASHEET – PIN201.9W2700KG9en

Open

Product datasheet -> old version of product – LEDPIN20300°1.9W827Cl earG9en

Open

Product datasheet -> old version of product – LEDPIN20300°1.9W827Cl earG9en

Open

Product datasheet -> old version of product – LEDPIN20300°1.9W827Cl earG9en

Open

Photometric And Lighting Design Files

Spectral power distribution – 349927_2700K_Evl_5630. eps

Open

Luminous flux	200 lm
Luminous efficacy	105 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Overall length	43.00 mm
Diameter	14.00 mm
Maximum diameter	14 mm
Product weight	5.00 g

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	G9
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	2.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG1

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	89.5 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G9
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	43.00 mm
Height	14.00 mm
Width	14.00 mm
Chromaticity coordinate x	0.4578
Chromaticity coordinate y	0.4101
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	>0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1403251,522874,1856551,2365053
Model number	AC32109,AC24751,AC58945,AC58945,AC84139

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
