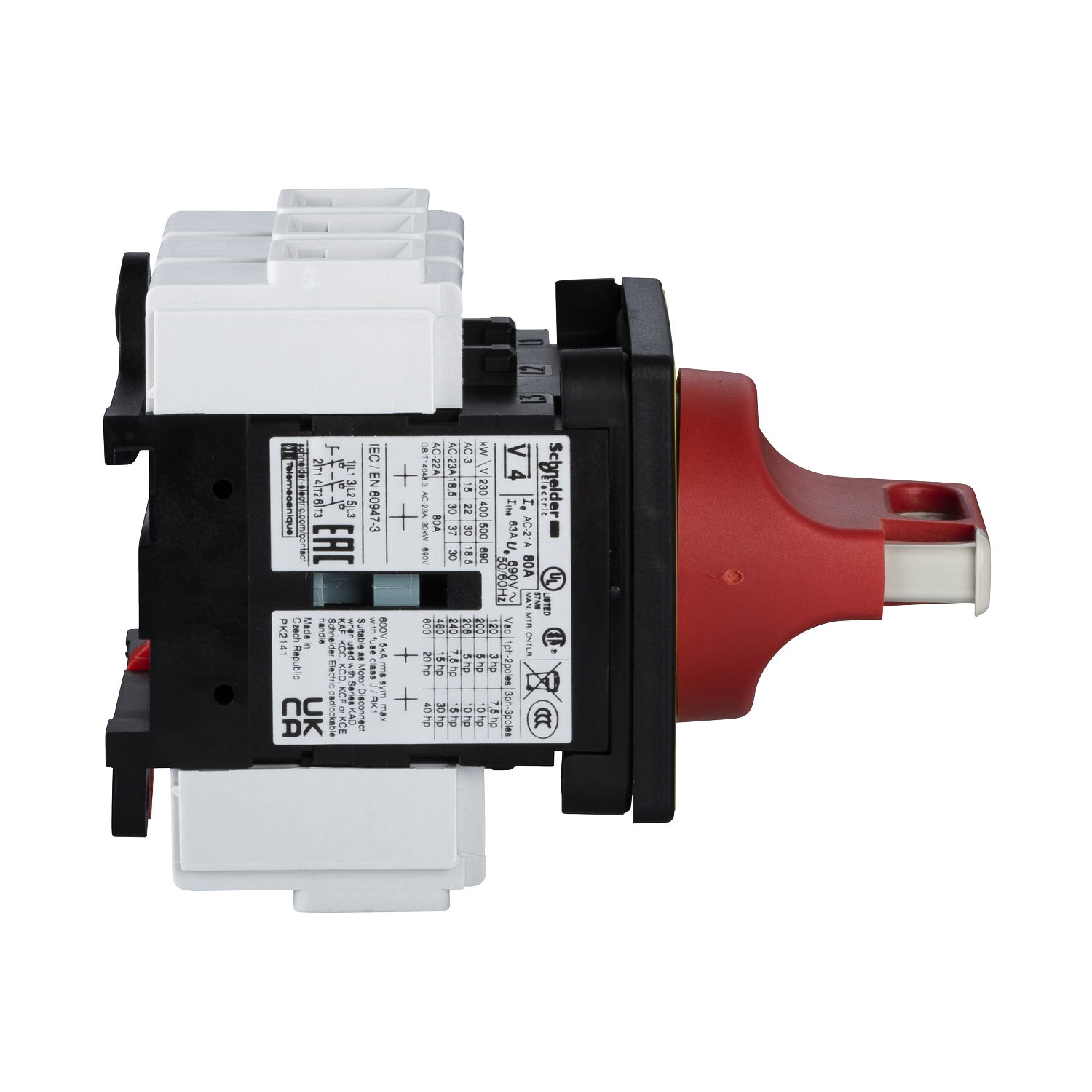

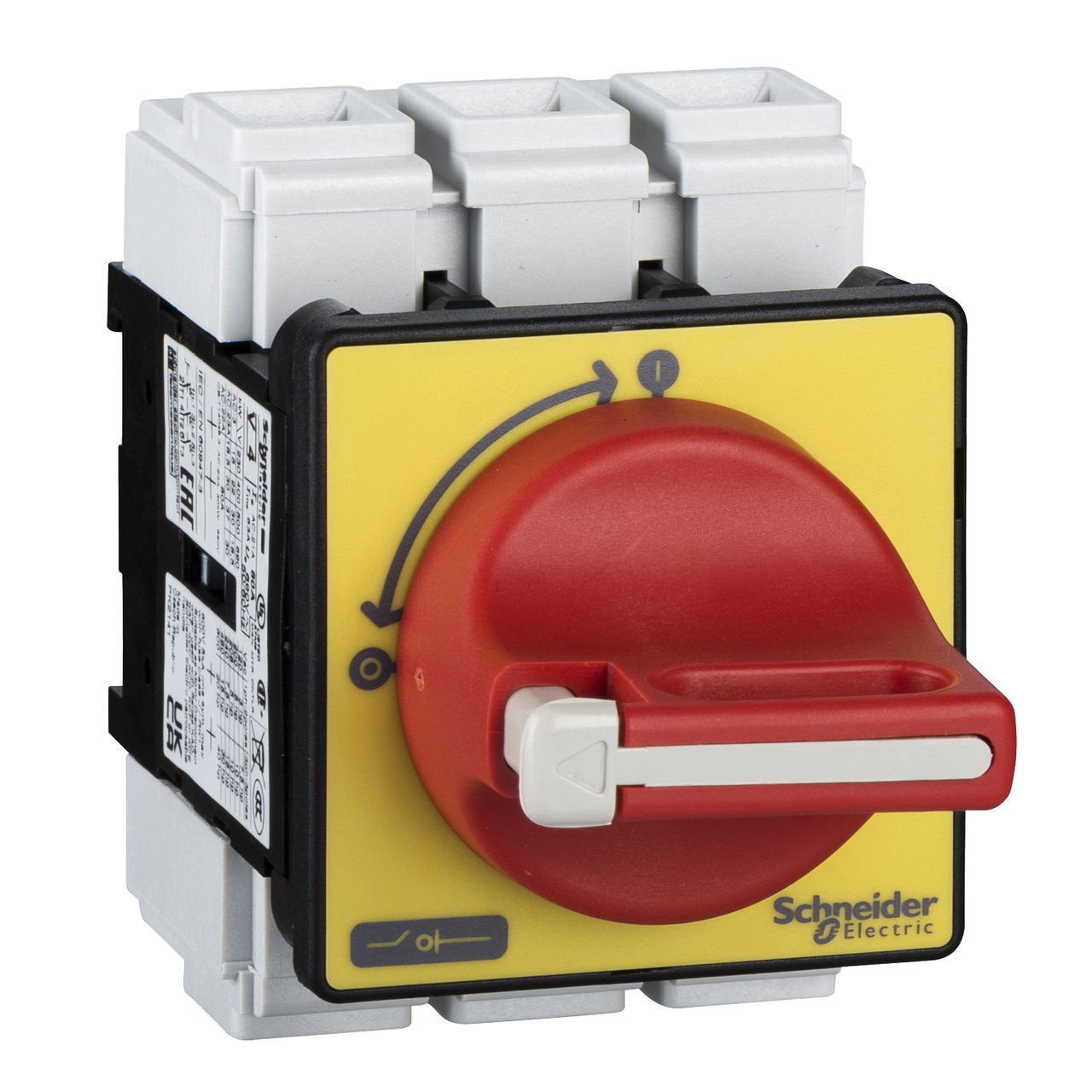

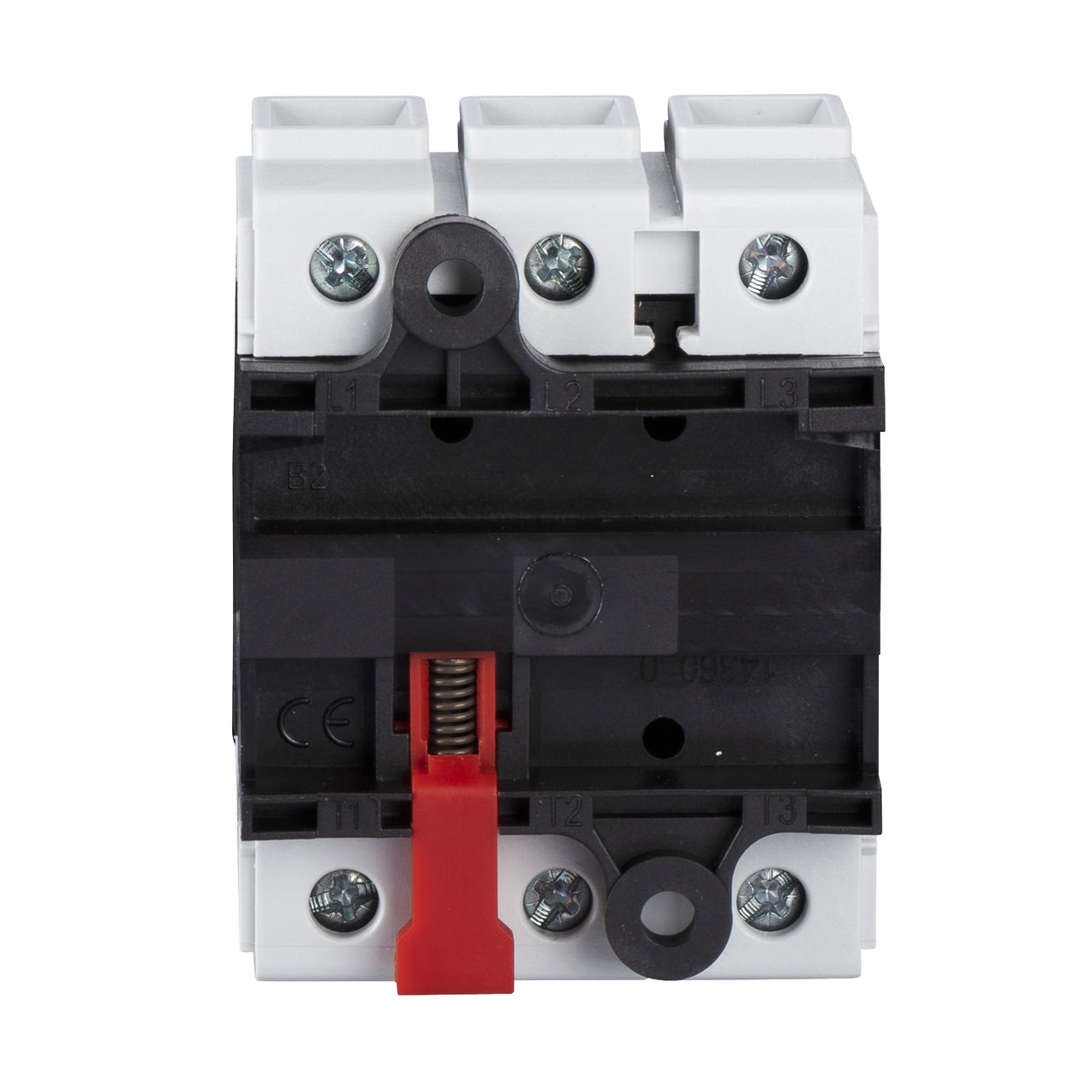

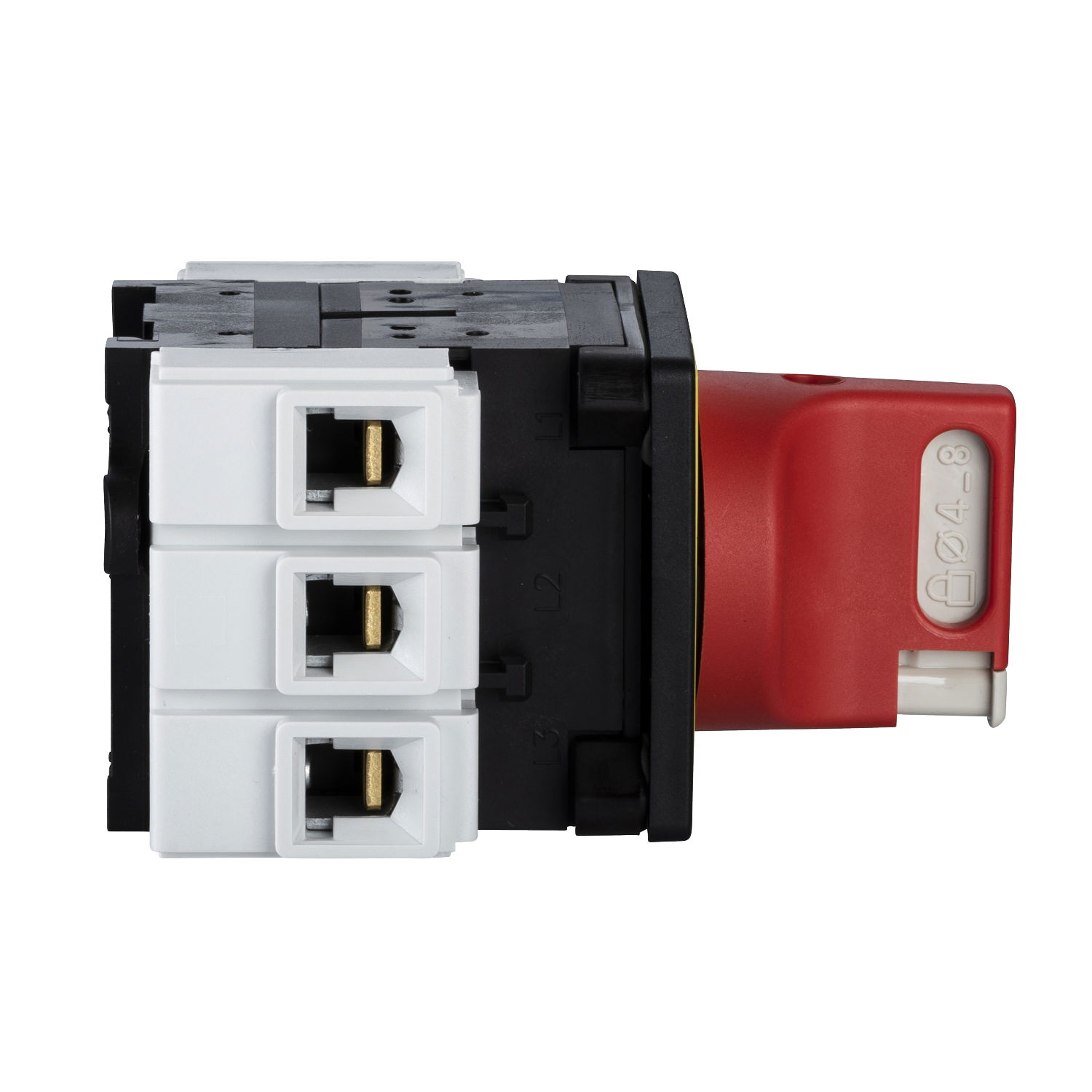

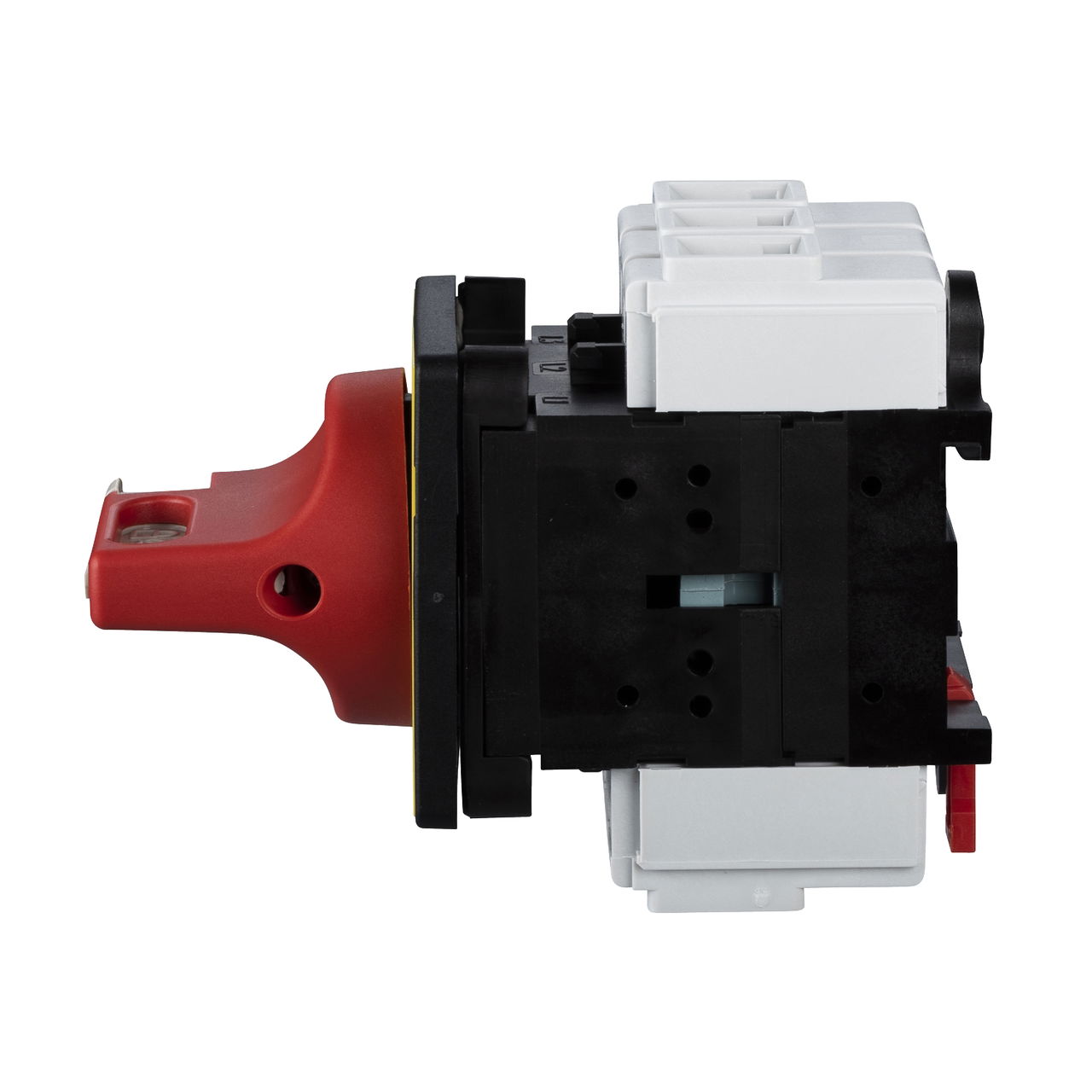

TeSys Vario - emergency stop switch disconnector - 80 A - on door
1 / 5
TeSys Vario - emergency stop switch disconnector - 80 A - on door
TeSys Vario - emergency stop switch disconnector - 80 A - on door by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £66.98 to £116.47 excl. VAT. Voltimum+ members earn 13 points per unit.
TeSys Vario switch disconnector for door mounting, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: VCF4
EAN: 3389110166002
GTIN: 3389110166002
MPN: VCF4
Loyalty points:
13
Price range: £ 66.98 - £ 116.47 Excl. VAT
ETIM group
Specifications
| Depth | 114 mm |
| Width | 60 mm |
| Height | 83 mm |
| Interlockable | yes |
| Number of poles | 3 |
| Number of switches | 1 |
| Device construction | Built-in device fixed built-in technique |
| Motor drive optional | no |
