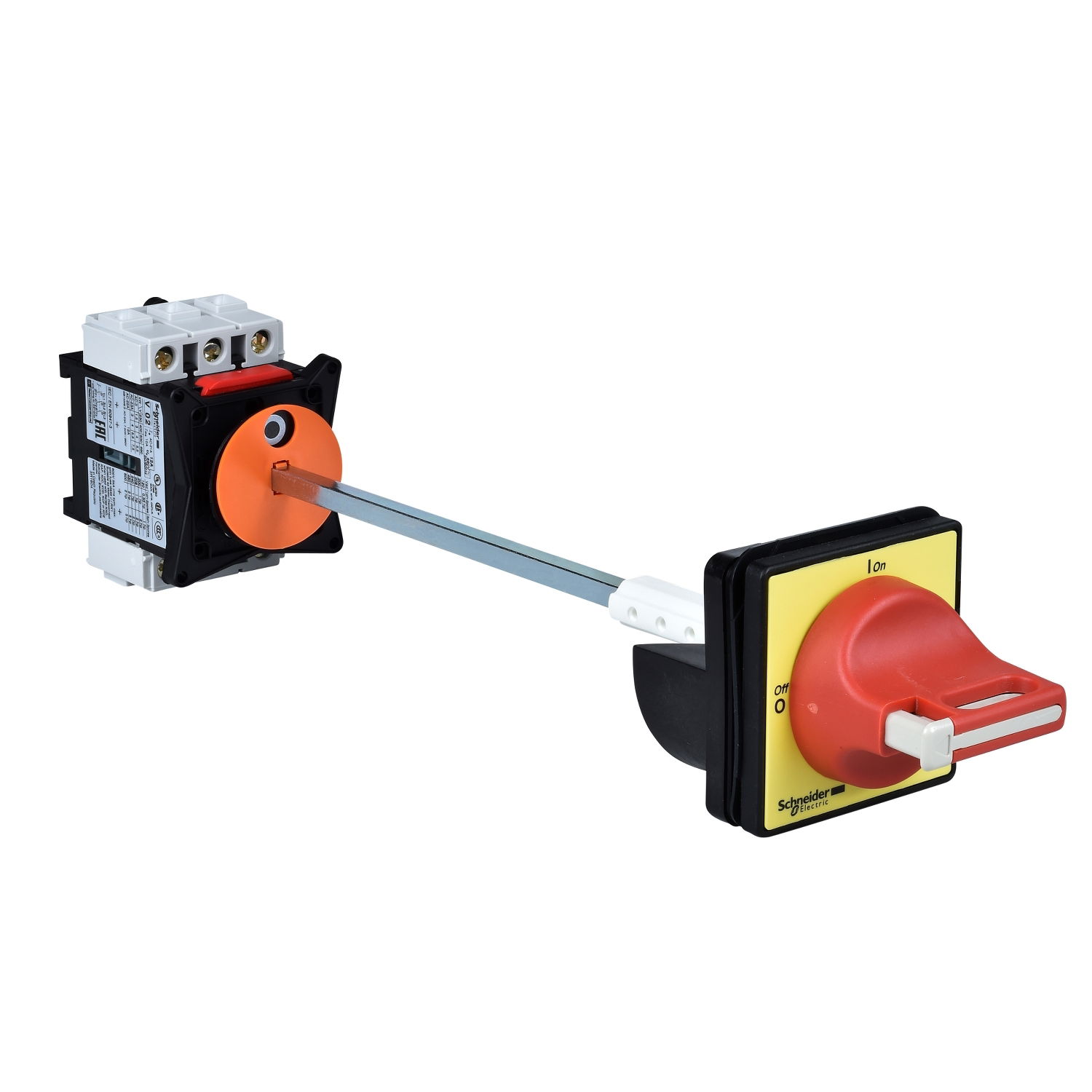

TeSys Vario - emergency stop switch disconnector - 80 A - back of enclosure

Link copied
SKU
EAN
GTIN
MPN

TeSys Vario - emergency stop switch disconnector - 80 A - back of enclosure by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £76.78 to £133.51 excl. VAT. Voltimum+ members earn 15 points per unit.

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Voltimum+ Loyalty Programme Loyalty points: 15

Price range: £ 76.78 - £ 133.51 Excl. VAT

Categories

Switchgear Low Voltage Switchgear Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth -
Width 60 mm
Height 83 mm
Interlockable yes
Number of poles 3
Number of switches 1
Device construction Built-in device fixed built-in technique
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling no
Suitable for floor mounting no
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP65
Rated short-time withstand current lcw 0.96 kA
Version as maintenance-/service switch no
Rated permanent current at AC-23, 400 V 57 A
Suitable for distribution board installation no
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
