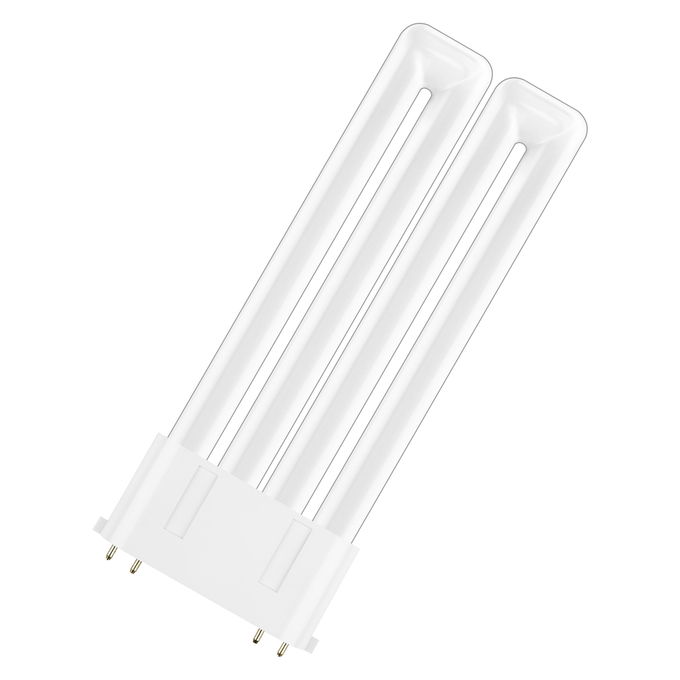

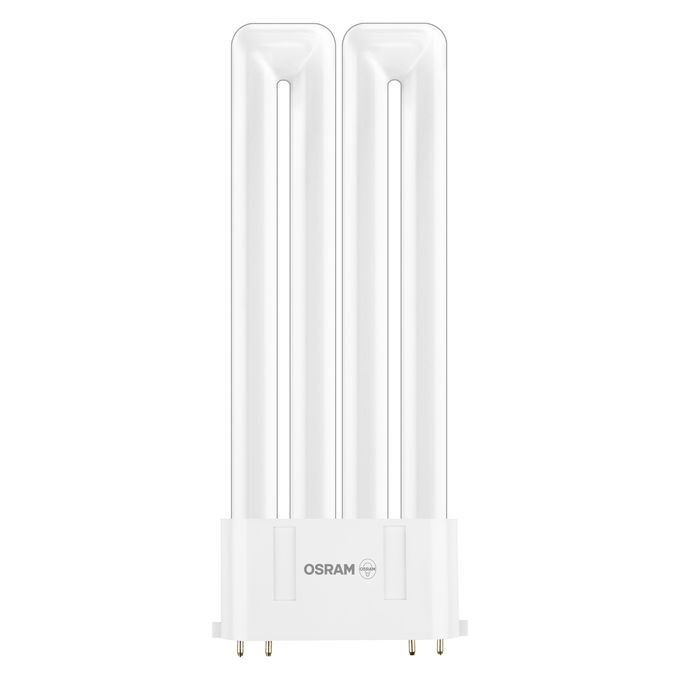

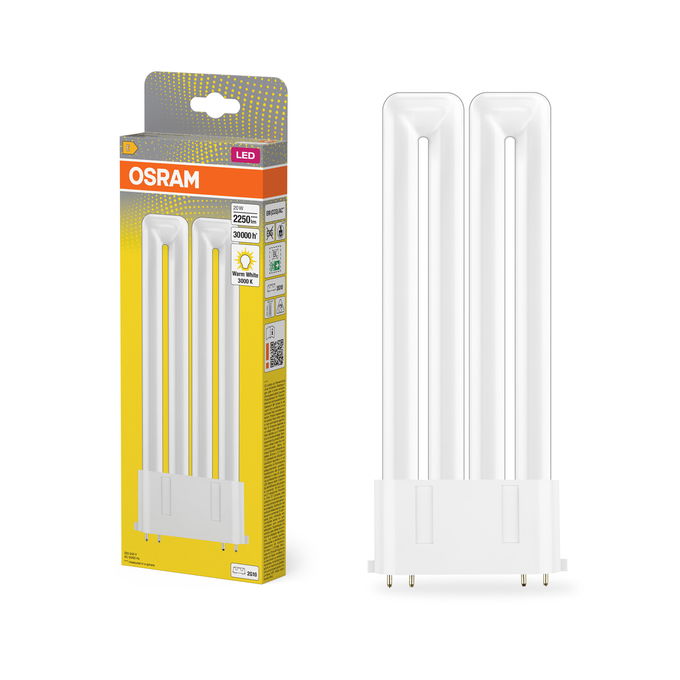

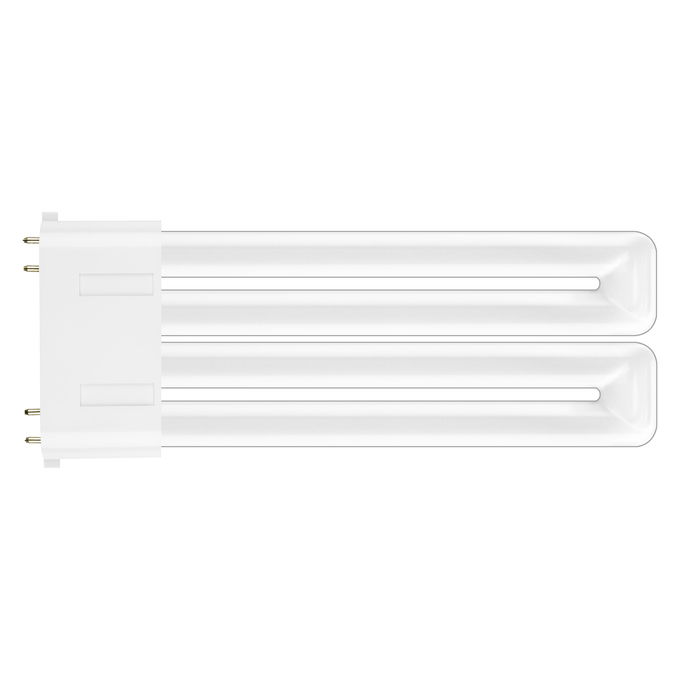

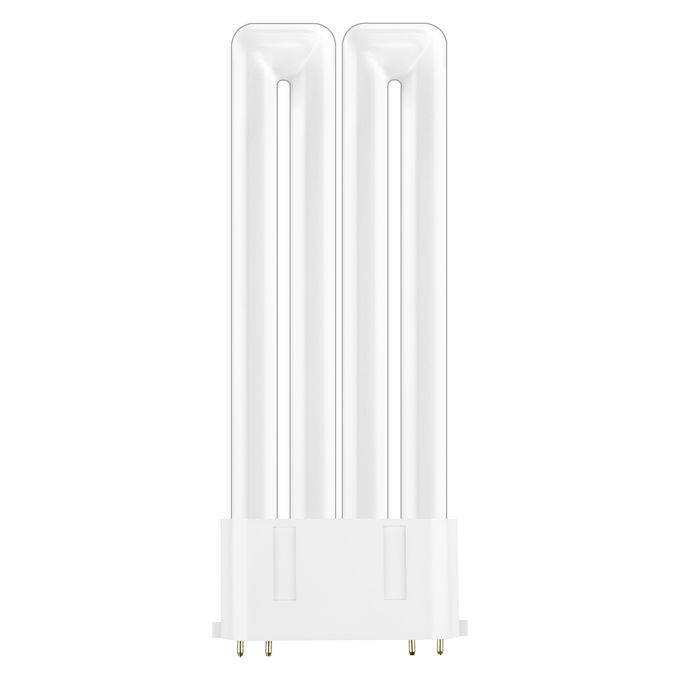

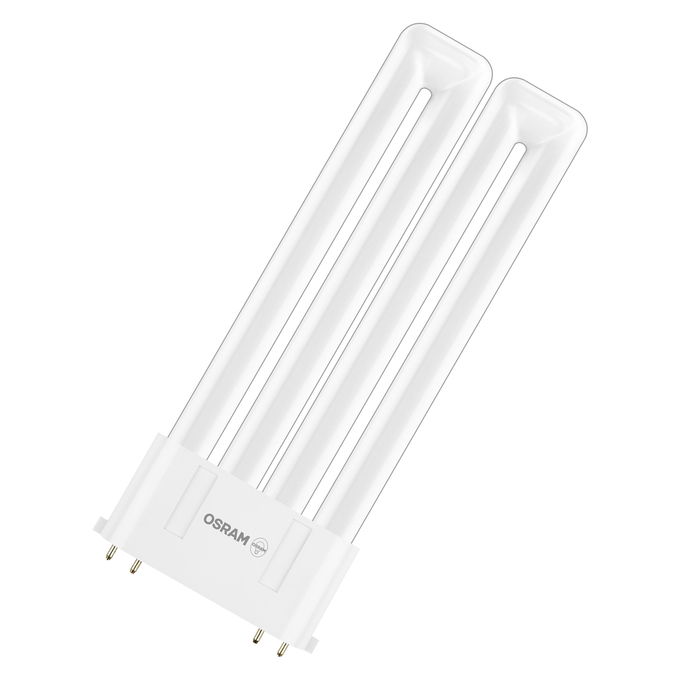

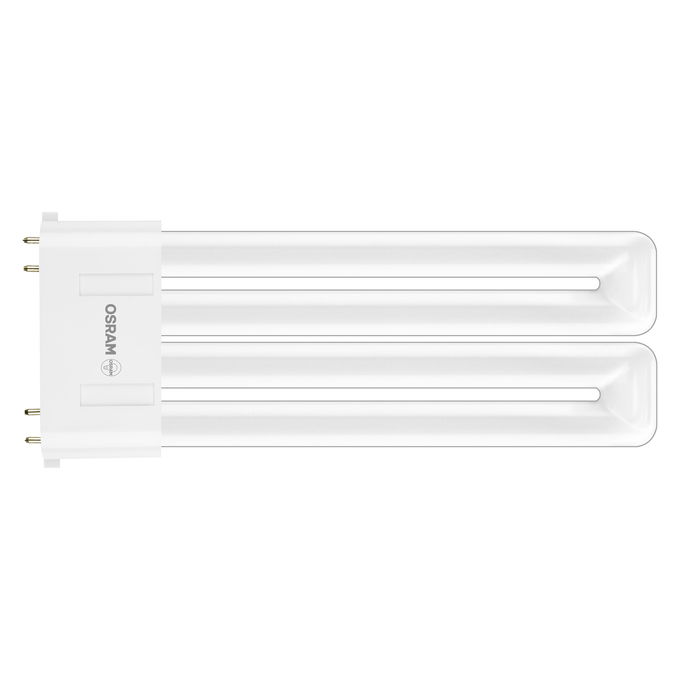

DULUX LED F36 EM & AC MAINS 20W 830 2G10
DULUX LED F36 EM & AC MAINS 20W 830 2G10
DULUX LED F36 EM & AC MAINS 20W 830 2G10 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £17.31 excl. VAT.
Product benefits
- Easy installation
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in 2G10 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Not suitable for tandem operation.
- Not suitable for operation with electronic control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Product identifiers
Price: £ 17.31 Excl. VAT
Specifications
Electrical data
| Nominal wattage | 20 W |
| Construction wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | Conventional control gear (CCG), AC |
| Claimed equiv. conventional lamp power | 36 W |
| Nominal current | 90 mA |
| Type of current | AC |
| Inrush current | 9 A |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – DULUX LED F EM
Extended installation guide – Installation instructions LED TUBE T8, T5 und DULUX LED 2026 10 EN
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – DULUX LED
Declarations of conformity UKCA – DULUX LED
Declarations of conformity UKCA – LEDTUBE
PRODUCT DATASHEET – DULUXFLEDEM&ACMains20W 3000Kde
