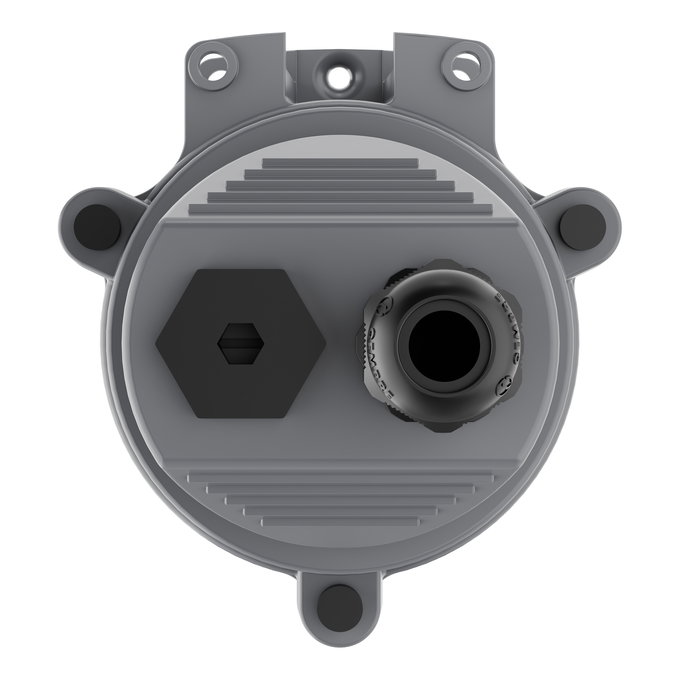

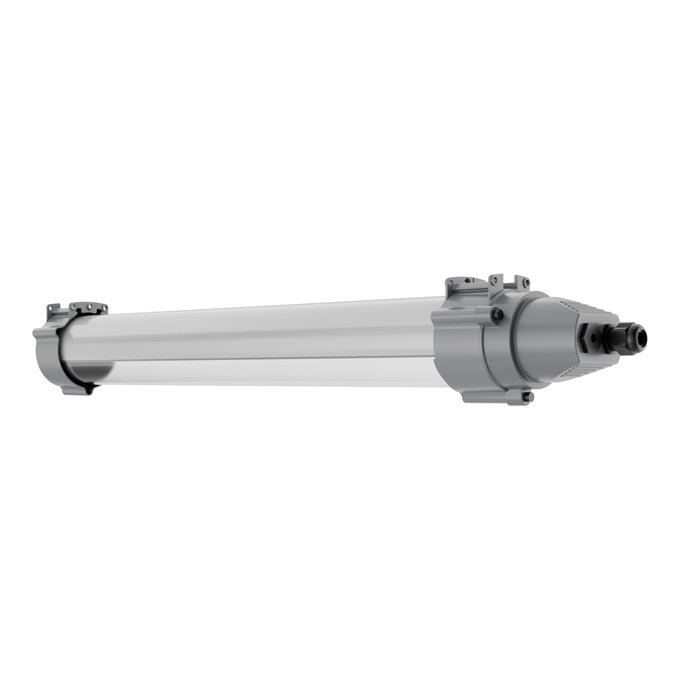

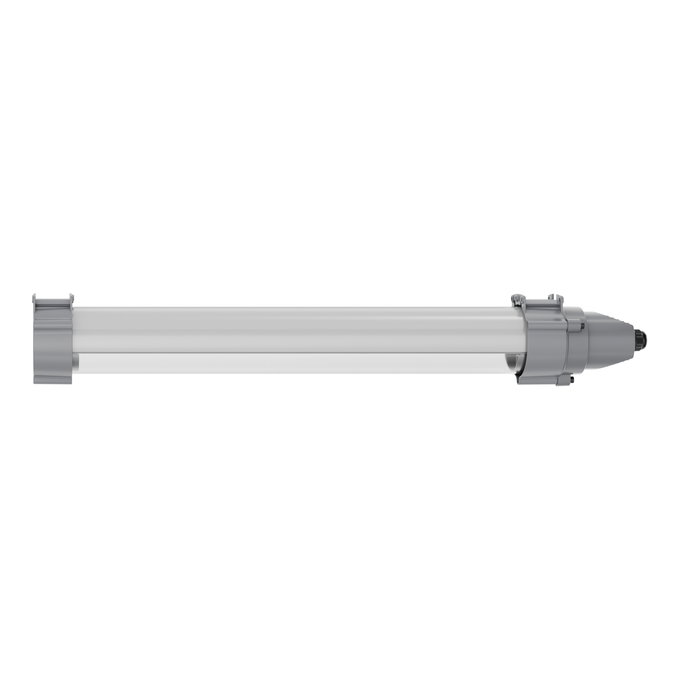

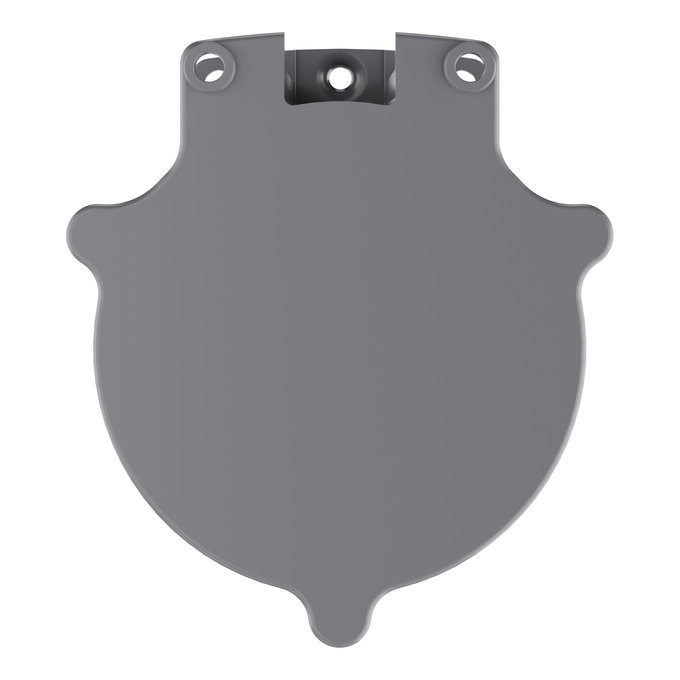

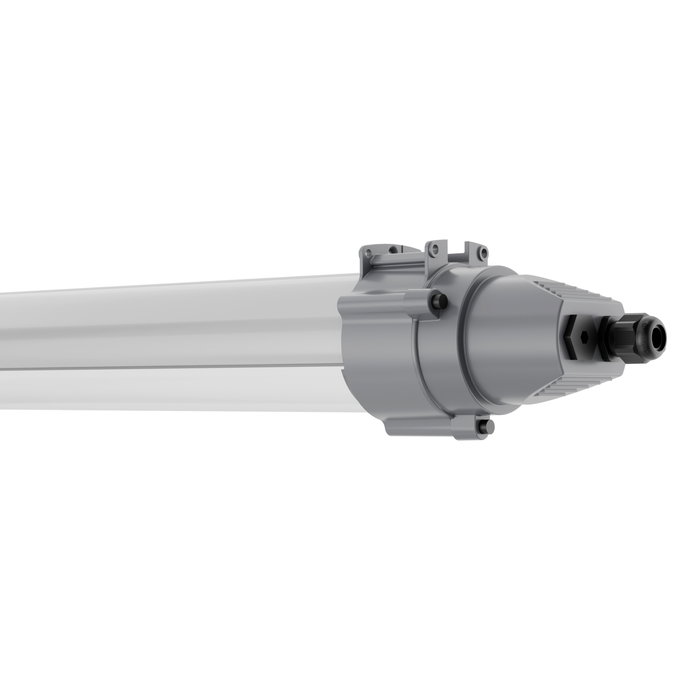

DP MAX EL 600 S 18W 840 VW IP69

Product benefits

• Seamless integration of luminaires with emergency lighting function into general lighting
• Easy wiring thanks to included prewired driver and battery for Emergency lighting function
• Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
• Convenient visualization of results of automatic test with an included control LED
• Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
• Uniform light distribution in normal operation
• Versatile applications due to resistance to many chemicals and UV light

Areas of application

• Emergency illumination of escape routes
• Antipanic lighting
• Buildings requiring up to 3 h emergency light operation
• Food industry
• Open car parks and underpasses
• Car wash facilities
• Outdoor applications
• Industrial and storage facilities

Product features

• Luminaire suitable for normal lighting and emergency lighting
• Suitable for emergency central battery installations acc. to EN 60598-2-22
• Self-contained luminaires
• Emergency lighting function: battery discharge time of 3 h
• Function test of emergency lighting: automatic (AT)
• Battery technology: LiFePO4
• Type of protection: IP66, IP69 (80 °C)
• Impact resistance: IK10
• Ammonia resistant
• UV-resistant PMMA diffuser
• Compatible to Zhaga Book 7 LED light sources

Equipment / Accessories

• Stainless steel clamps and M25 cable gland included

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
