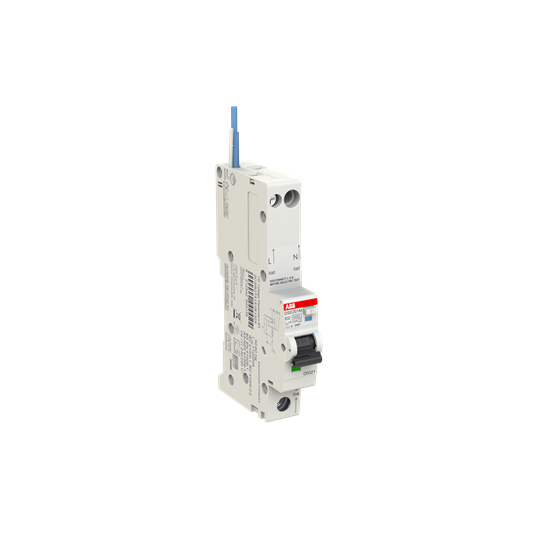

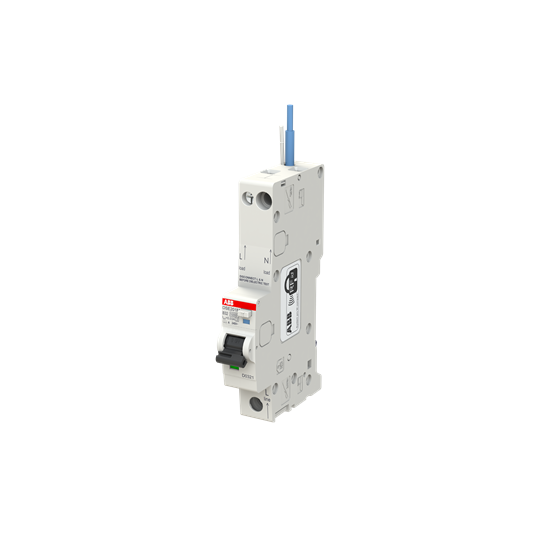

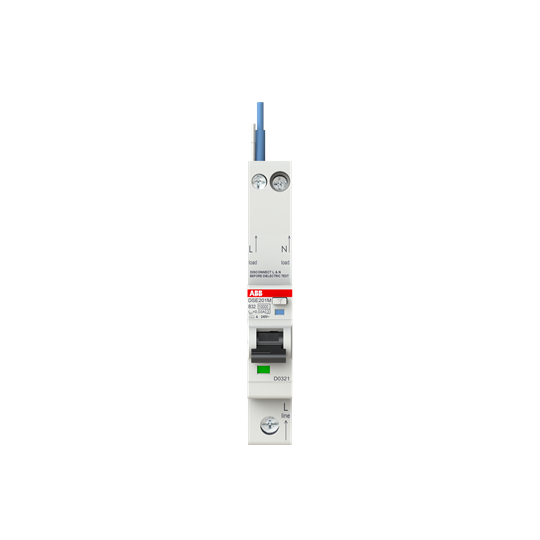

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - B - Type A

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - B - Type A

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

Product identifiers

SKU: 2CSR275151R1325
EAN: 8012542840138
GTIN: 8012542840138
MPN: DSE201 M B32 A30 - N Blue

Voltimum+ Loyalty Programme Loyalty points: 28

Price: £ 103.00 Excl. VAT

Specifications

Frequency 50/60 Hz
Power loss 4.4
Voltage type AC
Rated current 32
Rated voltage 240
Built-in depth 68.9
Pollution degree 2
Rated fault current 0.03
Over voltage category 3
Release characteristic B
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 10
Rated short-circuit breaking capacity Icn according to EN 61009-1 10
