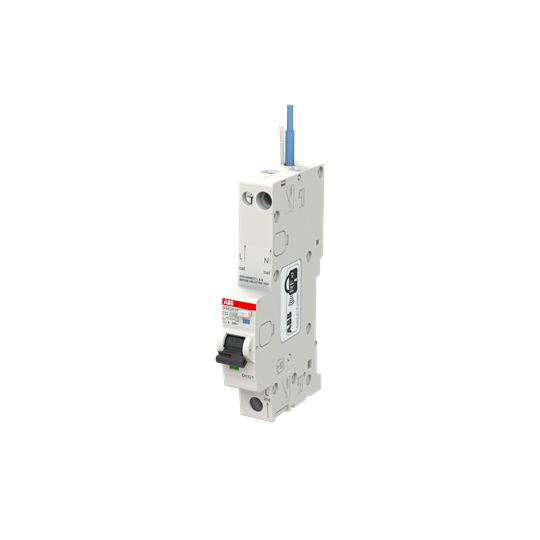

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A

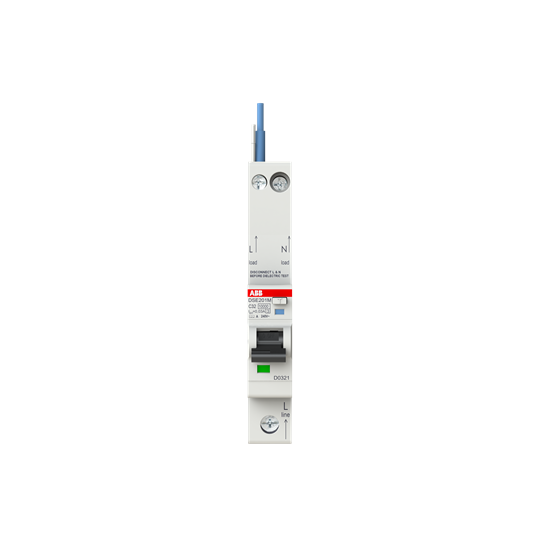

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A – Image 2 of 3

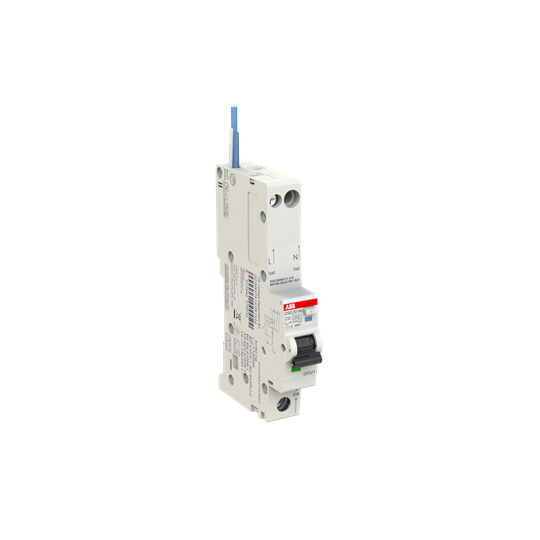

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A – Image 3 of 3

1 / 3

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A

Name: Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A
Brand: ABB
SKU: 2CSR275151R1324
Availability: InStock

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 32 A - C - Type A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £68.19 to £103.00 excl. VAT. Voltimum+ members earn 28 points per unit.

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

Product identifiers

SKU: 2CSR275151R1324

EAN: 8012542376033

GTIN: 8012542376033

MPN: DSE201 M C32 A30 - N Blue

Loyalty points: 28

Price range: £ 68.19 - £ 103.00 Excl. VAT

Specifications

Frequency	50/60 Hz
Power loss	4.4
Voltage type	AC
Rated current	32
Rated voltage	240
Built-in depth	68.9
Pollution degree	2
Rated fault current	0.03
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	0.25
Number of poles (total)	2
With interlocking device	yes
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	500
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	no
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity according to EN 61009	10
Rated short-circuit breaking capacity according to IEC 60947-2	15
Rated short-circuit breaking capacity Icn according to EN 61009-1	10
