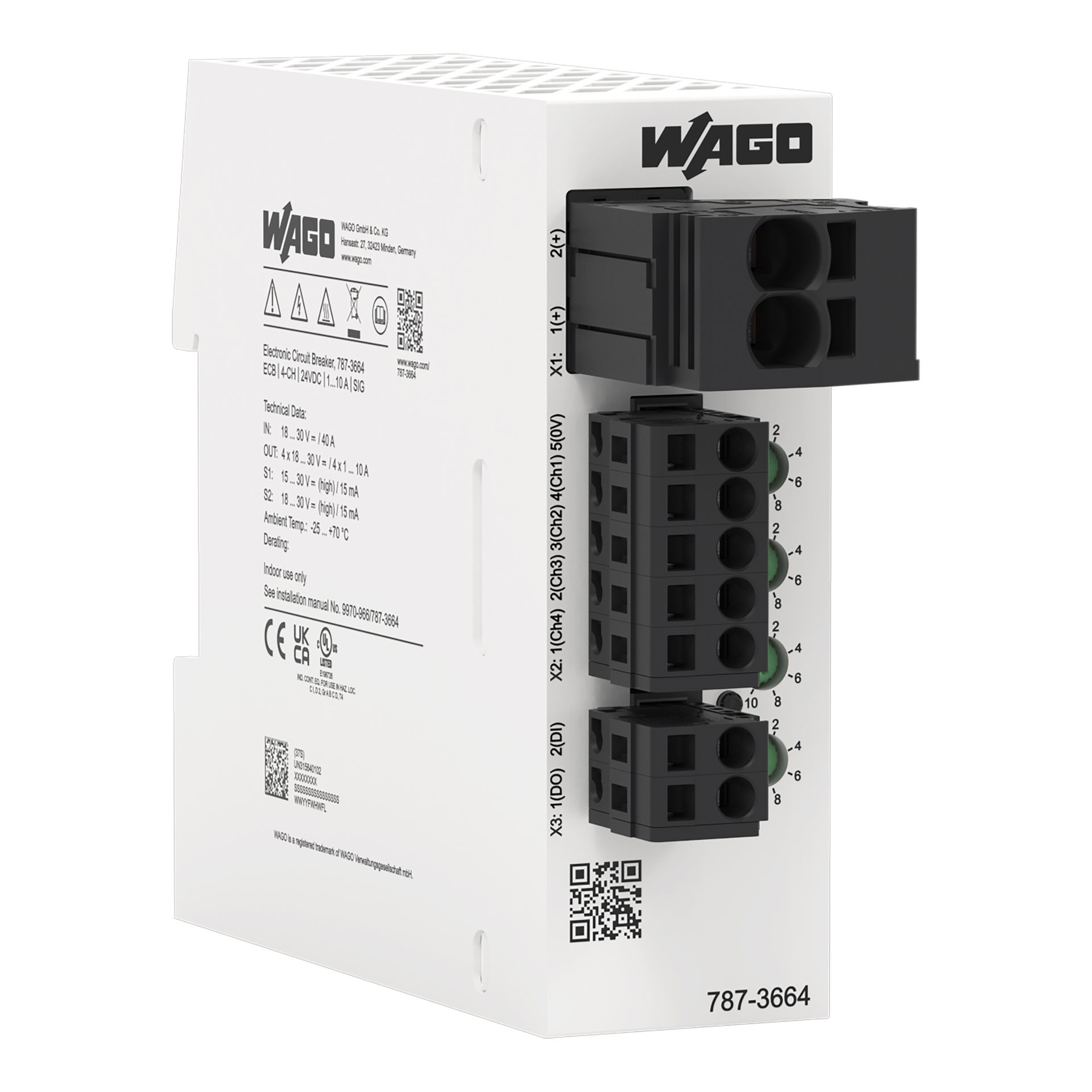

Electronic circuit breaker 4-channel 24 VDC input voltage

Name: Electronic circuit breaker 4-channel 24 VDC input voltage
Brand: Wago
SKU: 787-3664
Availability: InStock

Electronic circuit breaker; 4-channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact

Product identifiers

SKU: 787-3664

EAN: 4066966493764

GTIN: 4066966493764

MPN: 787-3664

Price range: £ 84.46 - £ 100.35 Excl. VAT

Relays

Specifications

Depth	117.5
Width	32
Height	95
Type of current	-
Supply voltage DC
Operating voltage DC
Rated switch current	-
With detachable clamps	yes
Current measuring range	1 - 10
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Response value amperage 1
Response value amperage 2
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Type of electric connection	-
External current transformer	no
Max. permitted off-delay time	-
Voltage type (supply voltage)	-
External power supply required	-
Function DC-current hysteresis	no
Min. adjustable off-delay time	-
Three-phase hysteresis possible	no
Single-phase hysteresis possible	no
Three-phase overcurrent possible	no
Voltage type (operating voltage)	-
Single-phase overcurrent possible	yes
Three-phase under current possible	no
Single-phase under current possible	no
Contains function DC-voltage overcurrent	yes
Max. permitted delay-on energization time	100
Number of contacts as change-over contact	0
Contains function DC-voltage under current	no
Min. adjustable delay-on energization time	0.016
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
