Electronic circuit breaker 4-channel 48 VDC input voltage

Name: Electronic circuit breaker 4-channel 48 VDC input voltage
Brand: Wago
SKU: 787-1664/000-200
Availability: InStock

Electronic circuit breaker; 4-channel; 48 VDC input voltage; adjustable 2 … 10 A; communication capability

Product identifiers

SKU: 787-1664/000-200

EAN: 4055143318884

GTIN: 4055143318884

MPN: 787-1664/000-200

Price: £ 203.84 Excl. VAT

Relays

Specifications

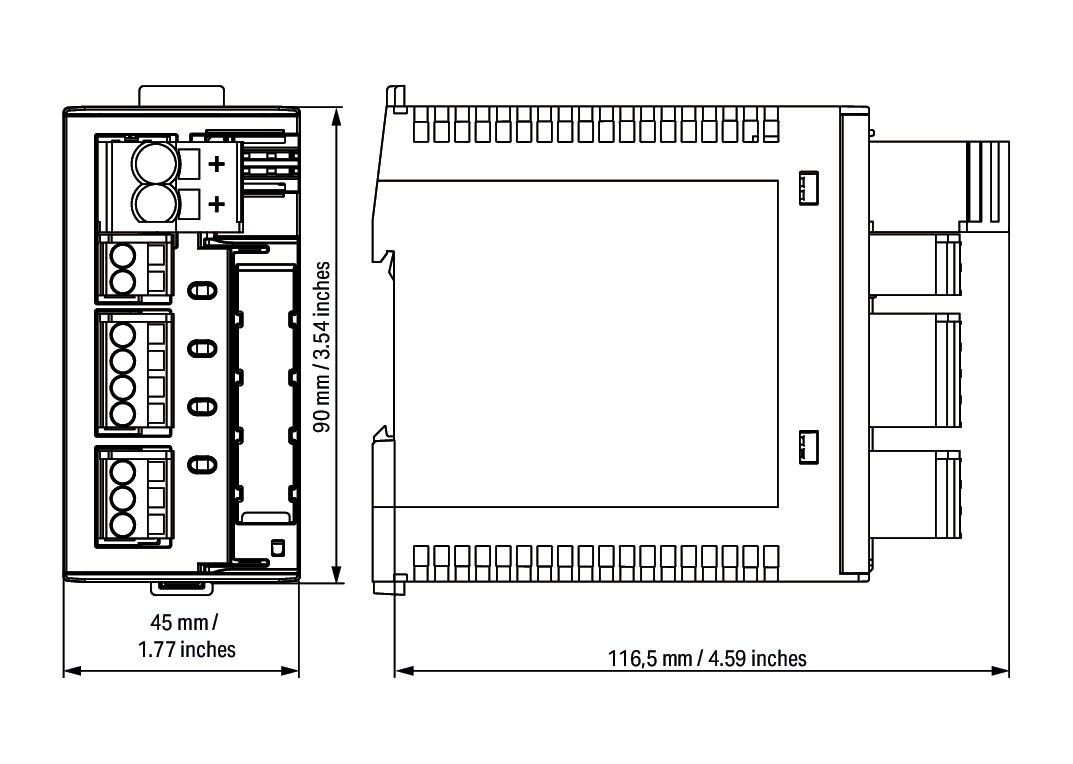

Depth	115.5
Width	45
Height	90
Type of current	-
Supply voltage DC
Operating voltage DC
Rated switch current	-
With detachable clamps	yes
Current measuring range	2 - 10
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Response value amperage 1
Response value amperage 2
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Type of electric connection	Spring clamp connection
External current transformer	no
Max. permitted off-delay time	-
Voltage type (supply voltage)	-
External power supply required	-
Function DC-current hysteresis	no
Min. adjustable off-delay time	-
Three-phase hysteresis possible	no
Single-phase hysteresis possible	no
Three-phase overcurrent possible	no
Voltage type (operating voltage)	-
Single-phase overcurrent possible	yes
Three-phase under current possible	no
Single-phase under current possible	no
Contains function DC-voltage overcurrent	yes
Max. permitted delay-on energization time	100
Number of contacts as change-over contact	0
Contains function DC-voltage under current	no
Min. adjustable delay-on energization time	0.016
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
