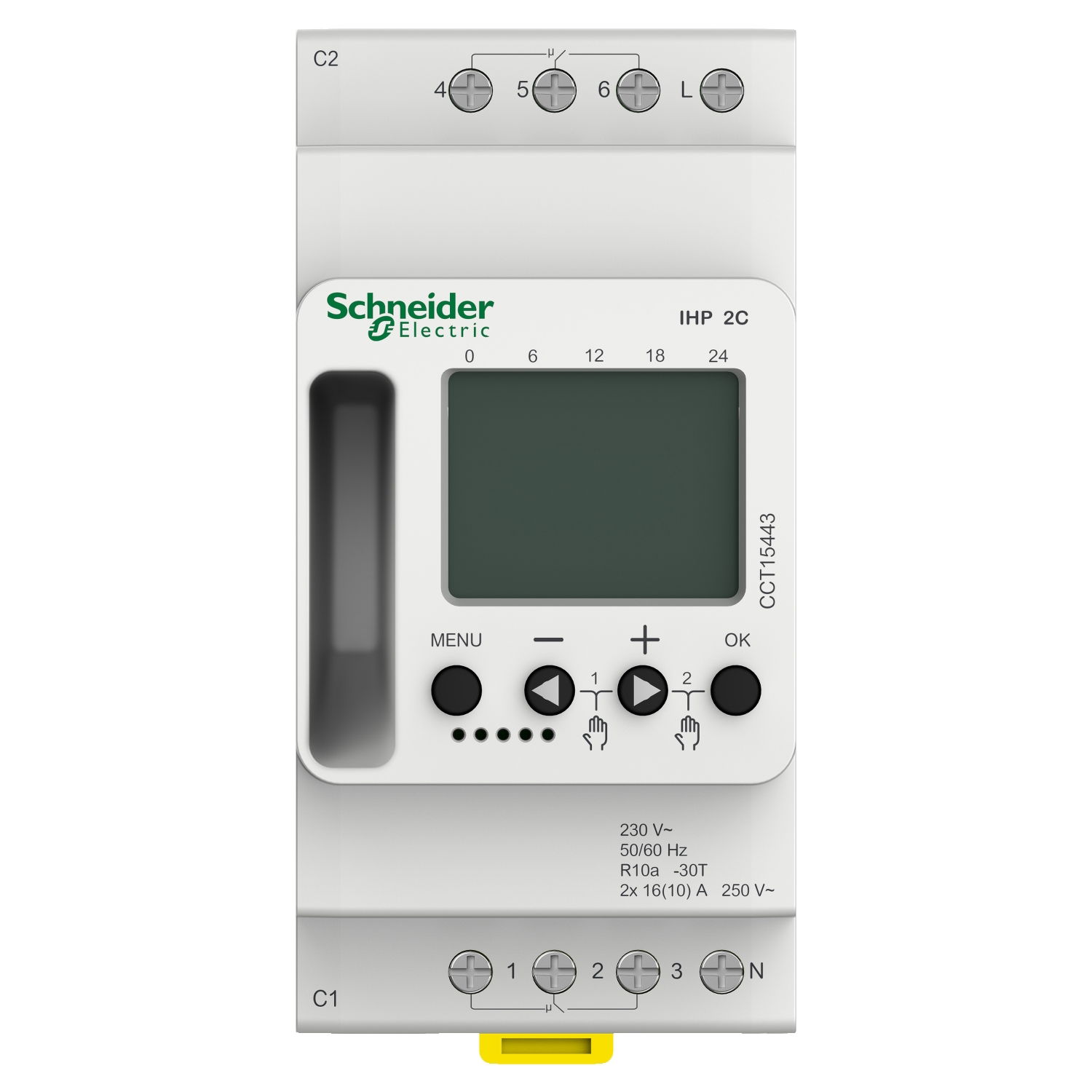

Acti9 IHP 2C w (24h/7d) programmable time switch

Link copied
SKU
EAN
GTIN
MPN

Acti9 IHP 2C w (24h/7d) programmable time switch by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 45 points per unit.

IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily

Voltimum+ Loyalty Programme Loyalty points: 45

Price: £ 269.00 Excl. VAT

Specifications

Depth 67 mm
Width 45 mm
Height 92.6 mm
Hour meter no
24 h program yes
Contact type -
Astro program no
Cycle program no
60 min program yes
Random program no
Weekly program yes
Impulse program no
Accuracy per day 0.25 s
With memory card no
Autonomy in years 10
Quartz controlled yes
Number of contacts -
Switching preselection yes
Max. switching power LED -
Text guidance in display yes
External push button input yes
Potential free switch contact yes
Voltage type (supply voltage) AC
Shortest switching time channel 1 1 min
Width in number of modular spacings 2.5
Automatic switching summer-/winter time yes
