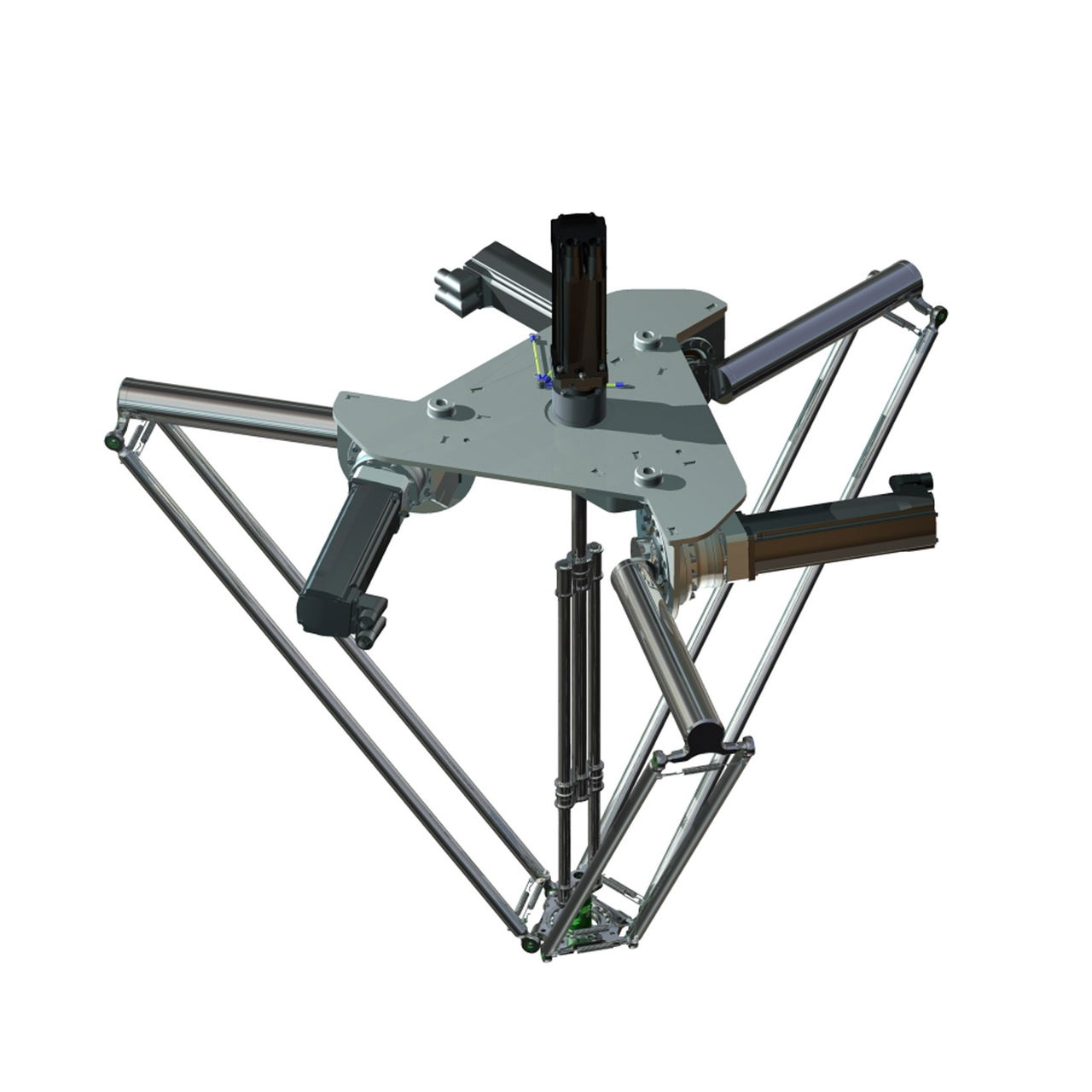

Delta 3 robot, P6, 3-5 axis, 10 kg permissible load(15 kg with restrictions), 0-1600 mm working envelop

Link copied
SKU
EAN
GTIN
MPN
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a compact design which provides 3 to 4 axes. Its permanent permissible load reaches 10kg. It has a 1600mm working envelop. This pick and place robot features 0mm to 1600mm diameter, 0mm to 550mm vertical work envelopes. It offers permanent permissible load of 10kg. It has stainless steel construction. It weighs 80kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).

Voltimum+ Loyalty Programme Loyalty points: 3196

Price: £ 19,176.00 Excl. VAT

Specifications

Range 1600 mm
Stroke 550 mm
Number of joints 3
Degrees of freedom 3
Load bearing capacity 10 kg
Degree of protection (IP) -
Suitable for wall mounting -
Suitable for ceiling mounting -
Repeatability (+/-) according to ISO 9283 0.1 mm

Documents

Declaration of Conformity (Sustainability)

VRKP6S0FNC00000 REACh Regulation

Open

User guide

Lexium P Robot, Hardware Guide

Open

Instruction sheet

Lexium P Robot VRKP•••••••••••, Instruction sheet

Open

Product data sheet

Open

Catalog

Catalog Lexium T and P Delta robots for pick & place solutions

Open

Declaration of Conformity (Sustainability)

VRKP6S0FNC00000 EU RoHS Directive

Open

Declaration of conformity

Declaration of Incorporation Lexium P Robot EU

Open

Environmental Disclosure

PacDrive robot P4 - ILM Motor – Product Environmental Profile

Open
