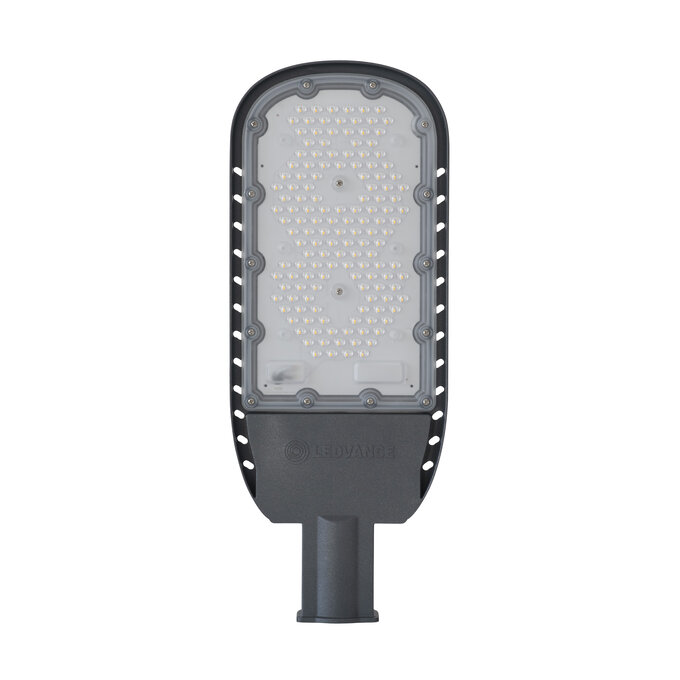

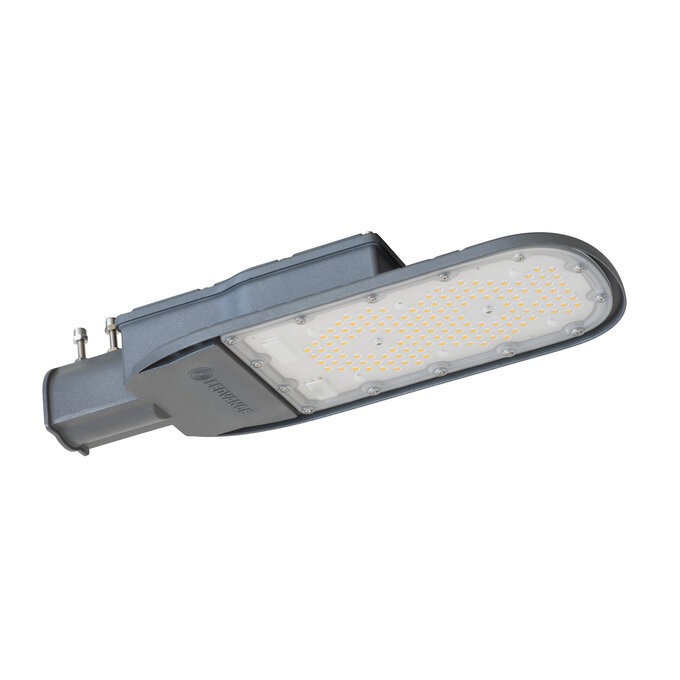

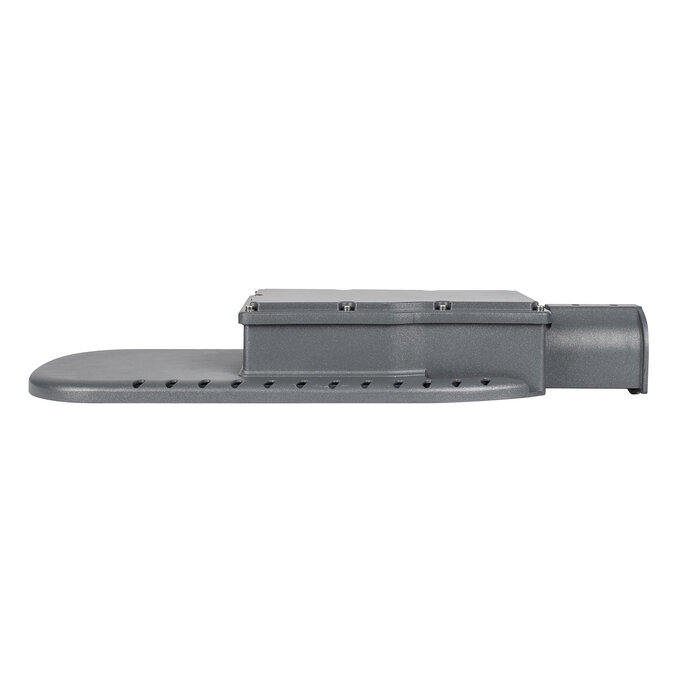

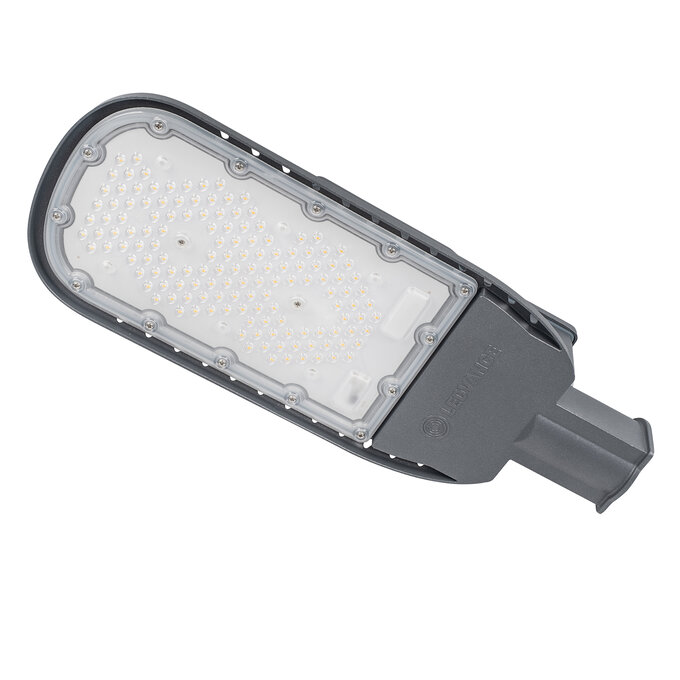

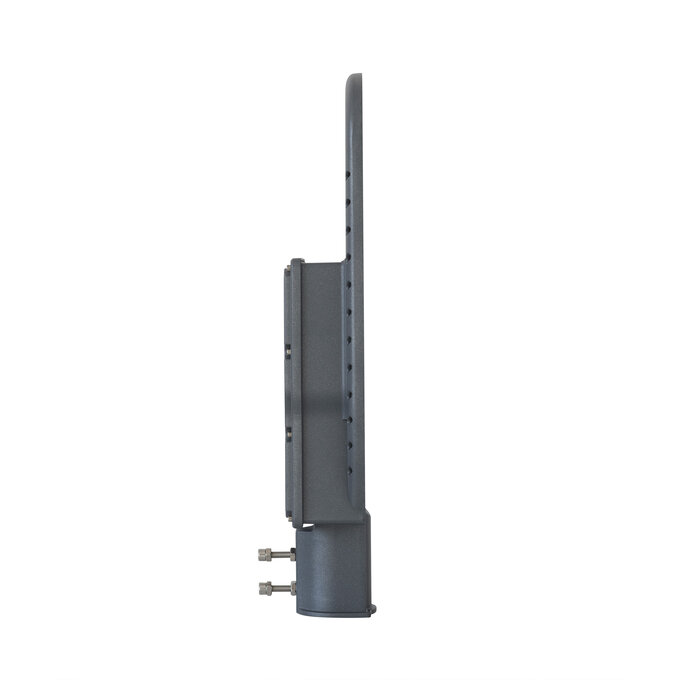

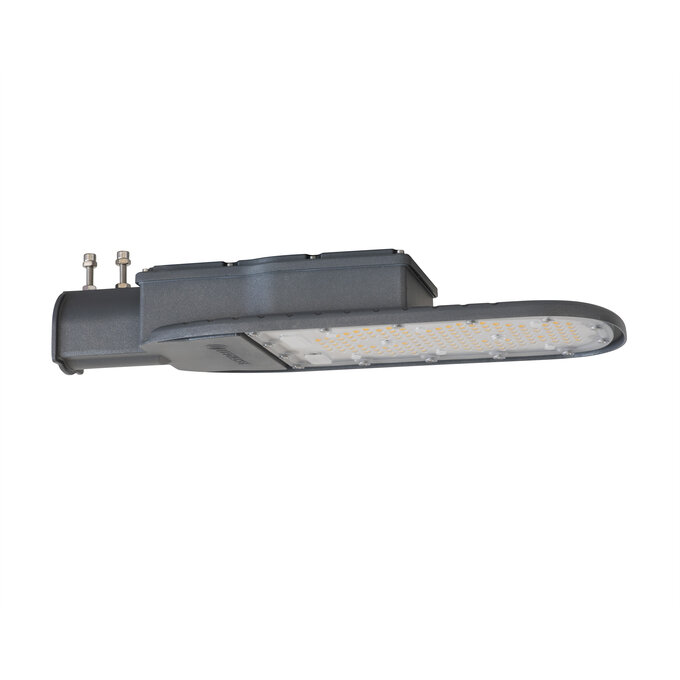

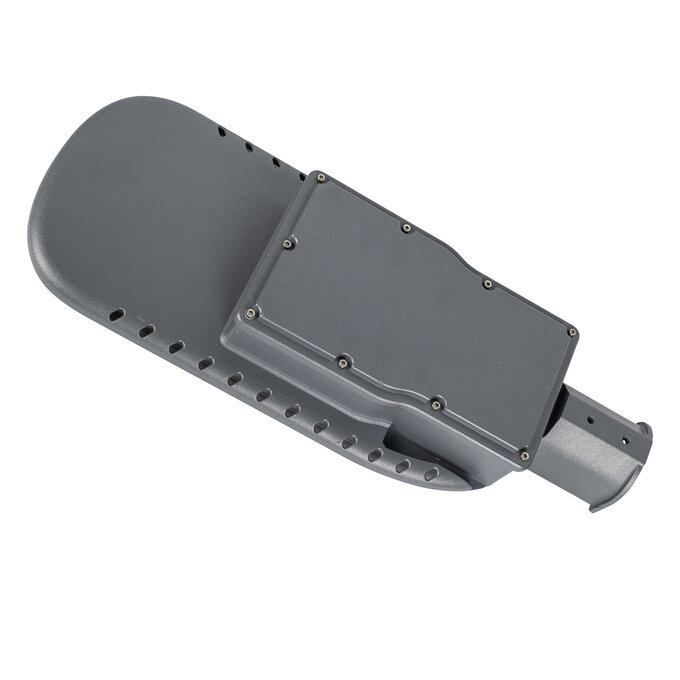

ECO AREA SPD 90W 865 IP66 GY
Product benefits
- Functional and minimalistic design
- Low maintenance and operation costs due to long lifetime of LED
- 5 years guarantee
Areas of application
- Road lighting
- Streets
- Car parks
- Area lighting
Product features
- Asymmetric light distribution for various application areas
- Robust die-cast aluminum housing
- Side-entry mounting for 48…60 mm poles
- Surge protection: 10 kV (L/N-PE)
- Integrated wide voltage driver, suitable for 100 - 240 VAC
- Pre-installed, flexible 0.5 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4058075557796
EAN: 4058075557796
GTIN: 4058075557796
MPN: 4058075557796
Price: £ 0.00 Excl. VAT
ETIM Group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Number of switching cycles | 100000 |
Electrical data
| Nominal wattage | 90.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 450 mA |
| Inrush current time T h50 | 1400 µs |
