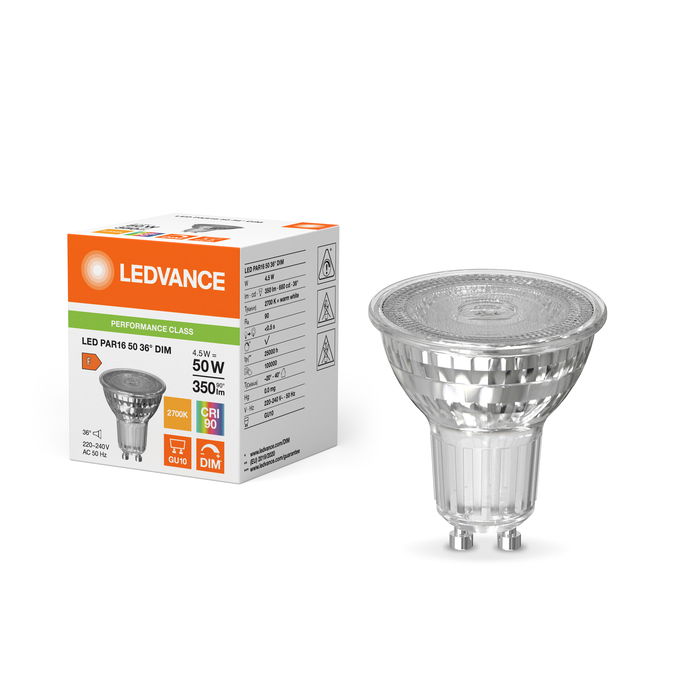

LED PAR16 50 36° DIM P 4.5W 927 GU10

LED PAR16 50 36° DIM P 4.5W 927 GU10 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock.

Product benefits

Quick, simple and safe replacement without rewiring
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Low maintenance costs thanks to long lifetime
No UV and near-IR radiation in the light beam
Stepless dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Instant 100 % light, no warm-up time
Lower energy consumption than incandescent or halogen lamps

Areas of application

Shops and exhibition rooms
Domestic applications
Commercial applications
Accent lighting
Outdoor use in suitable outdoor luminaires only

Product features

LED alternative to high voltage halogen lamps
Dimmable
Lamp made of glass

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4099854044984

EAN: 4099854044984

GTIN: 4099854044984

MPN: 4099854044984

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.96

Capabilities

Dimmable

Yes 1)

Electrical data

Nominal wattage	4.5 W
Construction wattage	4.50 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	50 W
Nominal current	41 mA
Type of current	AC
Inrush current	2.56 A
Operating frequency	50 Hz
Mains frequency	50 Hz
Max. lamp number on MCB B10 A	81
Max. lamp number on MCB B16 A	129
Total harmonic distortion	120 %
Power factor λ	> 0.70

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED PAR16

Open

Product datasheet -> old version of product – LEDPAR165036°DIMP4.5W 927GU10en

Open

Product Images And Graphics

Product image: white background, diagonal with LEDVANCE logo – LVPAR168036 80 230V GU10

Open

Product image: white background, diagonal – LVPAR168036 80 230V GU10

Open

Product image: white background, upright LEDVANCE logo – LVPAR168036 80 230V GU10

Open

Product image: white background, upright – LVPAR168036 80 230V GU10

Open

Product line drawing with letters – 666401_PAR16 35/50/80 2016

Open

Product line drawing with numbers – LED PAR16 GU10

Open

Product line drawing, front, no dimensions – 666421_PAR16 35/50/80 2016

Open

Combo Shot = Product Beauty Shot + Packaging Image – FC1 PAR16 50 DIM PFM 4.5W ba36 927 GL GU10

Open

Packaging image, beauty shot – Key Visual Brand Transition Trade PAR16 on stage hires

Open

Packaging image, beauty shot – Key Visual Brand Transition Trade PAR16 on stage lowres

Open

Packaging image, beauty shot – Key visual brand transition trade par16 on stage lowres 1920x1080px

Open

Packaging image, beauty shot – LED ES LEDVANCE

Open

Packaging image, frontal – FC1 PAR16 50 DIM PFM 4.5W ba36 927 GL GU10

Open

Packaging image, spacial – Packaging LED PAR16 50 DIM laterally

Open

Energy Label 2021 UK – EL-4099854044984-AC457 04

Open

Energy Label 2021 UK – EL-4099854044984-AC580 02

Open

Photometric And Lighting Design Files

Application Images

Luminous intensity	680 cd
Luminous flux	350 lm
Nominal useful luminous flux 90°	350 lm
Luminous efficacy	77 lm/W
Lumen main.fact.at end of nom.life time	0.96
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	90
Light color	927
Standard deviation of color matching	≤5 sdcm
Rated peak intensity	680 cd
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Overall length	54.00 mm
Diameter	50.00 mm
Maximum diameter	50 mm
Product weight	39.00 g

Beam angle	36 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	GU10
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	5.00 kWh/1000h
Type of protection	IP20
Standards	CE; UKCA; EAC
Photobiological safety group acc. to EN62778	RG1

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	85 °C

Lighting technology used	LED
Non-directional or directional	DLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	GU10
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	54.00 mm
Height	50.00 mm
Width	50.00 mm
Chromaticity coordinate x	0.4578
Chromaticity coordinate y	0.4101
R9 Colour rendering index	1
Beam angle correspondence	NARROW_CONE_90
Survival factor	0.90
Displacement factor	0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1368282,1841973
Model number	AC45704,AC58002

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
