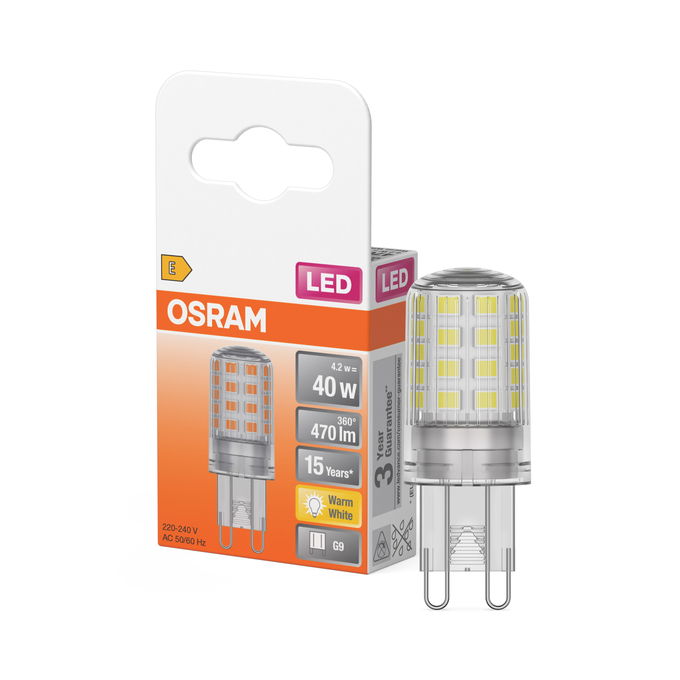

LED PIN 40 300° 4.2W 827 Clear G9

LED PIN 40 300° 4.2W 827 Clear G9

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Ideal for decorative and free-burning applications
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4058075432390
EAN: 4058075432390
GTIN: 4058075432390
MPN: 4058075432390

Price: £ 6.07 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Capabilities

Dimmable No

Electrical data

Nominal wattage 4.2 W
Construction wattage 4.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 36 mA
Inrush current 5.16 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 40
Power factor λ > 0.40

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

Declarations of conformity UKCA – LED PIN G9
Open
PRODUCT DATASHEET – PIN404.2W2700KG9en
Open
Product datasheet -> old version of product – LEDPIN40300°4.2W827Cl earG9en
Open
Product datasheet -> old version of product – LEDPIN40300°4.2W827Cl earG9en
Open

Photometric And Lighting Design Files

Spectral power distribution – 349927_2700K_Evl_5630. eps
Open
