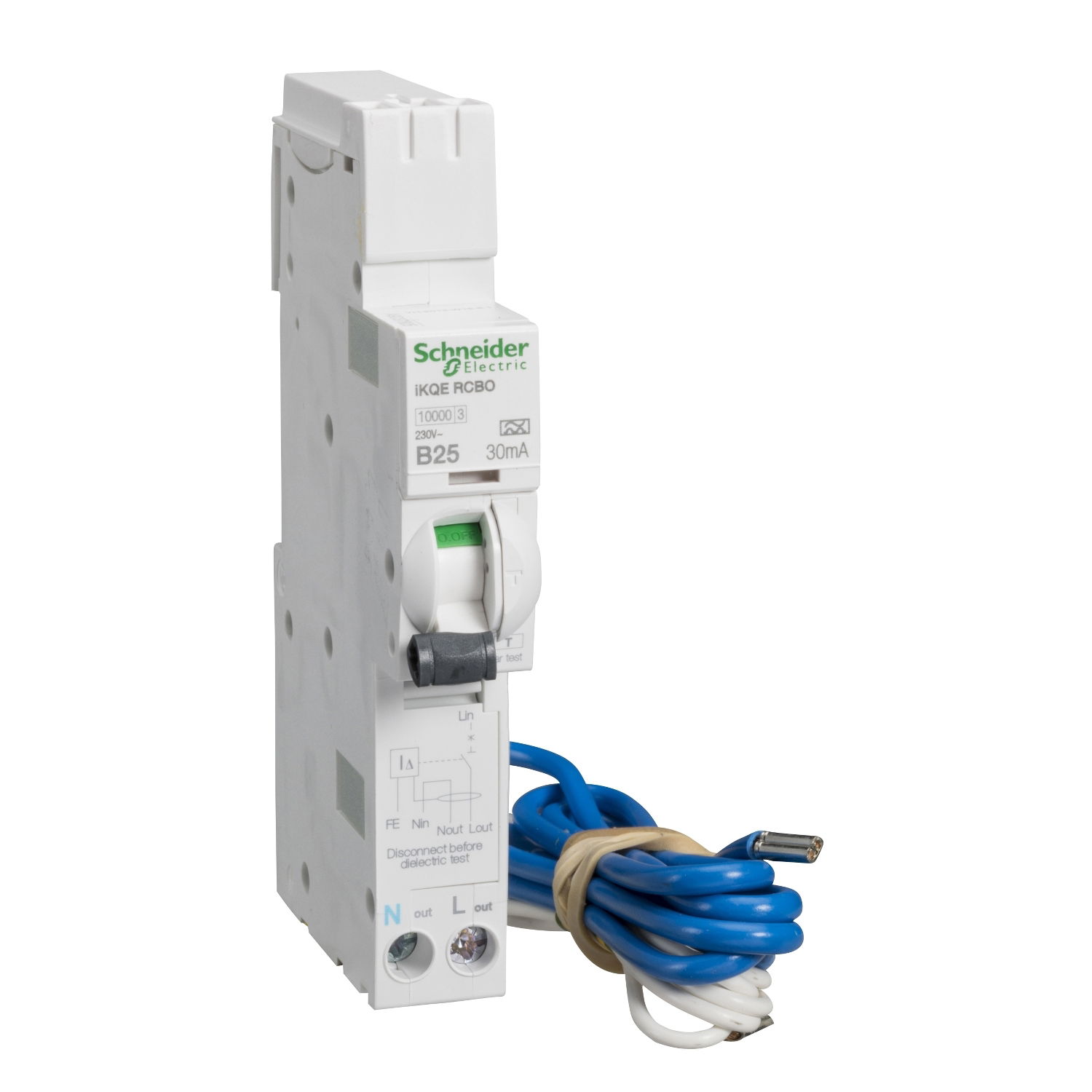

Acti9 - iKQE RCBO - 1P + Ns - 25A - B - 30mA - A Type

3x points on the Schneider Electric KQ range

Acti9 - iKQE RCBO - 1P + Ns - 25A - B - 30mA - A Type by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £147.21 excl. VAT. Voltimum+ members earn 34 points per unit.

This iKQE is a modular residual current breaker with overcurrent protection (RCBO). Other RCBO options available Fast installation with click-in busbar The Icu rated short circuit breaking capacity is up to 10kA according EN/IEC 60947-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It can be fitted instead of a miniature circuit breaker for complete protection of one circuit. This product is compliant with BS EN 61009 standard. The Ue operational voltage is 150VAC to 230VAC. It can be mounted on DIN rail for modular installation. The product color is white (RAL9003). It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.

Product identifiers

SKU: SEE125B03
EAN: 5018934965789
GTIN: 5018934965789
MPN: SEE125B03

Voltimum+ Loyalty Programme Loyalty points: 102

Price: £ 147.21 Excl. VAT

Categories

Switchgear & Circuit Protection RCBOs Circuit Breakers

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 25 A
Rated voltage 230 V
Built-in depth 50 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 4
Release characteristic B
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
