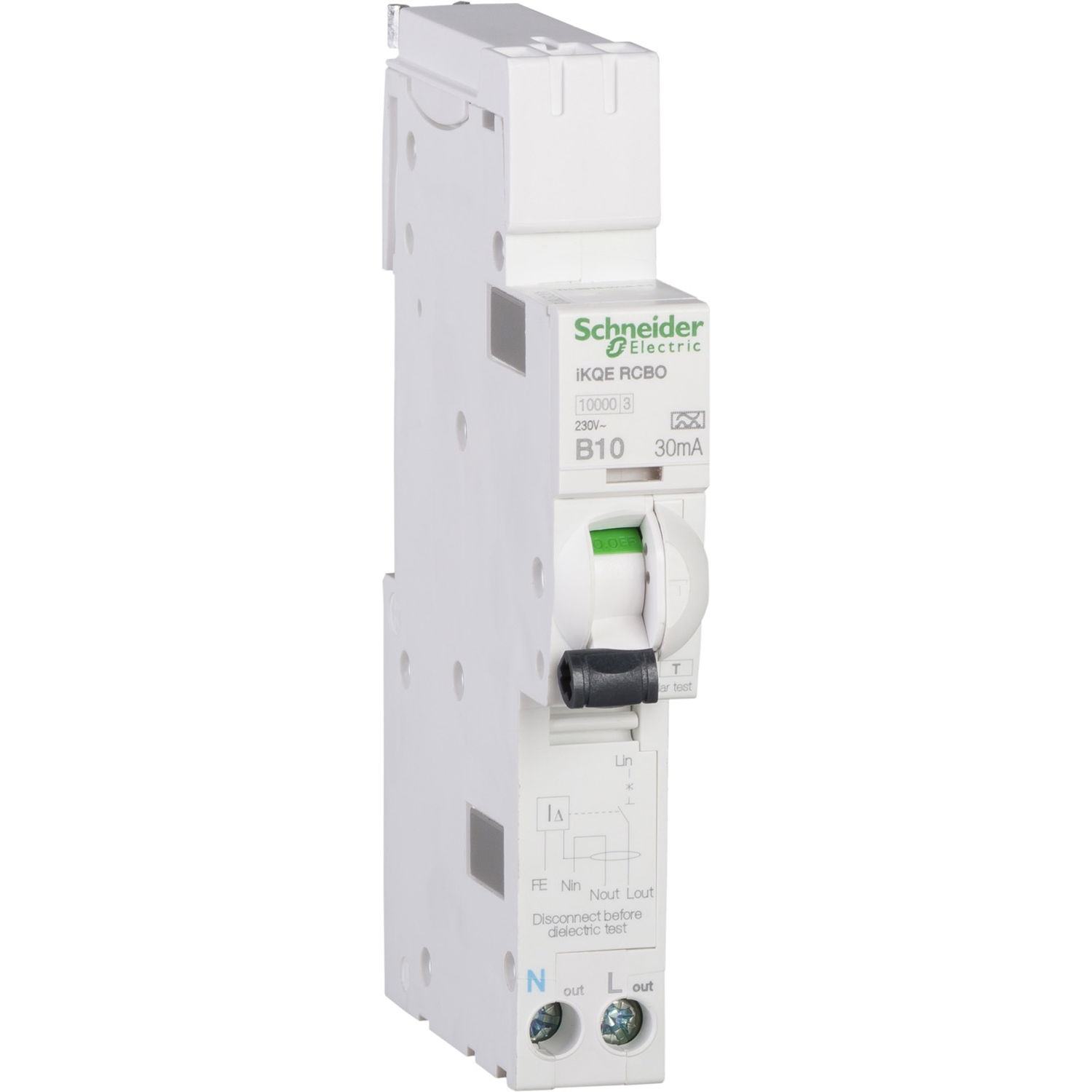

Acti9 - earth leakage circuit breaker - 1P + N - 10A - B - 30mA - 10000 A

3x points on the Schneider Electric KQ range

Acti9 - earth leakage circuit breaker - 1P + N - 10A - B - 30mA - 10000 A by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £51.01 to £147.21 excl. VAT. Voltimum+ members earn 34 points per unit.

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). Other RCBO options available Fast installation with click-in busbar The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-2-2 and IEC 61009-1 standards. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 150VAC to 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 55°C. The storage temperature is from -30°C to 70°C.

Product identifiers

SKU: SEE110B03
EAN: 5018934965758
GTIN: 5018934965758
MPN: SEE110B03

Voltimum+ Loyalty Programme Loyalty points: 102

Price range: £ 51.01 - £ 147.21 Excl. VAT

Categories

Switchgear & Circuit Protection Circuit Breakers RCBOs

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 10 A
Rated voltage 230 V
Built-in depth 50 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 3
Release characteristic B
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
