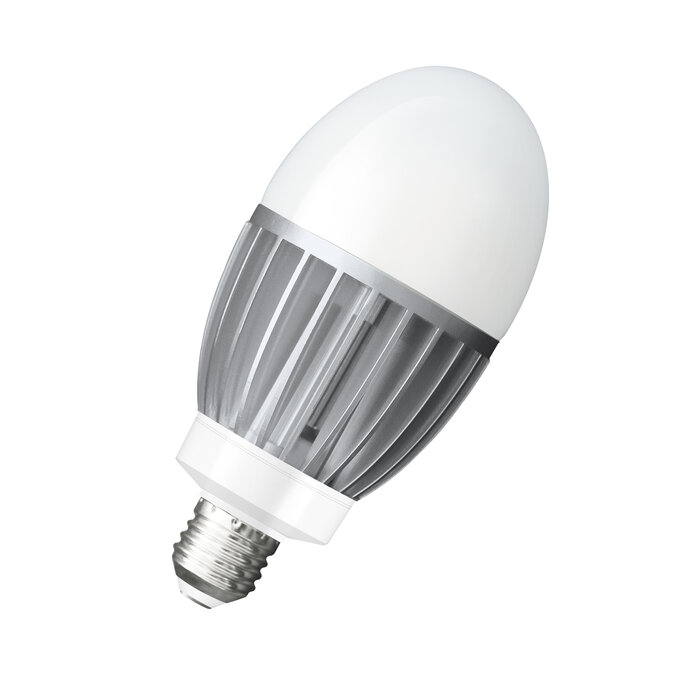

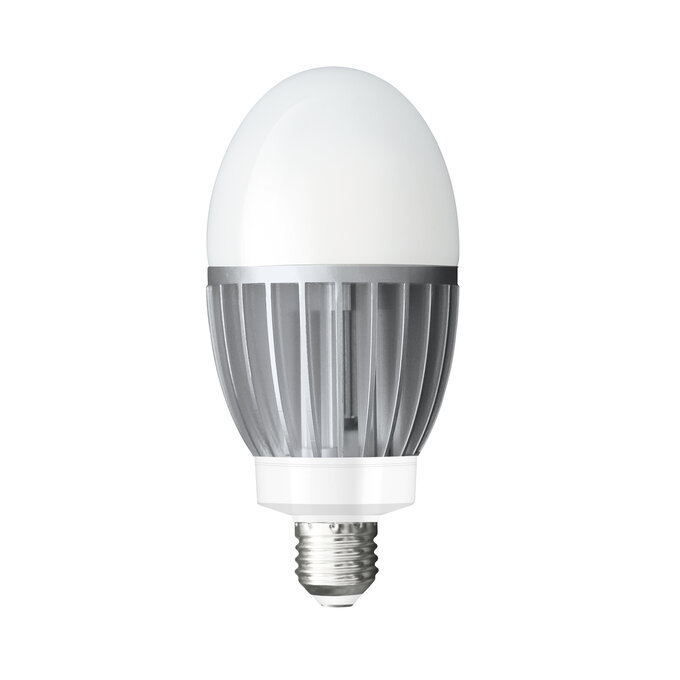

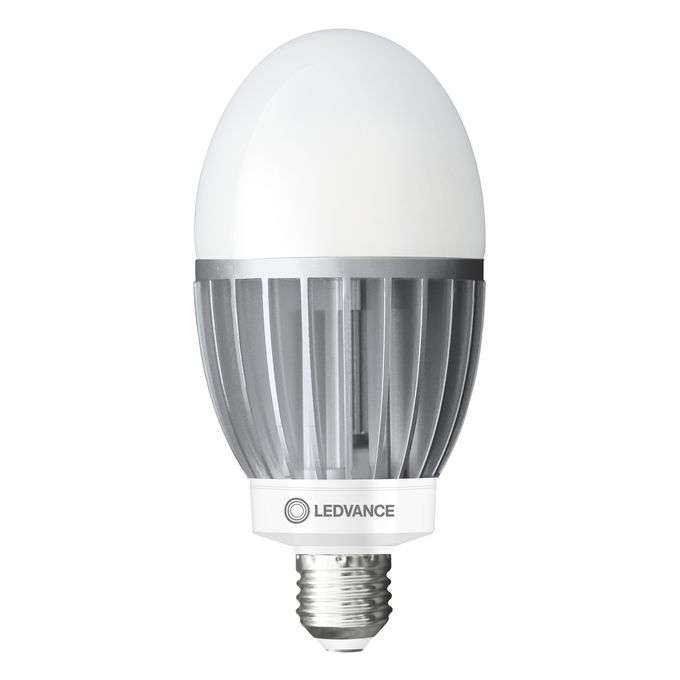

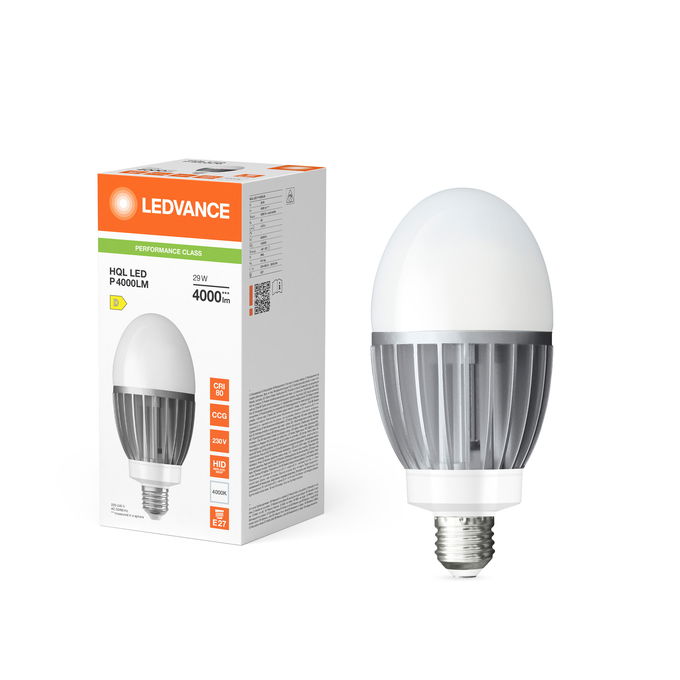

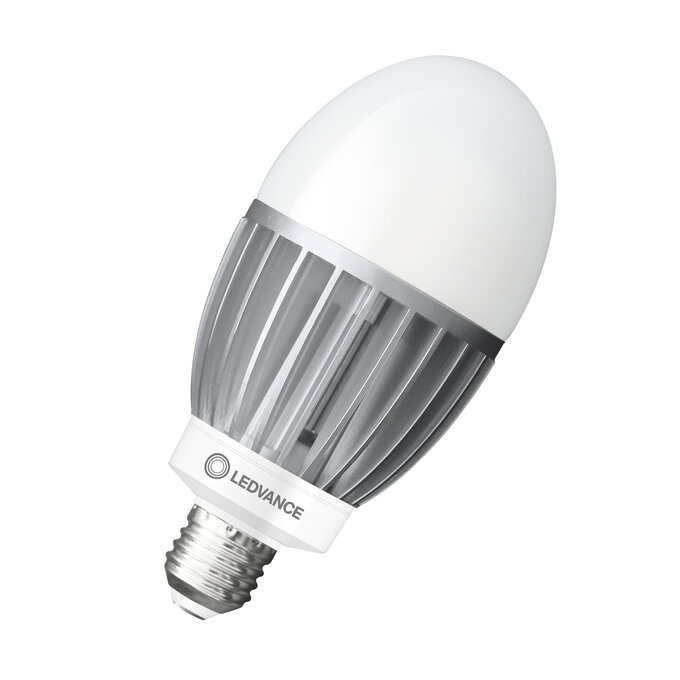

HQL LED ALU PERFORMANCE 4000LM 29W 840 E27

Product benefits

• Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
• Low maintenance costs thanks to long lifetime
• Instant 100 % light, no warm-up time

Areas of application

• Streets
• Area lighting
• Pedestrian zones
• Parks
• Outdoor applications only in suitable luminaires

Product features

• Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
• Replacement for other HID: Suitable for operation with line voltage without control gear
• Power factor: 0.9
• Type of protection: IP65
• High surge protection: up to 6 kV (L-N)
• ENEC-certified safety

Safety advice

• The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. For 90 W types the safety rope included in the packaging needs to be installed.
• Not suitable for operation with ignitors.
• Operation on the capacitor can lead to a reduction of the power factor of the system.
• When installed horizontally, the t_c point of the lamp is located on the top side of the lamp.
• Use in tight luminaires and luminaires with tight reflectors not recommended.
• All electrical connections must be made by a qualified person.
