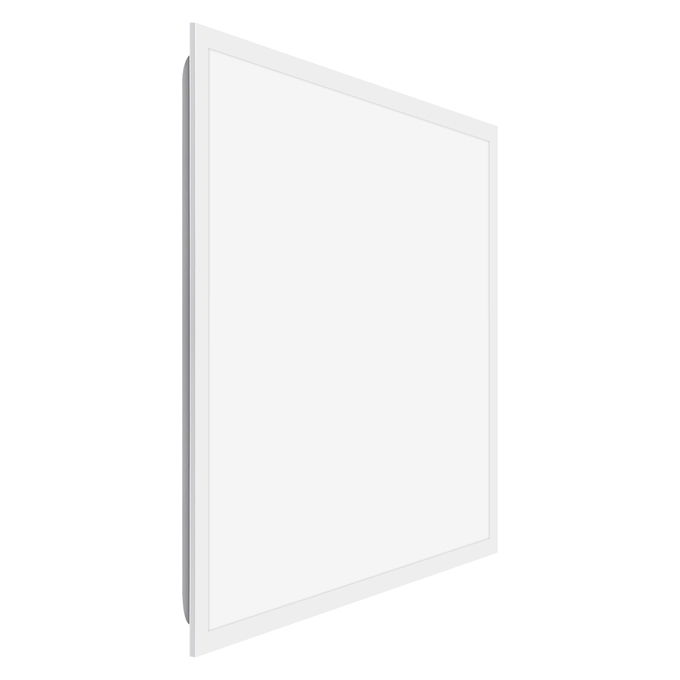

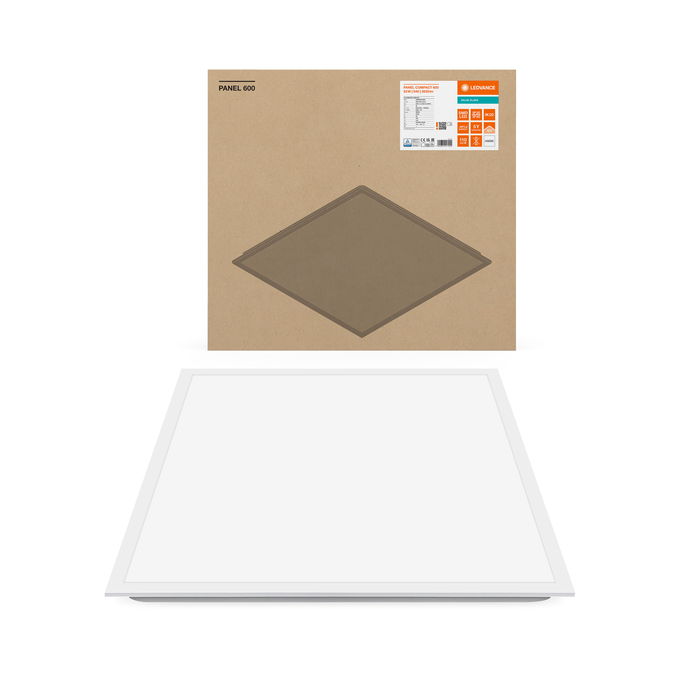

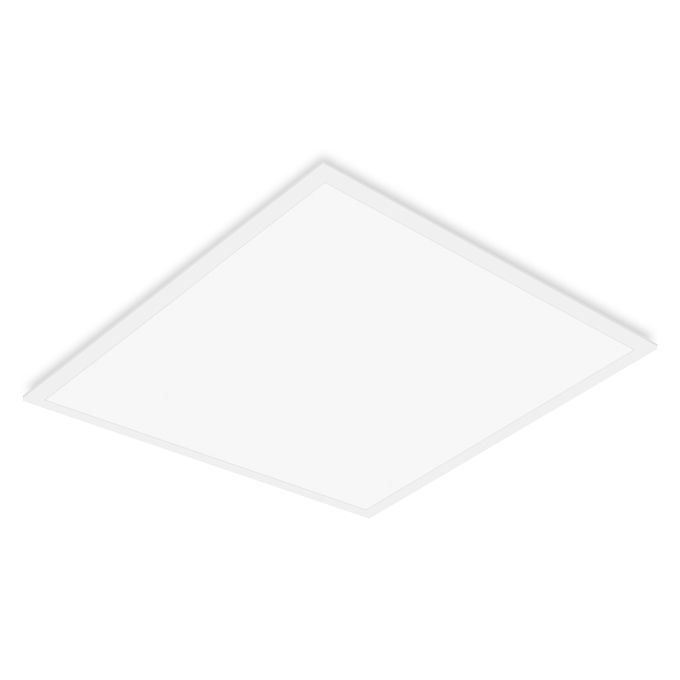

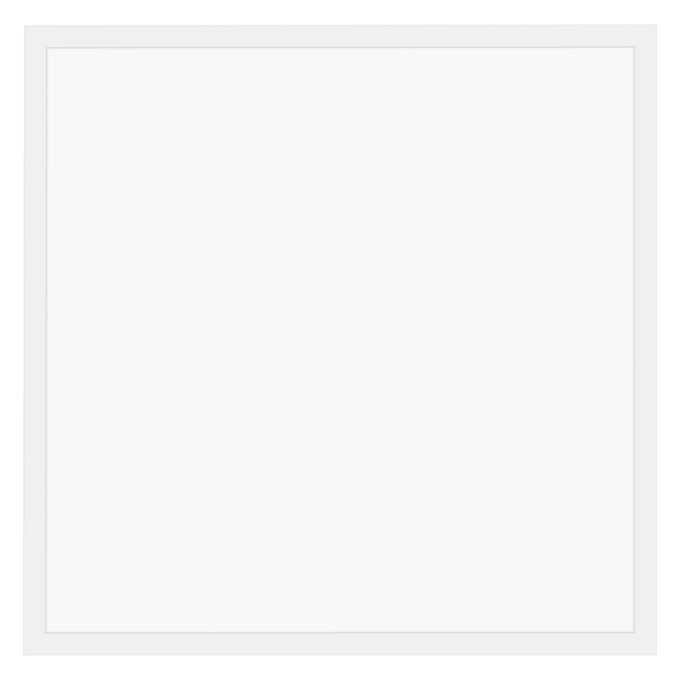

PL COMP 600 V 33W 840
1 / 12
PL COMP 600 V 33W 840
PL COMP 600 V 33W 840 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £44.40 excl. VAT.
Product benefits
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 110 lm/W
- External driver with an optional 3-pole through-wiring feature
- Versions with DALI ECG available
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled

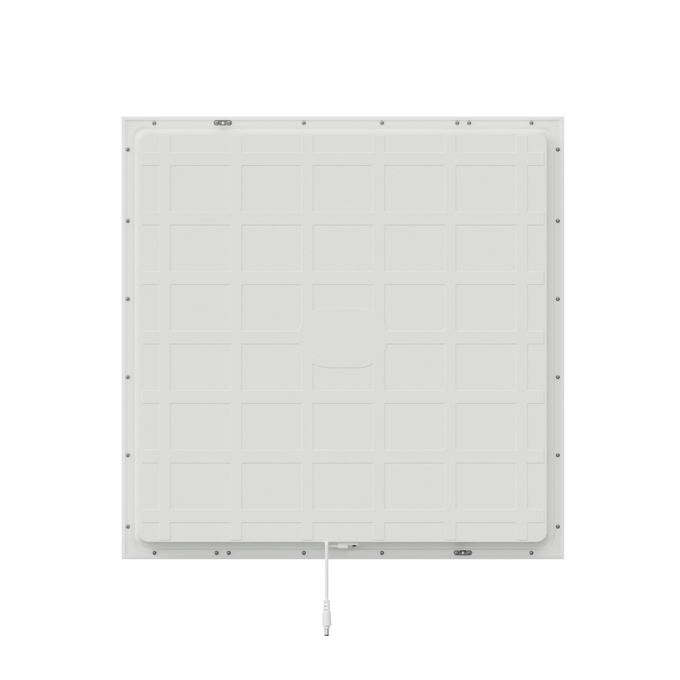

- External control gear included
- Suitable for use with separate Emergency Conversion Box
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4099854017902
EAN: 4099854017902
GTIN: 4099854017902
MPN: 4099854017902
Price: £ 44.40 Excl. VAT
ETIM group
Specifications
Electrical data
| Nominal wattage | 33.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current | 12.3 A |
| Inrush current time T h50 | 52 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 61 |
| Max. number of luminaires per miniature circuit breaker C10 | 48 |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – UI PANEL COMPACT 2CCT
Legal information – LISO Insert PL COMP 600 V
Legal information – EM Insert PL COMP
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – UKCA Declaration of Conformity PL COMP V
Certificates – PL COMP
EPD – EPD EN PANEL COMPACT DALI
