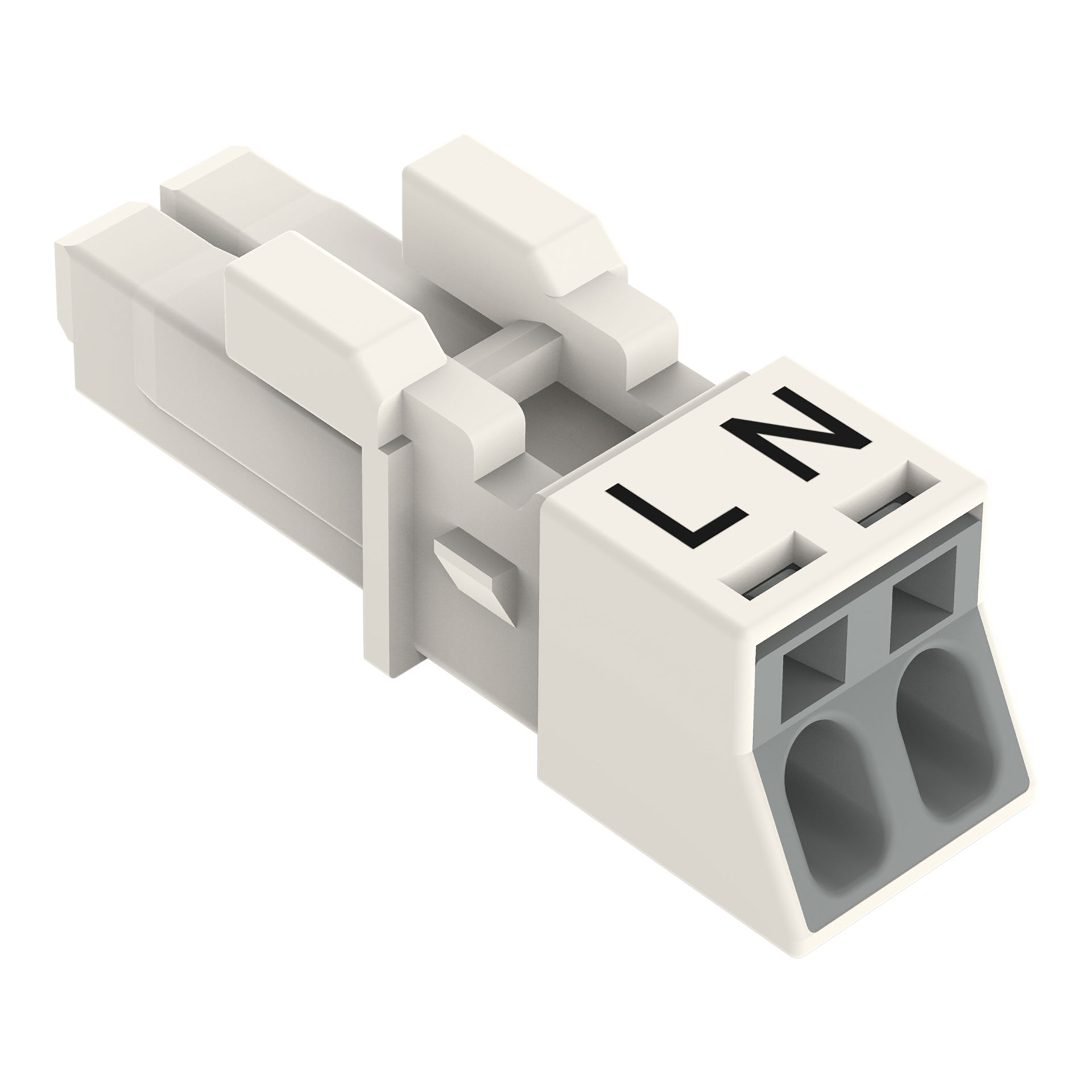

Socket 2-pole Cod. A white

Name: Socket 2-pole Cod. A white
Brand: Wago
SKU: 890-222
Availability: InStock

Socket; 2-pole; Cod. A; 1,50 mm²; white

Product identifiers

SKU: 890-222

EAN: 4055143548465

GTIN: 4055143548465

MPN: 890-222

Price: £ 1.73 Excl. VAT

Specifications

Model	Bus
Width	10.4
Height	11.7
Length	34.1
Fire load	0.00278
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter
Connection type	Spring clamp connection
Number of poles	2
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N
With strain relief	no
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	1
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
