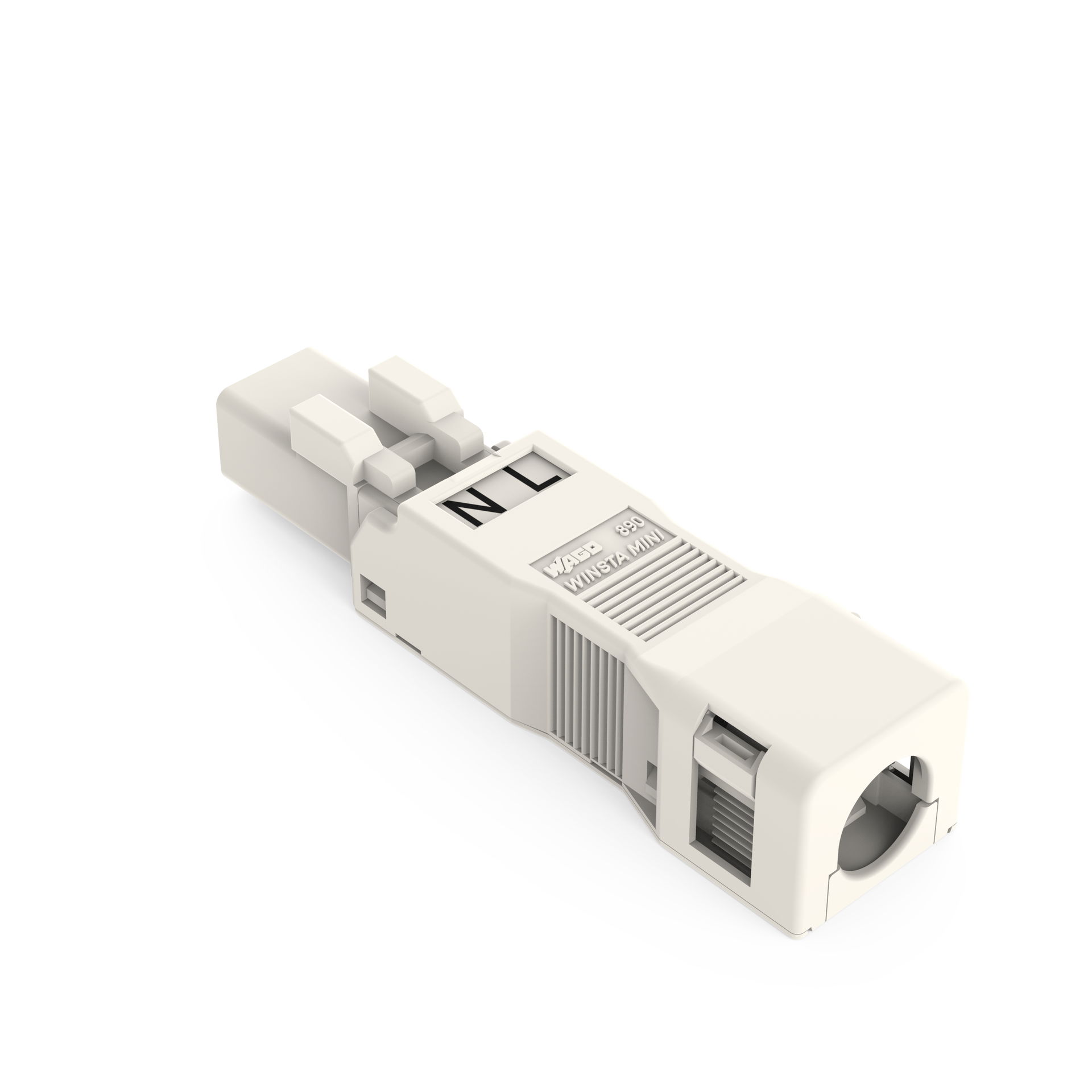

Plug with strain relief housing 2-pole white

Name: Plug with strain relief housing 2-pole white
Brand: Wago
SKU: 890-132
Availability: InStock

Plug; with strain relief housing; 2-pole; 1,50 mm²; white

Product identifiers

SKU: 890-132

EAN: 4045454233006

GTIN: 4045454233006

MPN: 890-132

Price: £ 127.00 Excl. VAT

Specifications

Model	Plug
Width	15.6
Height	13.2
Length	61.6
Fire load	0.01833
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter	3.8 - 8.2
Connection type	Spring clamp connection
Number of poles	2
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N
With strain relief	yes
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	1
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
