Philips

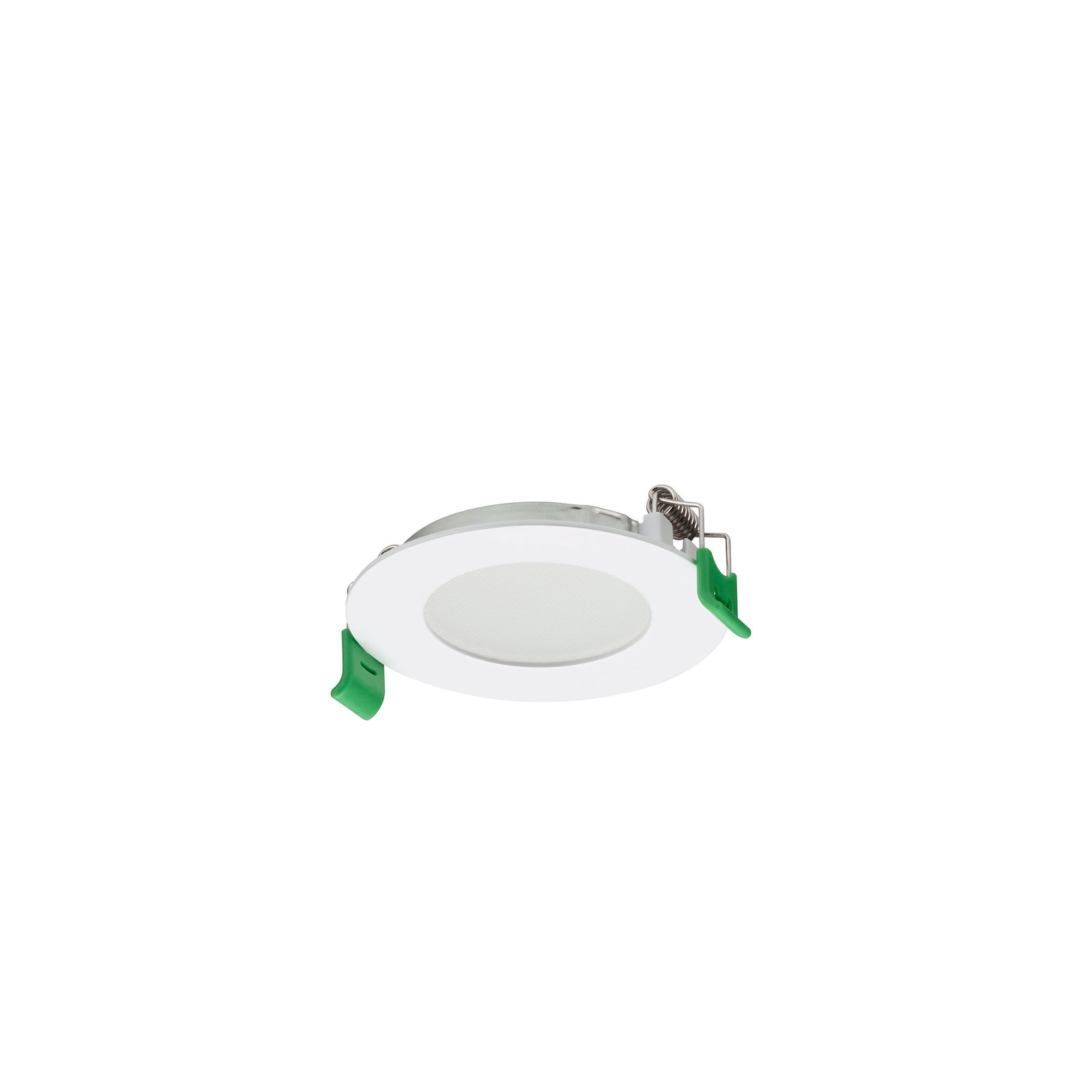

CoreLine SlimDownlight, All-in, 6.5 W, 680 lm, 700 lm, 3000 K, 4000 K, Textured, IP20/44

Aluminium die-cast, White, Signal white (RAL9003), Power supply unit external (On/Off), All-in, Multi Color Temperature, 680 lm, 700 lm, 6.5 W, 110 lm/W, 105 lm/W, 3000 K, 4000 K, (0.43,0.40) SDCM3; (0.38,0.38) SDCM3, Beam angle 90°, Symmetrical, Textured, Polycarbonate, IP20/44 | Finger-protected; wire-protected, splash-proof, IK03 | 0.3 J, Safety class II, Push-in connector 6-pole

Product identifiers

SKU: 911401816085

Price: £ 0.00 Excl. VAT

Categories

LED Downlights LED Lighting & Luminaires LED Lighting

Specifications

Cable -
CE mark Yes
Dimmable No
ENEC mark ENEC mark
Connection Push-in connector 6-pole
Optic type Beam angle 90°;Symmetrical
Inrush time 0.3 ms
Input Voltage 220 to 240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 5.7 A
Optic material Polymethyl methacrylate
Driver included Yes
Housing material Aluminium die-cast
Control interface -
Fixation material -
Power Consumption 6.5 W
Light source colour 830 warm white, 840 neutral white
Protection class IEC Safety class II
Ingress protection code IP20/44 | Finger-protected; wire-protected, splash-proof
Power Factor (Fraction) 0.9
Optical cover/lens finish Textured
Luminaire light beam spread 90°
Power consumption tolerance +/-10%
Mech. impact protection code IK03 | 0.3 J
Driver/power unit/transformer Power supply unit external (On/Off)
Luminous efficacy (rated) (nom.) 110 lm/W;105 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h L70
