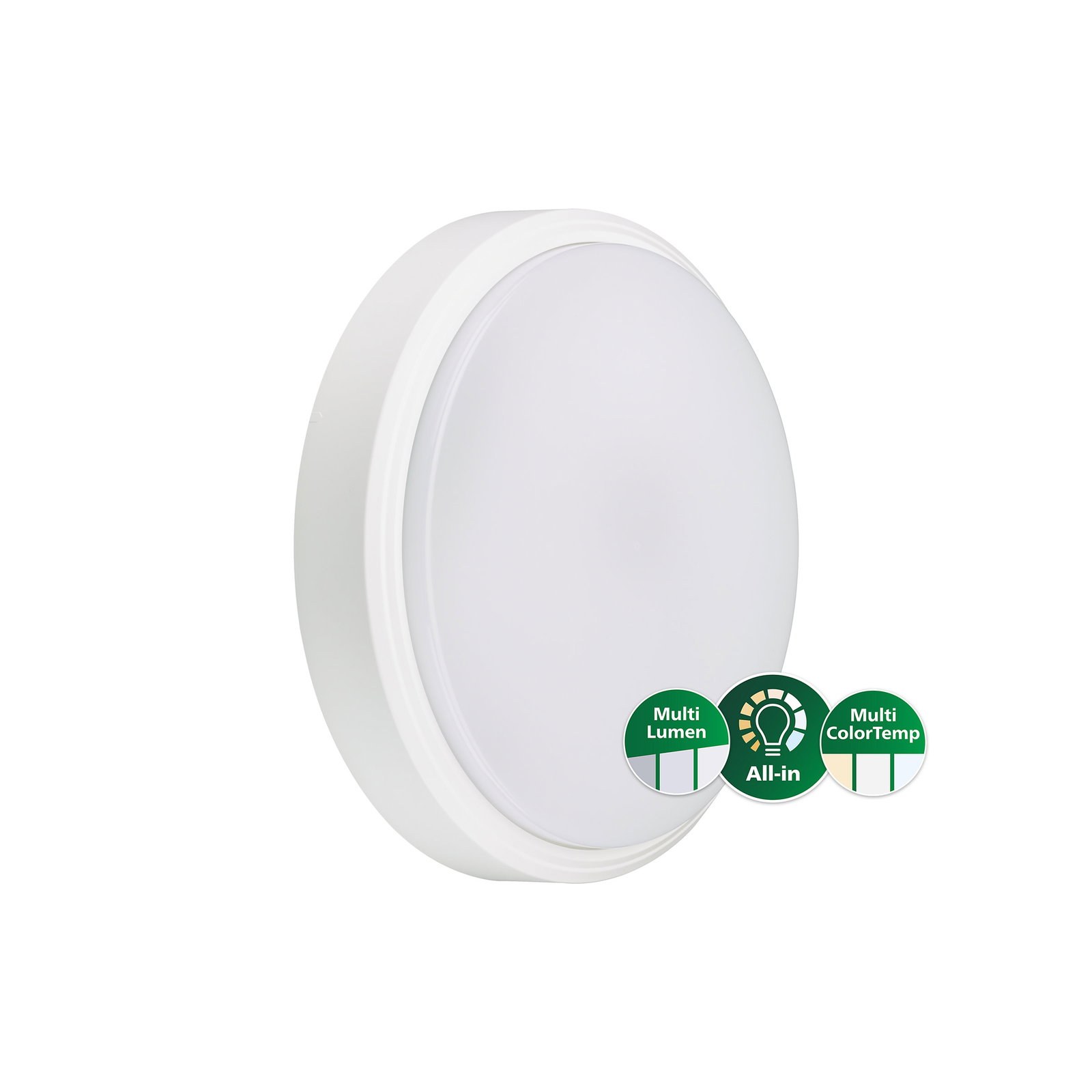

CoreLine Wall-mounted, 29 W, 4050 lm, 3600 lm, 2700 K, 3000 K, 4000 K, EL-ready
Philips

CoreLine Wall-mounted, 29 W, 4050 lm, 3600 lm, 2700 K, 3000 K, 4000 K, EL-ready

Polycarbonate, White, Signal white (RAL9003), Ceiling, Wall, Driver, All-in, Multi Color Temperature, 4050 lm, 3600 lm, 29 W, 140 lm/W, 125 lm/W, 2700 K, 3000 K, 4000 K, (0.46,0.42) SDCM3; (0.43,0.40) SDCM5; (0.38,0.38) SDCM3, Symmetrical, Opal, Polycarbonate, IP65 | Dust penetration-protected, jet-proof, IK10 | 20 J vandal-resistant, Safety class II, 2 push-in connectors 3-pole

Product identifiers

SKU: 911401874087

Price: £ 0.00 Excl. VAT

Categories

Indoor Luminaires Luminaires LED Lighting & Luminaires

Specifications

Cable -
CE mark Yes
Dimmable Yes
ENEC mark ENEC mark
Connection 2 push-in connectors 3-pole
Optic type Symmetrical
Inrush time 0.05 ms
Input Voltage 220-240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 5 A
Optic material Polymethyl methacrylate
Driver included Yes
Housing material Polycarbonate
EU RoHS compliant Yes
Flammability mark For mounting on normally flammable surfaces
Reflector material -
Initial chromaticity (0.46,0.42) SDCM<lt/>3; (0.43,0.40) SDCM<lt/>5; (0.38,0.38) SDCM<lt/>3
Constant light output No
Luminous flux tolerance +/-10%
Ambient temperature range -20 to +40 °C
Luminaire light beam spread 120°
Power consumption tolerance +/-10%
Mech. impact protection code IK10 | 20 J vandal-resistant
Suitable for random switching No
Correlated Colour Temperature (Nom) 2700 K;3000 K;4000 K
