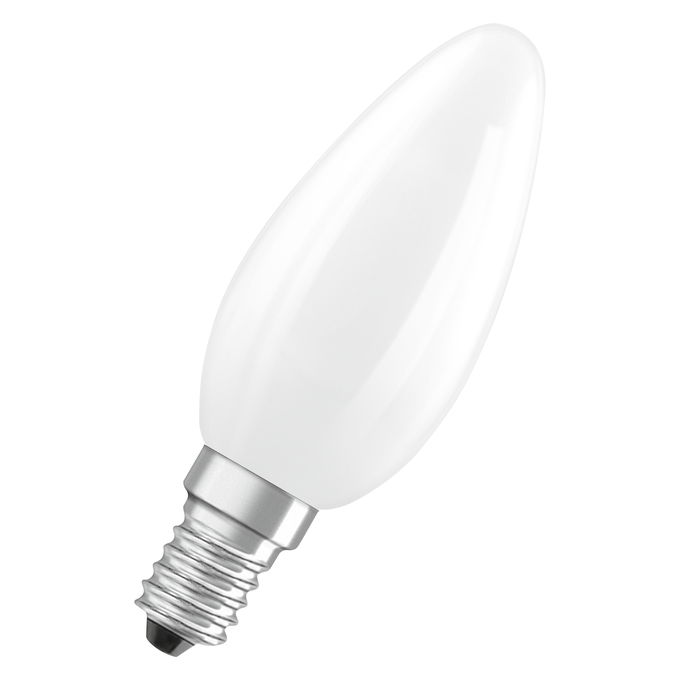

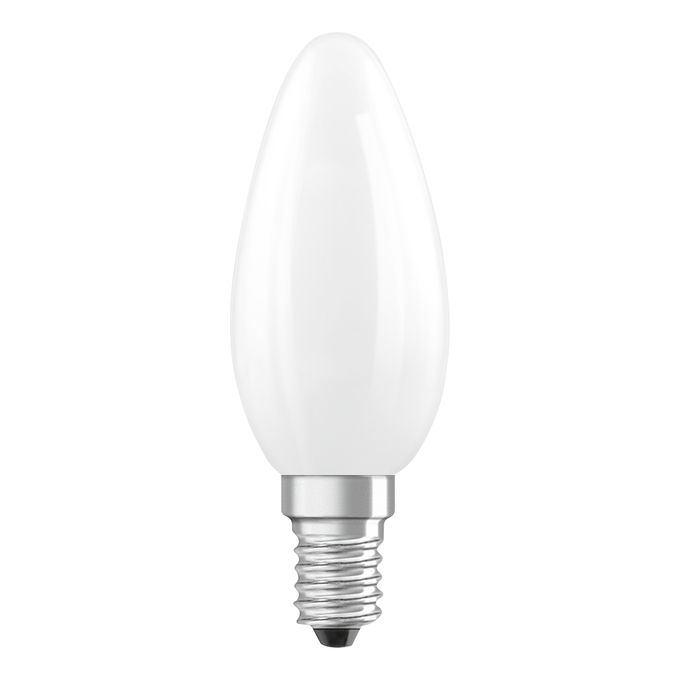

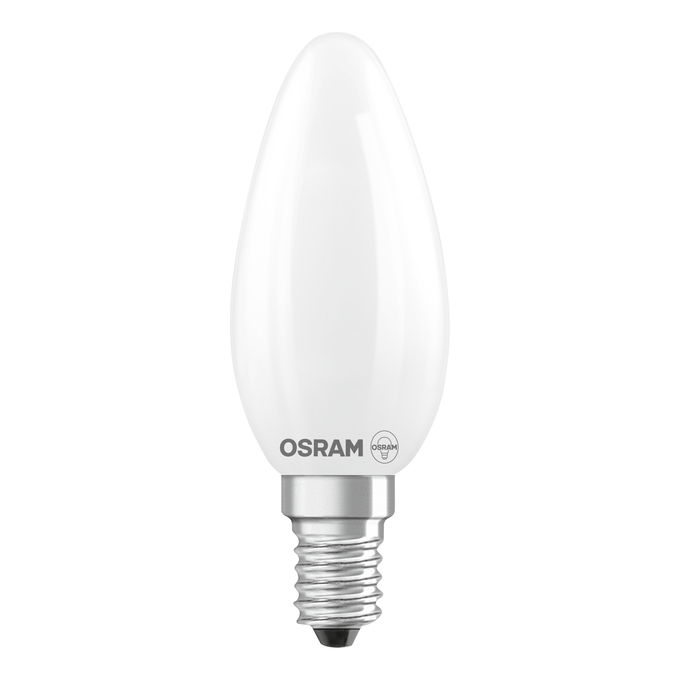

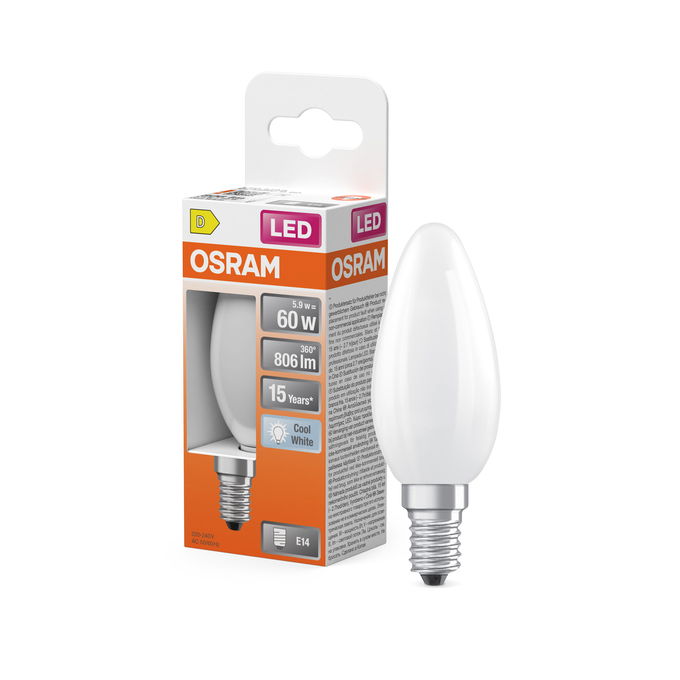

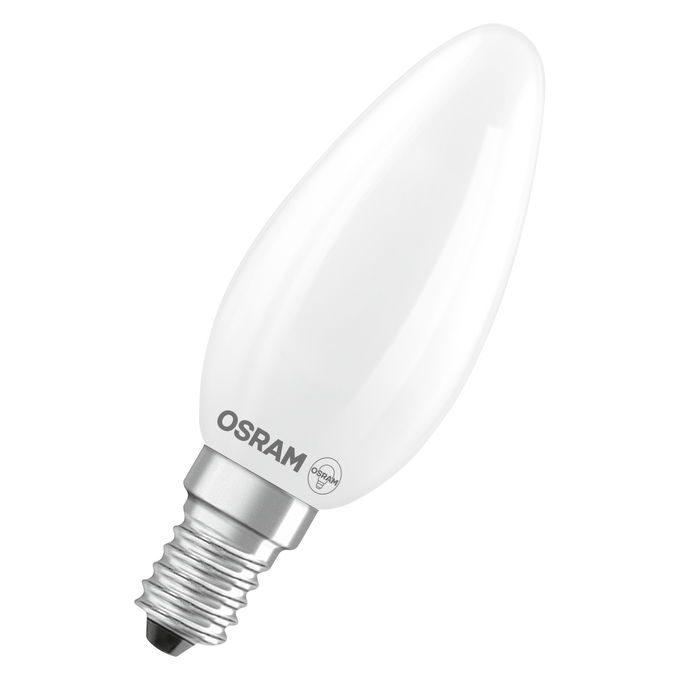

LED Star Classic B 60 Filament 5.9W 840 Frosted E14

1 / 5

LED Star Classic B 60 Filament 5.9W 840 Frosted E14

Product benefits

Lamps with innovative LED "filament" technology
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Lower thermal output (compared with the standard reference product)
Can be easily fitted instead of ordinary light bulbs
Lower energy consumption than incandescent or halogen lamps

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

Professional LED lamps for line voltage
Not dimmable
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity
Lifetime up to 15,000 h
Lamp made of glass

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4099854116339

EAN: 4099854116339

GTIN: 4099854116339

MPN: 4099854116339

Specifications

Electrical data

Nominal wattage	5.9 W
Construction wattage	5.90 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	60 W
Nominal current	38 mA
Type of current	AC
Inrush current	1.18 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	184
Max. lamp number on MCB B16 A	219
Total harmonic distortion	111 %
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED lamps

Open

Declarations of conformity UKCA – LED lamps

Open

Product datasheet -> old version of product – LEDStarClassicB60Filam ent5.9W840FrostedE14en

Open

Product datasheet -> old version of product – LEDStarClassicB60Filam ent5.9W840FrostedE14en

Open

Product Images And Graphics

Product image: white background, diagonal with OSRAM logo – LED CLASSIC B E14

Open

Product image: white background, diagonal – LED CLASSIC B E14

Open

Product image: white background, upright, OSRAM logo – LED CLASSIC B E14

Open

Product image: white background, upright – LED CLASSIC B E14

Open

Product line drawing with letters – LED CLASSIC B E14

Open

Product line drawing with numbers – LED CLASSIC B E14

Open

Product line drawing - technical – LED CLASSIC B E14

Open

Combo Shot = Product Beauty Shot + Packaging Image – LED ST CLB 60 5.5W 840 GLFR E14 MiCh

Open

Packaging image, frontal – LED ST CLB 60 5.5W 840 GLFR E14 MiCh

Open

Packaging image, spacial – LED ST CLB 60 5.5W 840 GLFR E14 MiCh

Open

Energy Label 2021 UK – EL-4099854116339-AC452 22

Open

Energy Label 2021 UK – EL-4099854116339-AC701 89

Open

Energy Label 2021 UK – EL-4099854116339-AC926 57

Open

Luminous flux	806 lm
Luminous efficacy	136 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1.0
Stroboscope effect metric (SVM)	≤0.4

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	100.00 mm
Diameter	35.00 mm
Maximum diameter	35 mm
Product weight	16.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93

Base (standard designation)	E14
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	D 1)
Energy consumption	6.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG1

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E14
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	100.00 mm
Height	35.00 mm
Width	35.00 mm
Chromaticity coordinate x	0.3818
Chromaticity coordinate y	0.3797
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	> 0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1361324,2182599,2506915
Model number	AC45222,AC70189,AC92657

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
