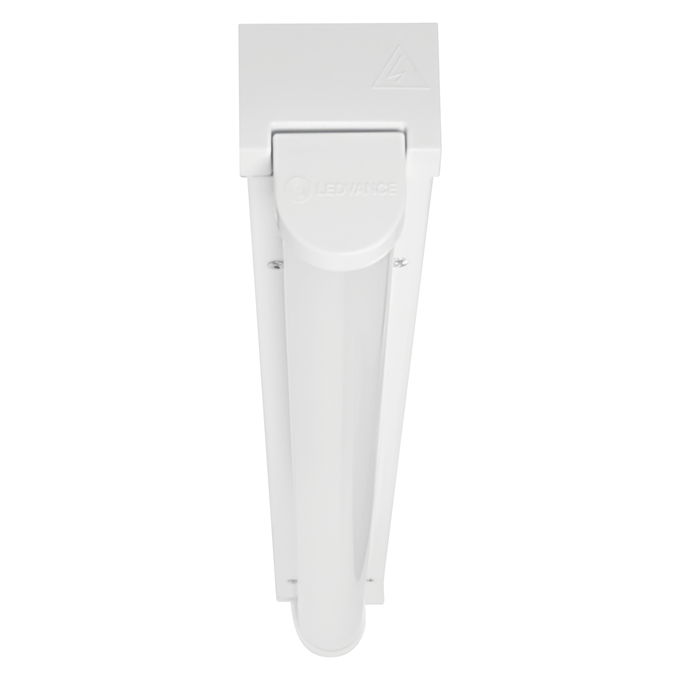

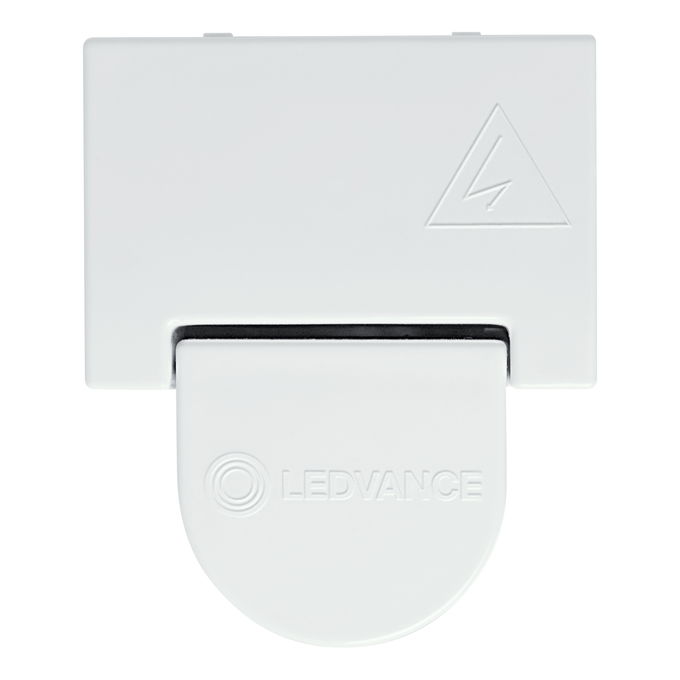

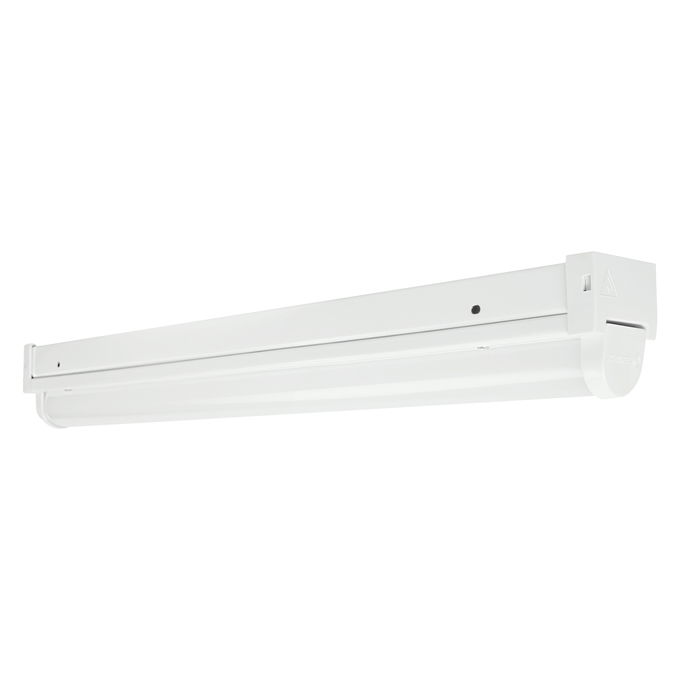

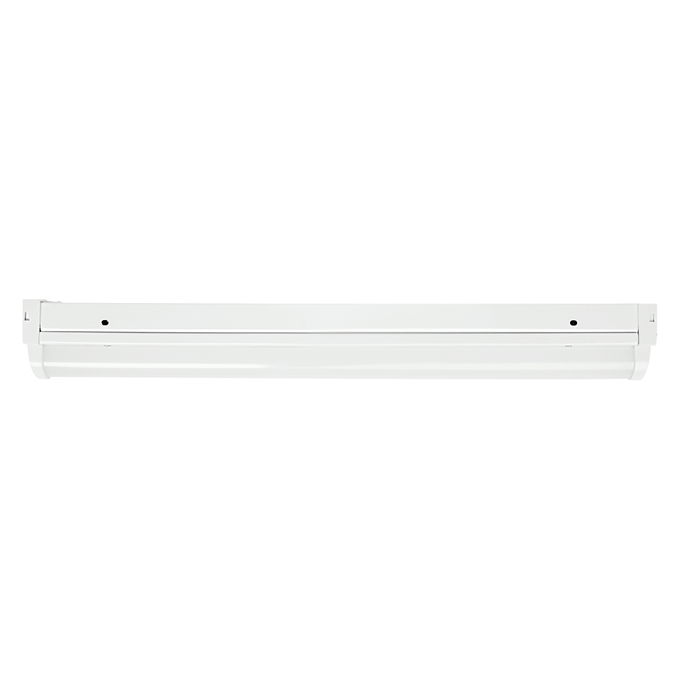

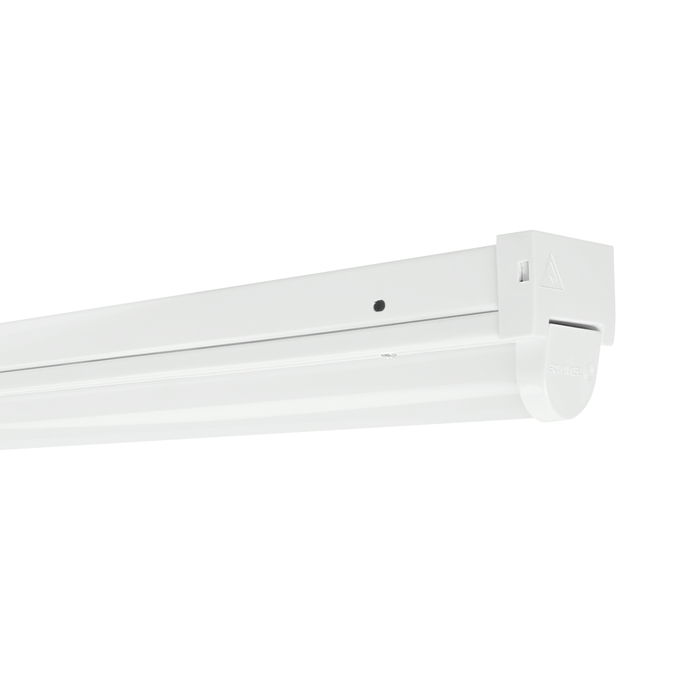

LN UO DA 600 P 21W 83040 WT
Product benefits
- Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
- DALI based light management system integrable into building management systems
- Integrated DALI-2 driver for extended functionalities
- SMD LEDs are moisture-proof and corrosion-proof thanks to tri-proof coating
- Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- Easy installation and versatile application
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- DALI-2 certified
- DALI/Touch DIM® control signal
- Three-proof coating to improve the protection of the SMD LEDs
- Very high luminous efficacy: up to 150 lm/W
- Robust metal housing and PC diffuser
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4058075850378
EAN: 4058075850378
GTIN: 4058075850378
MPN: 4058075850378
Price: £ 0.00 Excl. VAT
Categories
ETIM Group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 88000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Number of switching cycles | 100000 |
Control gear
| Output current | 230 mA |
| ECG - Output ripple current | < 5 % |
Electrical data
| Nominal wattage | 21.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
