Modular timing relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC

Name: Modular timing relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC
Brand: Schneider Electric
SKU: RE48AML12MW
Availability: InStock

Modular timing relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £106.15 to £107.21 excl. VAT. Voltimum+ members earn 13 points per unit.

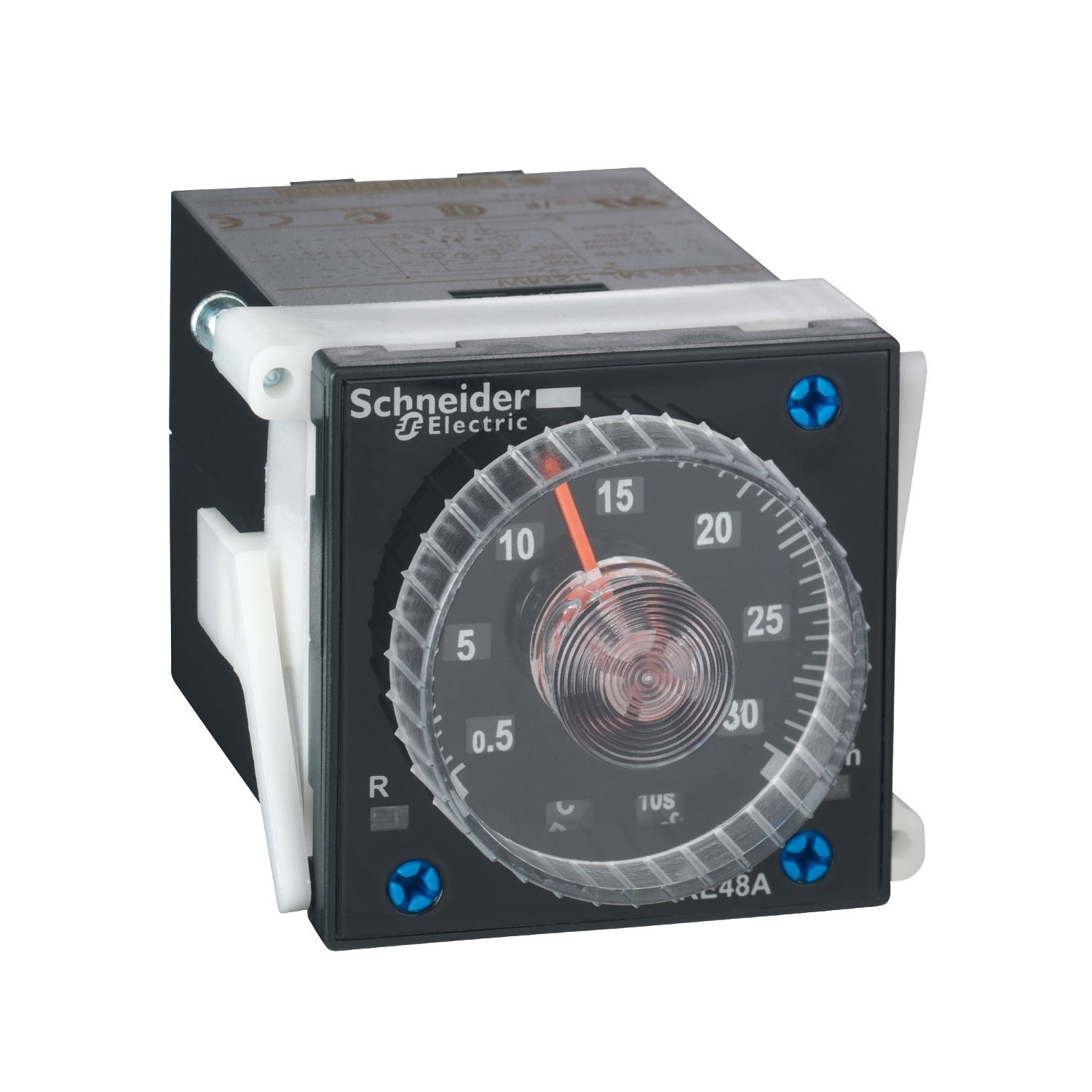

This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RE48AML12MW

EAN: 3389110649598

GTIN: 3389110649598

MPN: RE48AML12MW

Loyalty points: 13

Price range: £ 106.15 - £ 107.21 Excl. VAT

Specifications

Depth	80 mm
Width	48 mm
Height	48 mm
Time range
Nominal current	5 A
Material contact	-
Function star-delta	no
Complete with socket	no
Operating voltage DC
Max. starting current	-
Function pulse shaping	yes
Degree of protection (IP)	-
Remote operation possible	no
With semiconductor output	no
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Suitable as remote control	no
Voltage type for actuating	AC/DC
Material of contact surface	-
Suitable for front mounting	-
Type of electric connection	Screw connection
Function delay-on energization	yes
Rated control supply voltage DC
Voltage type (operating voltage)	-
Function delay on de-energization	yes
Pluggable on auxiliary contact block	no
Outputs, reversible delayed/undelayed	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Function floating contact on energization	no
Function floating contact on de-energization	no
Clock function, starting with pause, variable	no
Clock function, starting with pulse, variable	no
Suitable for DIN rail (top hat rail) mounting	no
Number of outputs, delayed, change-over contact	2
Number of outputs, delayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Function flashing, starting with pause, fixed time	yes
Function flashing, starting with pulse, fixed time	yes
Relay technology category according to IEC 61810-7	-
Number of outputs, delayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, normally closed contact	0
