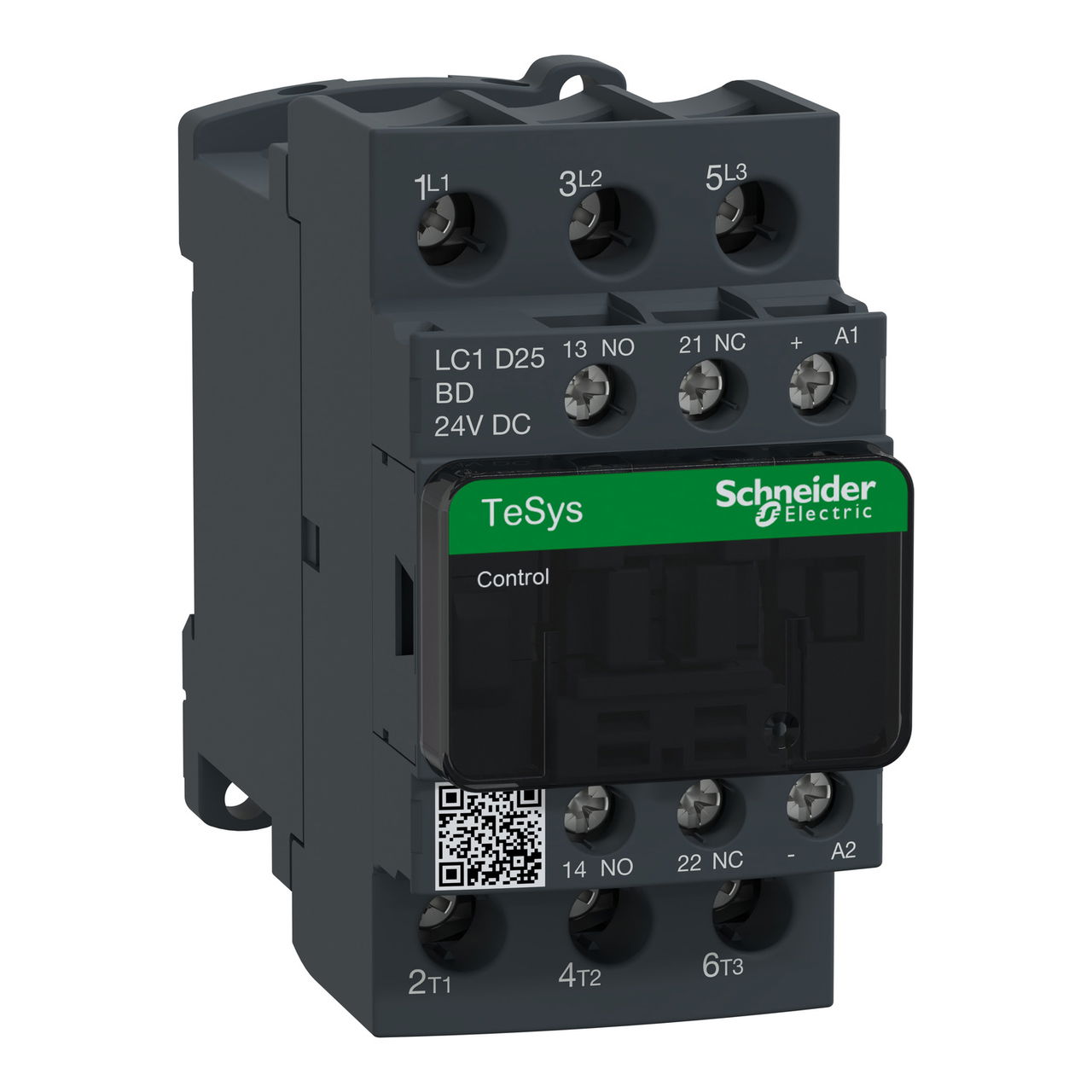

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 24 V DC coil
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D25BD
EAN: 3389110355994
GTIN: 3389110355994
MPN: LC1D25BD
Loyalty points:
54
Price range: £ 84.71 - £ 132.65 Excl. VAT
Categories
Features
|
Depth
|
101 mm
|
|
Width
|
45 mm
|
|
Height
|
85 mm
|
|
Modular version
|
no
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
-
|
|
Voltage type for actuating
|
DC
|
|
Rated control supply voltage DC
|
|
|
Rated operation power at AC-3, 400 V
|
11 kW
|
|
Rated operation power at AC-4, 400 V
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
40 A
|
|
Rated operation current Ie at AC-3, 400 V
|
25 A
|
|
Rated operation current Ie at AC-4, 400 V
|
-
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
1
|
|
Number of auxiliary contacts as normally closed contact
|
1
|
